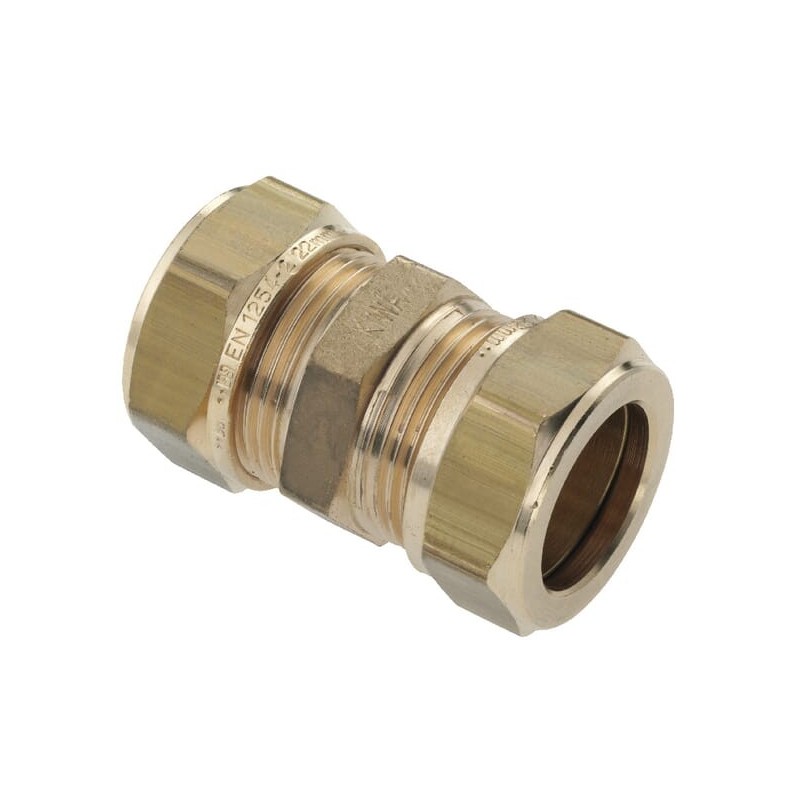

      Compression 15x15mm - 82530
      Compression 15x15mm - 82530

      Compression 15x15mm - 82530

      Review (0)
      zł28.31
      Tax Included
      Return policy:14
      Compression 15x15mm - 82530 - Capped: No, Nie; Connection 1: Cutting ring, Pierścień zacinający.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Compression 15x15mm - 82530

      Reference number: 82530.

      Product parameters:

      • Capped: No, Nie
      • Connection 1: Cutting ring, Pierścień zacinający
      • Connection 2: Cutting ring, Pierścień zacinający
      • High tensile strength: Yes, Tak
      • Manufacturer Product ID: 82530
      • Material: Brass, Mosiądz
      • Material connection 1: Brass, Mosiądz
      • Material connection 2: Brass
      • Material quality connection 1: CuZn40Pb2 (CW617N)
      • Material quality connection 2: CuZn40Pb2 (CW617N)
      • Max. operating pressure at 20 °C: 16, 16BAR
      • Max. operating pressure at max. medium temperature: 16
      • Medium temperature (continuous): -20.0, -20.0°C
      • Model: 1-part
      • Nominal diameter connection 1: DN 12
      • Nominal diameter connection 2: DN 12
      • Outer pipe diameter connection 1: 15, 15mm
      • Outer pipe diameter connection 2: 15mm, 15
      • Sealing material: Metal
      • Shape: Straight, Proste
      • Surface protection connection 1: None
      • Surface protection connection 2: None
      • Surface treatment connection 1: None
      • Surface treatment connection 2: None
      • With sealing rings/gaskets: No
      • Wrench/spanner size: 24, 24mm
      • Wrench/Spanner width: 22, 22mm
      Bonfix
      82530
      100 Items

      Data sheet

      Material
      Brass
      Brass
      Mosiądz
      Wrench/spanner size
      24
      24mm
      Model
      1-part
      Manufacturer Product ID
      82530
      Connection 1
      Cutting ring
      Pierścień zacinający
      Connection 2
      Cutting ring
      Pierścień zacinający
      Shape
      Proste
      Straight
      Max. operating pressure at 20 °C
      16
      16BAR
      Sealing material
      Metal
      Outer pipe diameter connection 1
      15
      15mm
      Material connection 1
      Brass
      Mosiądz
      Material connection 2
      Brass
      Nominal diameter connection 2
      DN 12
      Wrench/Spanner width
      22
      22mm
      Nominal diameter connection 1
      DN 12
      Outer pipe diameter connection 2
      15
      15mm
      Max. operating pressure at max. medium temperature
      16
      Medium temperature (continuous)
      -20.0
      -20.0°C
      Capped
      Nie
      No
      High tensile strength
      Tak
      Yes
      Surface protection connection 1
      None
      Surface protection connection 2
      None
      Material quality connection 1
      CuZn40Pb2 (CW617N)
      Surface treatment connection 1
      None
      Material quality connection 2
      CuZn40Pb2 (CW617N)
      Surface treatment connection 2
      None
      With sealing rings/gaskets
      No
