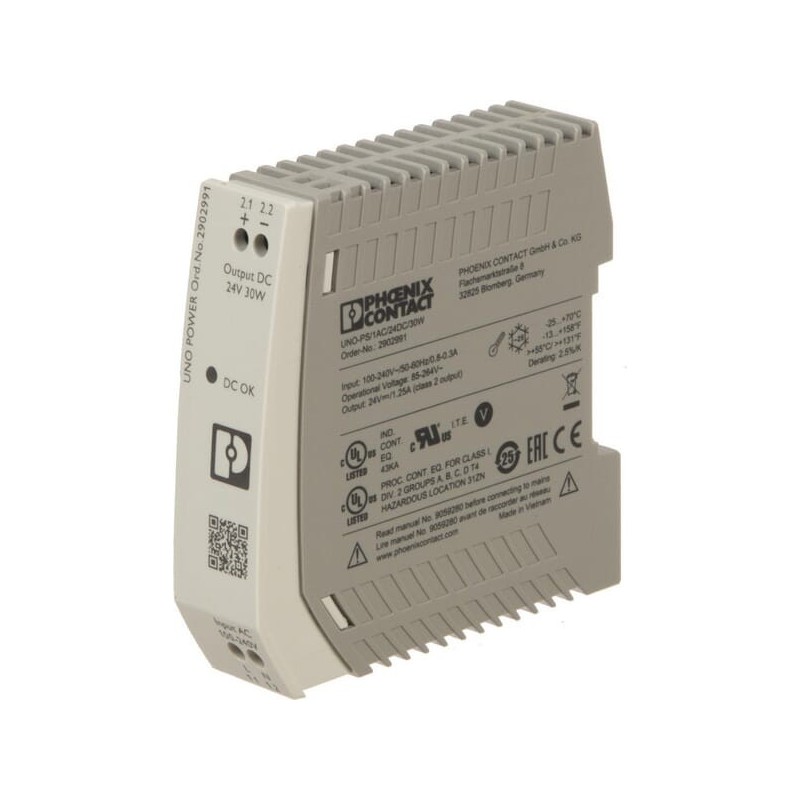

      Power supply - UNOPS1AC24DC30W
      Power supply - UNOPS1AC24DC30W
      Power supply - UNOPS1AC24DC30W

      Power supply - UNOPS1AC24DC30W

      Review (0)
      zł357.82
      Tax Included
      Return policy:14
      Power supply - UNOPS1AC24DC30W - 1st secondary output voltage: 24-24V; 2nd secondary output voltage: 24-24V.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Power supply - UNOPS1AC24DC30W

      Reference number: UNOPS1AC24DC30W.

      Product parameters:

      • 1st secondary output voltage: 24-24V
      • 2nd secondary output voltage: 24-24V
      • Additional info: Bezpiecznik na wejściu: wbudowany 2.0A (zwłoczny, wewnętrzny)
      • Built-in height: 90mm
      • Depth: 84mm
      • Direct mounting possible: Nie
      • Height: 90mm
      • Insulation class: 20
      • Manufacturer Product ID: 2902991
      • Max. output current 1: 1,3A
      • Modular version: Nie
      • Nominal value output current 1: 1,2A
      • Nominal value output voltage 1: 24
      • Output power: 30W
      • Output voltage stabilised: Tak
      • Power consumption: 72,1VA
      • Rail mounting possible: Tak
      • Rated supply voltage at AC 50 Hz: 85-264V
      • Rated supply voltage at AC 60 Hz: 85-264V
      • Secondary voltage adjustable: Nie
      • Short-circuit-proof: Tak
      • SIL according to IEC 61508: None
      • Stabilised: Tak
      • Suitable for safety functions: Tak
      • Type of electric connection: Połączenie śrubowe
      • Voltage type of supply voltage: AC
      • Wall mounting possible: Nie
      • Width: 22,5mm
      • Width in number of modular spaces: 1,3
      Phoenix Contact
      UNOPS1AC24DC30W
      11 Items

      Data sheet

      Width
      22,5mm
      22.5
      Height
      90
      90mm
      Additional info
      Input fuse: integrated 2.0 A (slow-blow, internal)
      Depth
      84
      84mm
      Power consumtion
      72.1
      Insulation class
      20
      20
      Type of electric connection
      Połączenie śrubowe
      Screw connection
      Manufacturer Product ID
      2902991
      Nominal value output voltage 1
      24
      24
      Output power
      30
      30W
      Suitable for safety functions
      Tak
      Yes
      Modular version
      Nie
      No
      Voltage type of supply voltage
      AC
      AC
      Width in number of modular spacings (mm)
      1.3
      SIL according to IEC 61508
      None
      None
      Rail mounting possible
      Tak
      Yes
      1st secondary output voltage
      24-24
      24-24V
      Max. output current 1
      1,3A
      1.25
      Secondary voltage adjustable
      Nie
      No
      Short-circuit-proof
      Tak
      Yes
      Rated supply voltage at AC 50 Hz
      85-264
      85-264V
      Rated supply voltage at AC 60 Hz
      85-264
      85-264V
      Wall mounting possible
      Nie
      No
      Built-in height
      90
      90mm
      Nominal value output current 1
      1.2
      Output voltage stabilised
      Tak
      Yes
      Stabilised
      Tak
      Yes
      Direct mounting possible
      Nie
      No
      Performance level acc. EN ISO 13849-1
      n/a
      2nd secondary output voltage
      24-24
      24-24V

      Specific References
