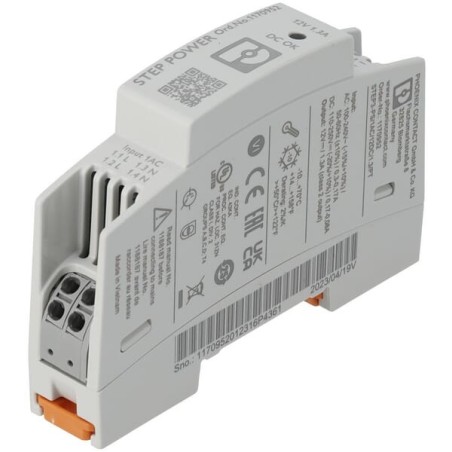

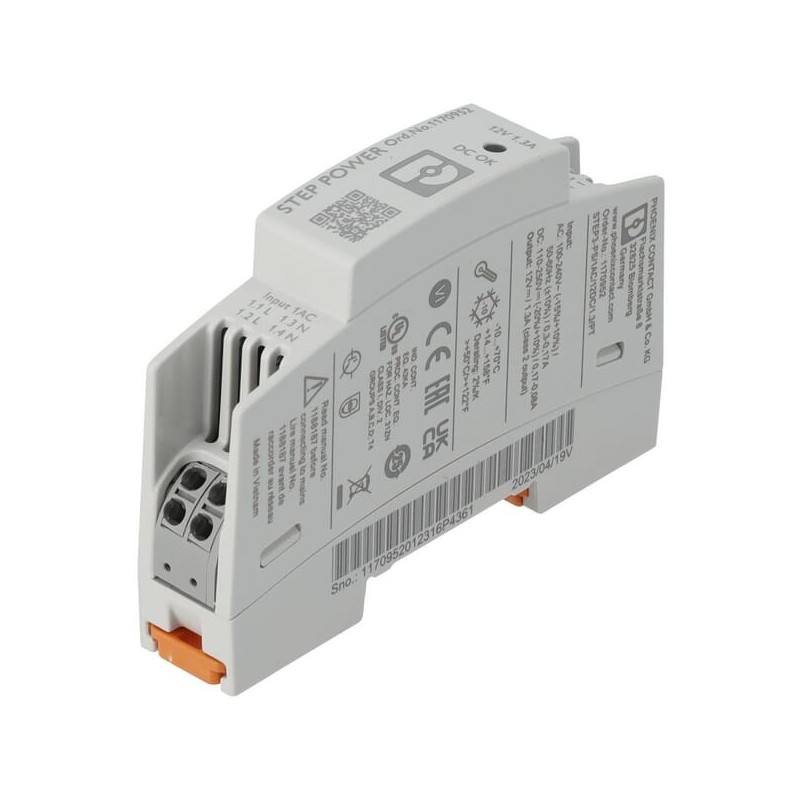

      Power supply - STEP3PS1AC12DC13PT
      Power supply - STEP3PS1AC12DC13PT
      Power supply - STEP3PS1AC12DC13PT

      Power supply - STEP3PS1AC12DC13PT

      Review (0)
      zł255.38
      Tax Included
      Return policy:14
      Power supply - STEP3PS1AC12DC13PT - Built-in height: 90mm; Built-in width: 18mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Power supply - STEP3PS1AC12DC13PT

      Reference number: STEP3PS1AC12DC13PT.

      Product parameters:

      • Built-in height: 90mm
      • Built-in width: 18mm
      • Depth: 61mm
      • Direct mounting possible: Tak
      • Height: 90mm
      • Insulation class: 20
      • Manufacturer Product ID: 1170952
      • Max. output current 1: 1,3A
      • Modular version: Nie
      • Nominal value output current 1: 1,3A
      • Nominal value output voltage 1: 12
      • Output power: 15W
      • Output voltage stabilised: Nie
      • Performance level acc. EN ISO 13849-1: Nie dotyczy
      • Rail mounting possible: Nie
      • Rated supply voltage at AC 50 Hz: 85-264V
      • Rated supply voltage at AC 60 Hz: 85-264V
      • Rated supply voltage at DC: 88-275V
      • Secondary voltage adjustable: Tak
      • Short-circuit-proof: Tak
      • SIL according to IEC 61508: None
      • Stabilised: Tak
      • Voltage type of supply voltage: AC|DC
      • Wall mounting possible: Tak
      • Width: 18mm
      Phoenix Contact
      STEP3PS1AC12DC13PT

      Data sheet

      Width
      18
      18mm
      Height
      90
      90mm
      Depth
      61
      61mm
      Insulation class
      20
      20
      Manufacturer Product ID
      1170952
      Nominal value output voltage 1
      12
      12
      Output power
      15
      Suitable for safety functions
      Yes
      Modular version
      Nie
      No
      Voltage type of supply voltage
      AC | DC
      AC|DC
      Rated supply voltage at DC
      88-275
      88-275V
      SIL according to IEC 61508
      None
      None
      Rail mounting possible
      Nie
      No
      Max. output current 1
      1,3A
      1.3
      Secondary voltage adjustable
      Tak
      Yes
      Short-circuit-proof
      Tak
      Yes
      Rated supply voltage at AC 50 Hz
      85-264
      85-264V
      Rated supply voltage at AC 60 Hz
      85-264
      85-264V
      Wall mounting possible
      Tak
      Yes
      Built-in width
      18
      Built-in height
      90
      90mm
      Nominal value output current 1
      1,3A
      1.3
      Output voltage stabilised
      Nie
      No
      Stabilised
      Tak
      Yes
      Direct mounting possible
      Tak
      Yes
      Performance level acc. EN ISO 13849-1
      Nie dotyczy
      n/a
