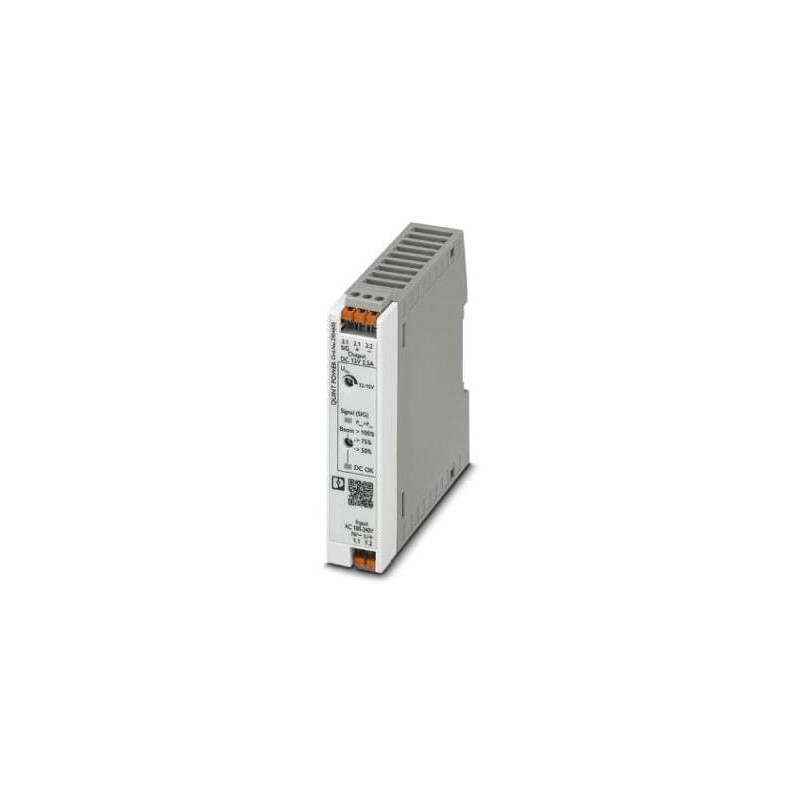

      Power supply - QUINT4PS1AC12DC25
      Power supply - QUINT4PS1AC12DC25
      Power supply - QUINT4PS1AC12DC25
      Power supply - QUINT4PS1AC12DC25

      Power supply - QUINT4PS1AC12DC25

      Review (0)
      zł718.01
      Tax Included
      Return policy:14
      Power supply - QUINT4PS1AC12DC25 - 1st secondary output voltage: 12-15, 12-15V; 2nd secondary output voltage: 12-12.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Power supply - QUINT4PS1AC12DC25

      Reference number: QUINT4PS1AC12DC25.

      Product parameters:

      • 1st secondary output voltage: 12-15, 12-15V
      • 2nd secondary output voltage: 12-12
      • Built-in height: 106, 106mm
      • Depth: 90, 90mm
      • Direct mounting possible: No, Nie
      • Height: 106, 106mm
      • Insulation class: 20
      • Manufacturer Product ID: 2904605
      • Max. output current 1: 4.5
      • Modular version: No, Nie
      • Nominal value output current 1: 2.5, 2,5A
      • Nominal value output voltage 1: 12
      • Output power: 30, 30W
      • Output voltage stabilised: Yes, Tak
      • Performance level acc. EN ISO 13849-1: n/a
      • Power consumption: 32.8, 32,8VA
      • Rail mounting possible: Yes, Tak
      • Rated supply voltage at AC 50 Hz: 100-240, 100-240V
      • Rated supply voltage at AC 60 Hz: 100-240, 100-240V
      • Rated supply voltage at DC: 110-250, 110-250V
      • Secondary voltage adjustable: Yes, Tak
      • Short-circuit-proof: Yes, Tak
      • SIL according to IEC 61508: None
      • Stabilised: Yes, Tak
      • Suitable for safety functions: Yes, Tak
      • Type of electric connection: Spring clamp connection, Złącze typu zacisk sprężynowy
      • Voltage type of supply voltage: AC | DC, AC|DC
      • Wall mounting possible: No, Nie
      • Width: 22.5, 22,5mm
      Phoenix Contact
      QUINT4PS1AC12DC25

      Data sheet

      Width
      22,5mm
      22.5
      Height
      106
      106mm
      Depth
      90
      90mm
      Power consumtion
      32,8VA
      32.8
      Insulation class
      20
      20
      Type of electric connection
      Spring clamp connection
      Złącze typu zacisk sprężynowy
      Manufacturer Product ID
      2904605
      Nominal value output voltage 1
      12
      12
      Output power
      30
      30W
      Suitable for safety functions
      Tak
      Yes
      Modular version
      Nie
      No
      Voltage type of supply voltage
      AC | DC
      AC|DC
      Rated supply voltage at DC
      110-250
      110-250V
      SIL according to IEC 61508
      None
      None
      Rail mounting possible
      Tak
      Yes
      1st secondary output voltage
      12-15
      12-15V
      Max. output current 1
      4.5
      Secondary voltage adjustable
      Tak
      Yes
      Short-circuit-proof
      Tak
      Yes
      Rated supply voltage at AC 50 Hz
      100-240
      100-240V
      Rated supply voltage at AC 60 Hz
      100-240
      100-240V
      Wall mounting possible
      Nie
      No
      Built-in height
      106
      106mm
      Nominal value output current 1
      2,5A
      2.5
      Output voltage stabilised
      Tak
      Yes
      Stabilised
      Tak
      Yes
      Direct mounting possible
      Nie
      No
      Performance level acc. EN ISO 13849-1
      n/a
      2nd secondary output voltage
      12-12
