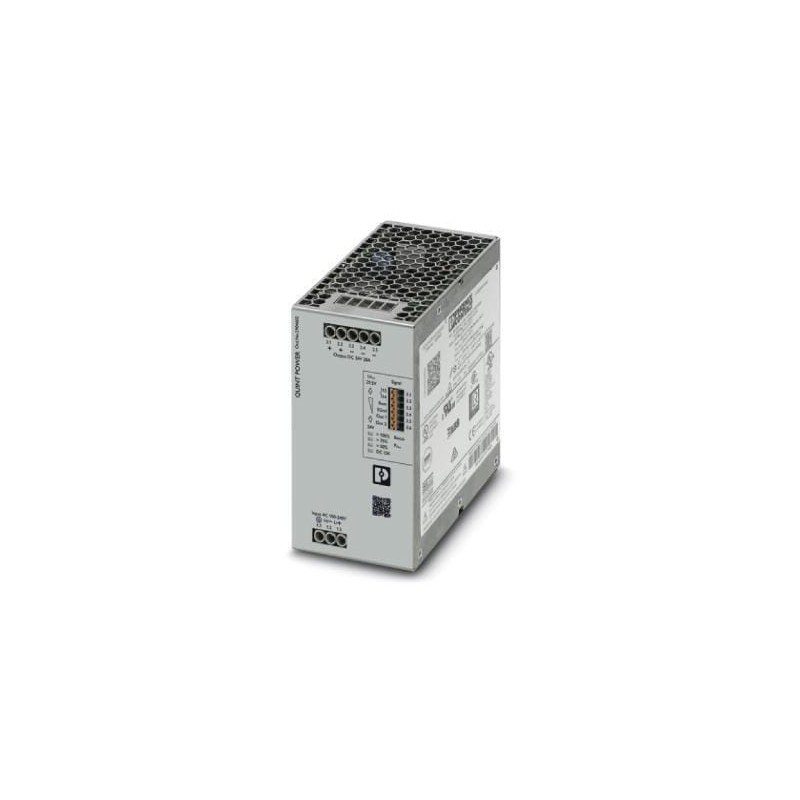

      Power supply - QUINT4PS1AC24DC20
      Power supply - QUINT4PS1AC24DC20

      Power supply - QUINT4PS1AC24DC20

      Review (0)
      zł2,669.84
      Tax Included
      Return policy:14
      Power supply - QUINT4PS1AC24DC20 - 1st secondary output voltage: 24-29.5, 24-29.5V; 2nd secondary output voltage: 24-24, 24-24V.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Power supply - QUINT4PS1AC24DC20

      Reference number: QUINT4PS1AC24DC20.

      Product parameters:

      • 1st secondary output voltage: 24-29.5, 24-29.5V
      • 2nd secondary output voltage: 24-24, 24-24V
      • Built-in height: 130, 130mm
      • Depth: 125, 125mm
      • Direct mounting possible: No, Nie
      • Height: 130.7, 130,7mm
      • Insulation class: 20
      • Manufacturer Product ID: 2904602
      • Max. output current 1: 30, 30A
      • Modular version: No, Nie
      • Nominal value output current 1: 20, 20A
      • Nominal value output voltage 1: 24
      • Output power: 480, 480W
      • Output voltage stabilised: Yes, Tak
      • Performance level acc. EN ISO 13849-1: n/a
      • Power consumption: 520
      • Rail mounting possible: Yes, Tak
      • Rated supply voltage at AC 50 Hz: 100-240, 100-240V
      • Rated supply voltage at AC 60 Hz: 100-240, 100-240V
      • Rated supply voltage at DC: 110-250, 110-250V
      • Secondary voltage adjustable: Yes, Tak
      • Short-circuit-proof: Yes, Tak
      • SIL according to IEC 61508: None
      • Stabilised: Yes, Tak
      • Suitable for safety functions: Yes, Tak
      • Type of electric connection: Screw connection, Połączenie śrubowe
      • Voltage type of supply voltage: AC | DC, AC|DC
      • Wall mounting possible: No, Nie
      • Width: 70.1, 70,1mm
      Phoenix Contact
      QUINT4PS1AC24DC20

      Data sheet

      Width
      70,1mm
      70.1
      Height
      130,7mm
      130.7
      Depth
      125
      125mm
      Power consumtion
      520
      Insulation class
      20
      20
      Type of electric connection
      Połączenie śrubowe
      Screw connection
      Manufacturer Product ID
      2904602
      Nominal value output voltage 1
      24
      24
      Output power
      480
      480W
      Suitable for safety functions
      Tak
      Yes
      Modular version
      Nie
      No
      Voltage type of supply voltage
      AC | DC
      AC|DC
      Rated supply voltage at DC
      110-250
      110-250V
      SIL according to IEC 61508
      None
      None
      Rail mounting possible
      Tak
      Yes
      1st secondary output voltage
      24-29.5
      24-29.5V
      Max. output current 1
      30
      30A
      Secondary voltage adjustable
      Tak
      Yes
      Short-circuit-proof
      Tak
      Yes
      Rated supply voltage at AC 50 Hz
      100-240
      100-240V
      Rated supply voltage at AC 60 Hz
      100-240
      100-240V
      Wall mounting possible
      Nie
      No
      Built-in height
      130
      130mm
      Nominal value output current 1
      20
      20A
      Output voltage stabilised
      Tak
      Yes
      Stabilised
      Tak
      Yes
      Direct mounting possible
      Nie
      No
      Performance level acc. EN ISO 13849-1
      n/a
      2nd secondary output voltage
      24-24
      24-24V
