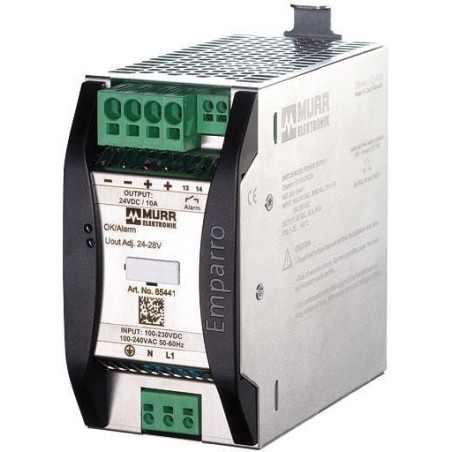

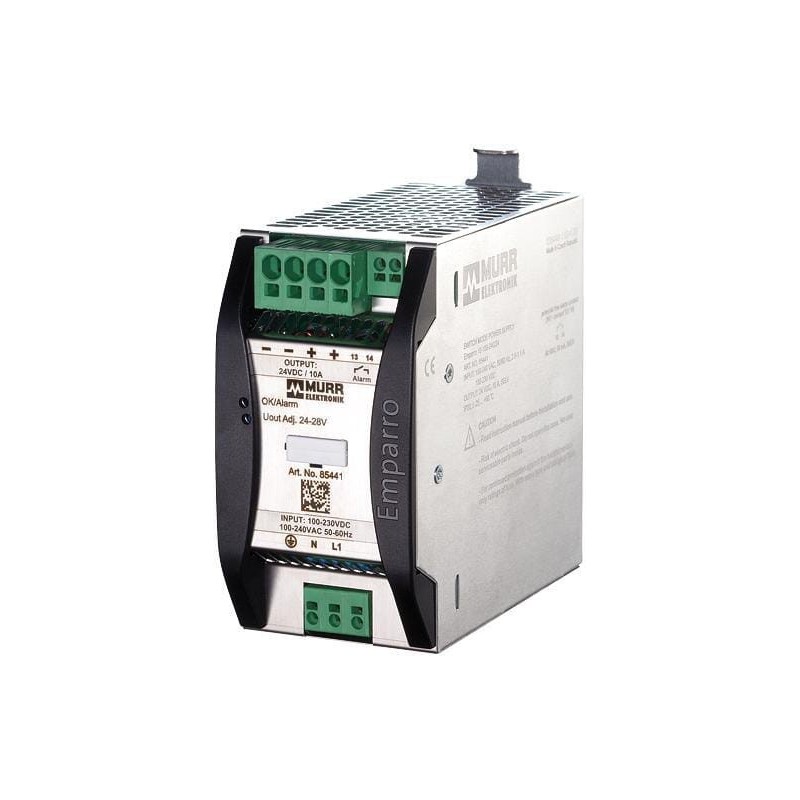

Power supply, 230VAC/24VDC 10A - 85441

Reference number: 85441.

Product parameters:

• 1st secondary output voltage: 24-28, 24-28V
• Built-in height: 145, 145mm
• Built-in width: 85
• Depth: 138, 138mm
• Direct mounting possible: Yes, Tak
• Height: 123, 123mm
• Insulation class: 20
• Manufacturer Product ID: 85441
• Max. output current 1: 10, 10A
• Max. output current 2: 12.8
• Max. output current 3: 15, 15A
• Modular version: Yes, Tak
• Nominal value output current 1: 10, 10A
• Nominal value output voltage 1: 24
• Output power: 240, 240W
• Output voltage stabilised: Yes, Tak
• Performance level acc. EN ISO 13849-1: n/a, Nie dotyczy
• Power consumption: 254.2
• Rail mounting possible: Yes, Tak
• Rated supply voltage at AC 50 Hz: 85-265, 85-265V
• Rated supply voltage at AC 60 Hz: 85-265, 85-265V
• Rated supply voltage at DC: 90-250, 90-250V
• Secondary voltage adjustable: Yes, Tak
• Short-circuit-proof: Yes, Tak
• SIL according to IEC 61508: None
• Stabilised: Yes, Tak
• Suitable for safety functions: Yes, Tak
• Type of electric connection: Spring clamp connection, Złącze typu zacisk sprężynowy
• Voltage type of supply voltage: AC | DC, AC|DC
• Wall mounting possible: No, Nie
• Width: 65, 65mm
• Width in number of modular spaces: 1
