      Power supply - 85690
      Power supply - 85690
      Power supply - 85690

      Power supply - 85690

      Review (0)
      zł1,706.43
      Tax Included
      Return policy:14
      Power supply - 85690 - 1st secondary output voltage: 24-28; Built-in height: 140.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

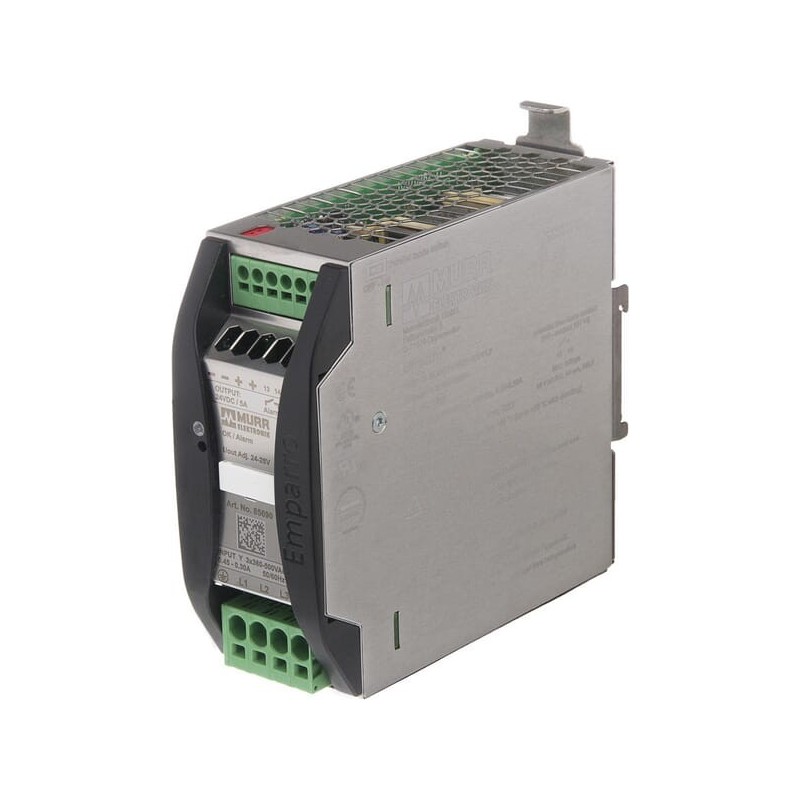

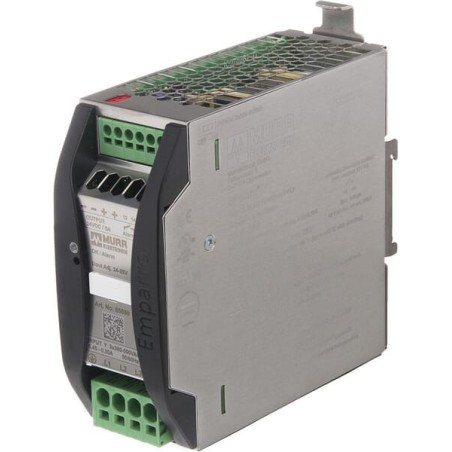

      Power supply - 85690

      Reference number: 85690.

      Product parameters:

      • 1st secondary output voltage: 24-28
      • Built-in height: 140
      • Built-in width: 70
      • Depth: 138
      • Direct mounting possible: Yes, Tak
      • Height: 123, 123mm
      • Insulation class: 20
      • Manufacturer Product ID: 85690
      • Max. output current 1: 5
      • Max. output current 2: 6
      • Max. output current 3: 7.5
      • Modular version: Yes, Tak
      • Nominal value output current 1: 5
      • Nominal value output voltage 1: 24
      • Output power: 120
      • Output voltage stabilised: Yes, Tak
      • Performance level acc. EN ISO 13849-1: n/a, Nie dotyczy
      • Power consumption: 129.7
      • Rail mounting possible: Yes, Tak
      • Rated supply voltage at AC 50 Hz: 324-572, 324-572V
      • Rated supply voltage at AC 60 Hz: 324-572, 324-572V
      • Rated supply voltage at DC: 480-745, 480-745V
      • Secondary voltage adjustable: Yes, Tak
      • Short-circuit-proof: Yes, Tak
      • SIL according to IEC 61508: None
      • Stabilised: Yes, Tak
      • Suitable for safety functions: Yes, Tak
      • Type of electric connection: Spring clamp connection, Złącze typu zacisk sprężynowy
      • Voltage type of supply voltage: AC | DC, AC|DC
      • Wall mounting possible: No
      • Width: 50, 50mm
      • Width in number of modular spaces: 1
      Murrelektronik
      85690

      Data sheet

      Width
      50
      50mm
      Height
      123
      123mm
      Depth
      138
      Power consumtion
      129.7
      Insulation class
      20
      20
      Type of electric connection
      Spring clamp connection
      Złącze typu zacisk sprężynowy
      Manufacturer Product ID
      85690
      Nominal value output voltage 1
      24
      24
      Output power
      120
      Suitable for safety functions
      Tak
      Yes
      Modular version
      Tak
      Yes
      Voltage type of supply voltage
      AC | DC
      AC|DC
      Width in number of modular spacings (mm)
      1
      1
      Rated supply voltage at DC
      480-745
      480-745V
      SIL according to IEC 61508
      None
      None
      Rail mounting possible
      Tak
      Yes
      1st secondary output voltage
      24-28
      Max. output current 1
      5
      Secondary voltage adjustable
      Tak
      Yes
      Short-circuit-proof
      Tak
      Yes
      Rated supply voltage at AC 50 Hz
      324-572
      324-572V
      Rated supply voltage at AC 60 Hz
      324-572
      324-572V
      Wall mounting possible
      No
      Built-in width
      70
      Built-in height
      140
      Max. output current 2
      6
      Max. output current 3
      7.5
      Nominal value output current 1
      5
      Output voltage stabilised
      Tak
      Yes
      Stabilised
      Tak
      Yes
      Direct mounting possible
      Tak
      Yes
      Performance level acc. EN ISO 13849-1
      Nie dotyczy
      n/a

      Specific References
