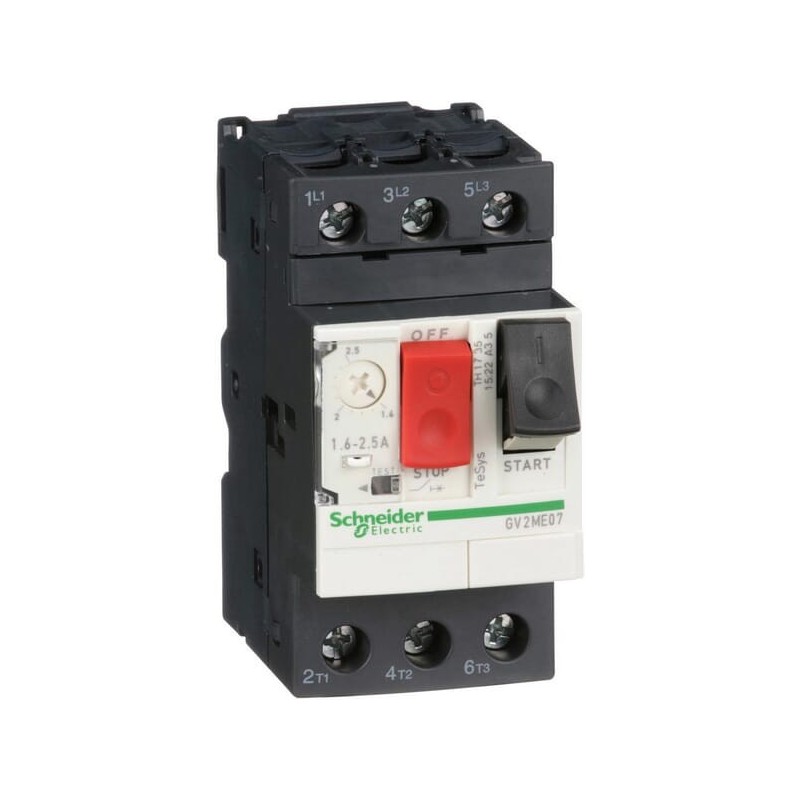

      Overload relay 1.6-2.5-A - GV2ME07
      Overload relay 1.6-2.5-A - GV2ME07
      Overload relay 1.6-2.5-A - GV2ME07
      Overload relay 1.6-2.5-A - GV2ME07

      Overload relay 1.6-2.5-A - GV2ME07

      Review (0)
      zł268.63
      Tax Included
      Return policy:14
      Wyłącznik silnikowy 1.6-2.5A - GV2ME07 - Adjustment range undelayed short-circuit release: 33.5-33.5; Depth: 78.2, 78,2mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Wyłącznik silnikowy 1.6-2.5A - GV2ME07

      Reference number: GV2ME07.

      Product parameters:

      • Adjustment range undelayed short-circuit release: 33.5-33.5
      • Depth: 78.2, 78,2mm
      • Device construction: Complete device in housing, Kompletne urządzenie w obudowie
      • Height: 89, 89mm
      • Insulation class: 20
      • Manufacturer Product ID: GV2ME07
      • Number of poles: 3
      • Overload release current setting: 1.6-2.5
      • Phase failure sensitive: Yes, Tak
      • Rated operating voltage: 230-690, 230.0-690.0V
      • Rated operation power at AC-3, 230 V: 0.4
      • Rated operation power at AC-3, 400 V: 0.75
      • Rated permanent current Iu: 2.5
      • Rated short-circuit breaking capacity lcu at 400 V, AC: 100, 100kW
      • Switch off technique: Thermomagnetic, Termomagnetyczny
      • Type of control element: Push button, Przycisk
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Width: 45, 45mm
      • With integrated auxiliary switch: No, Nie
      • With integrated under voltage release: No, Nie
      • With thermal overload protection: Yes, Tak
      Schneider-Electric
      GV2ME07
      14 Items

      Data sheet

      Width
      45
      45mm
      Height
      89
      89mm
      Depth
      78,2mm
      78.2
      Insulation class
      20
      20
      Manufacturer Product ID
      GV2ME07
      Type of control element
      Przycisk
      Push button
      Rated operation power at AC-3, 400 V
      0.75
      Number of poles
      3
      3
      Device construction
      Complete device in housing
      Complete device in housing
      Rated operating voltage
      230-690
      230.0-690.0V
      Rated permanent current Iu
      2.5
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Overload release current setting
      1.6-2.5
      Adjustment range undelayed short-circuit release
      33.5-33.5
      Phase failure sensitive
      Tak
      Yes
      Rated operation power at AC-3, 230 V
      0.4
      Rated short-circuit breaking capacity lcu at 400 V, AC
      100
      100kW
      Switch off technique
      Termomagnetyczny
      Thermomagnetic
      With integrated auxiliary switch
      Nie
      No
      With integrated under voltage release
      Nie
      No
      With thermal overload protection
      Tak
      Yes
