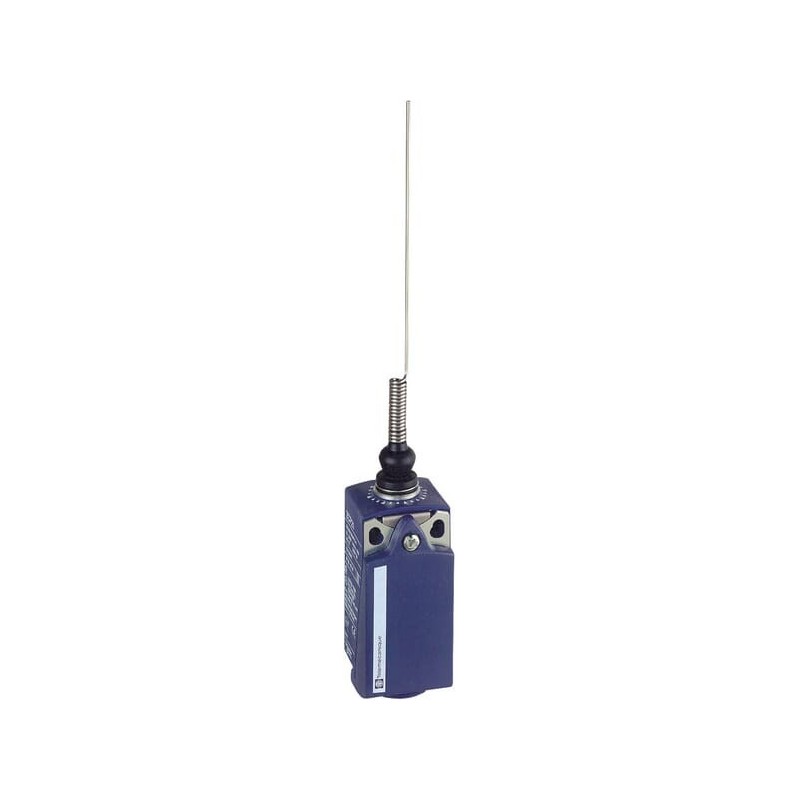

      Position switch, spring rod actuator - XCKP2106P16
      Position switch, spring rod actuator - XCKP2106P16

      Position switch, spring rod actuator - XCKP2106P16

      Review (0)
      zł118.77
      Tax Included
      Return policy:14
      Position switch, spring rod actuator - XCKP2106P16 - Cable entry: M16x1,5; Number of NC contacts: 1.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Position switch, spring rod actuator - XCKP2106P16

      Reference number: XCKP2106P16.

      Product parameters:

      • Cable entry: M16x1,5
      • Number of NC contacts: 1
      • Number of NO contacts: 1
      • Switching capacity (AC-15 230V) (A): 3A
      • Switching capacity (DC-13 220V): 0,27A
      • Terminal capacities (mm2): max. 2x 1,5mm2mm²
      • Żywotność, elektryczna (cykle łączeniowe): 5x10E6
      • Żywotność, mechaniczna (cykle łączeniowe): 10x10E6
      Telemecanique
      XCKP2106P16

      Data sheet

      Insulation class
      66 | 67
      Housing material
      Plastic
      Type of electric connection
      Cable entry metrical
      Manufacturer Product ID
      XCKP2106P16
      Switching function latching
      No
      Type of control element
      Spring-rod
      Rated operation current Ie at AC-15, 230 V
      3
      Number of contacts as normally closed contact
      1
      Number of contacts as normally open contact
      1
      Number of contacts as change-over contact
      Suitable for safety functions
      No
      With status indication
      No
      Length of sensor
      30
      Switching function
      Quick-break switch
      Ambient temperature during operating
      -25.0
      Width sensor
      31
      Cable entry

      M16x1,5
      M16x1,5
      Forced opening
      Yes
      Height of sensor
      65
      Output electronic
      No
      Rated operation current Ie at DC-13, 230 V
      0.27
      Type of interface
      None
      Type of interface for safety communication
      None
      Number of safety auxiliary contacts
      Switching capacity (AC-15 230V) (A)
      3
      3A
      Terminal capacities (mm2)
      max. 2x 1,5mm2
      max. 2x 1,5mm2mm²
      Number of NC contacts
      1
      1
      Number of NO contacts
      1
      1
      Switching capacity (DC-13 220V)
      0,27A
      0.27
      Lifespan, electrical (Operations)
      5x10E6
      5x10E6
      Lifespan, mechanical (Operations)
      10x10E6
      10x10E6

      Specific References
