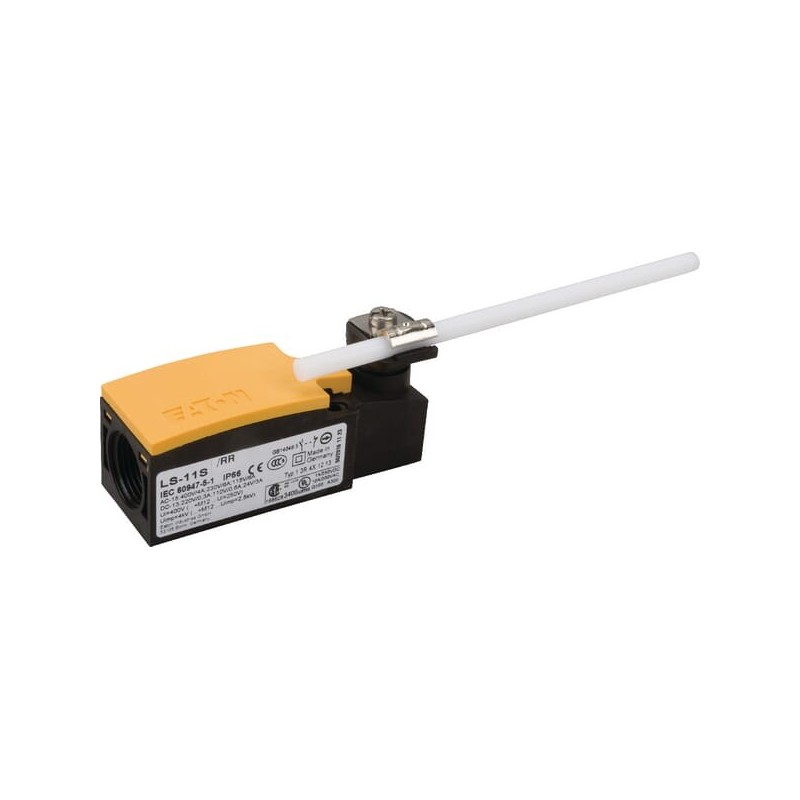

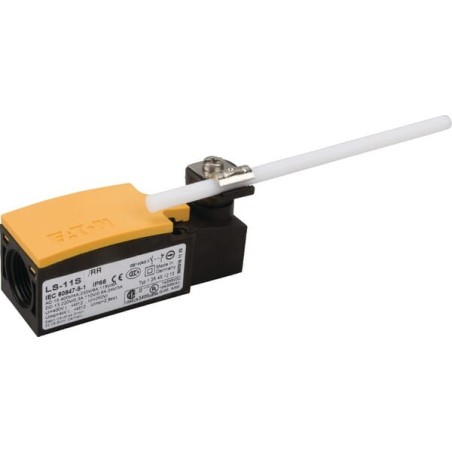

      Limit switch with control bar - LS11SRR
      Limit switch with control bar - LS11SRR

      Limit switch with control bar - LS11SRR

      Review (0)
      zł236.45
      Tax Included
      Return policy:14
      Limit switch with control bar - LS11SRR - Alignment of the control element: Roller cam crossed, Popychacz z rolką prostopadłą; Ambient temperature
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Limit switch with control bar - LS11SRR

      Reference number: LS11SRR.

      Product parameters:

      • Alignment of the control element: Roller cam crossed, Popychacz z rolką prostopadłą
      • Ambient temperature during operating: -25.0, -25.0°C
      • Construction type housing: Cuboid
      • Diameter sensor: 0mm
      • Explosion safety category for dust: None, Brak
      • Explosion safety category for gas: None, Brak
      • Forced opening: Yes, Tak
      • Height of sensor: 61, 61mm
      • Insulation class: 66 | 67, 66|67
      • Length of sensor: 33.5, 33,5mm
      • Manufacturer Product ID: 266106
      • Material housing: Plastic, Tworzywo sztuczne
      • Number of contacts as normally closed contact: 1
      • Number of contacts as normally open contact: 1
      • Number of safety auxiliary contacts: 1
      • Output electronic: No, Nie
      • Rated operation current Ie at AC-15, 125 V: 6, 6A
      • Rated operation current Ie at AC-15, 230 V: 4, 4A
      • Rated operation current Ie at AC-15, 24 V: 10, 10A
      • Rated operation current Ie at DC-13, 125 V: 1, 1A
      • Rated operation current Ie at DC-13, 230 V: 0.5, 0,5A
      • Rated operation current Ie at DC-13, 24 V: 10, 10A
      • Rodzaj konstrukcji obudowy: Prostopadłościan
      • Suitable for safety functions: Yes, Tak
      • Switching function: Quick-break switch, Styk migowy
      • Switching function latching: No, Nie
      • Type of control element: Actuating rod
      • Type of electric connection: Cable entry metrical, Metryczne wejścia przewodu
      • Type of interface: None, Brak
      • Type of interface for safety communication: None, Brak
      • Width sensor: 31, 31mm
      • With status indication: No, Nie
      Eaton
      LS11SRR
      19 Items

      Data sheet

      Insulation class
      66 | 67
      66|67
      Housing material
      Plastic
      Tworzywo sztuczne
      Type of electric connection
      Cable entry metrical
      Metryczne wejścia przewodu
      Manufacturer Product ID
      266106
      Switching function latching
      Nie
      No
      Type of control element
      Actuating rod
      Rated operation current Ie at AC-15, 230 V
      4
      4A
      Number of contacts as normally closed contact
      1
      1
      Number of contacts as normally open contact
      1
      1
      Construction type housing
      Cuboid
      Number of contacts as change-over contact
      Suitable for safety functions
      Tak
      Yes
      With status indication
      Nie
      No
      Diameter sensor

      0mm
      Length of sensor
      33,5mm
      33.5
      Switching function
      Quick-break switch
      Styk migowy
      Explosion safety category for dust
      Brak
      None
      Explosion safety category for gas
      Brak
      None
      Ambient temperature during operating
      -25.0
      -25.0°C
      Width sensor
      31
      31mm
      Rodzaj konstrukcji obudowy
      Prostopadłościan
      Cable entry
      Forced opening
      Tak
      Yes
      Height of sensor
      61
      61mm
      Output electronic
      Nie
      No
      Rated operation current Ie at AC-15, 125 V
      6
      6A
      Rated operation current Ie at DC-13, 125 V
      1
      1A
      Rated operation current Ie at DC-13, 230 V
      0,5A
      0.5
      Rated operation current Ie at DC-13, 24 V
      10
      10A
      Type of interface
      Brak
      None
      Type of interface for safety communication
      Brak
      None
      Alignment of the control element
      Popychacz z rolką prostopadłą
      Roller cam crossed
      Number of safety auxiliary contacts
      1
      1
      Rated operation current Ie at AC-15, 24 V
      10
      10A
