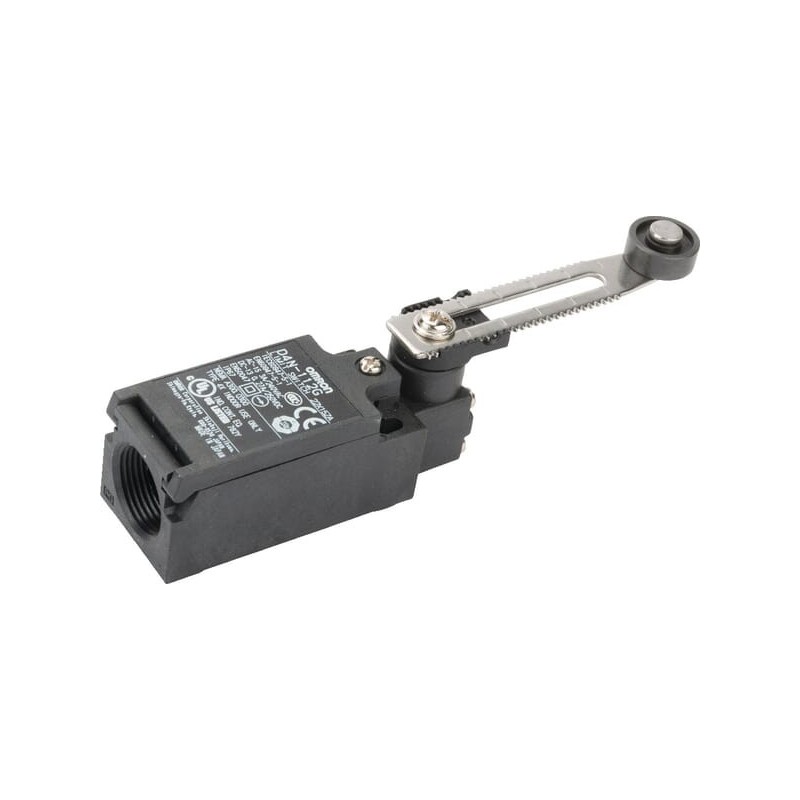

      Limit switch , lift arm - D4N112G

      Reference number: D4N112G.

      Product parameters:

      • Alignment of the control element: Roller cam straight, Popychacz z rolką równoległą
      • Ambient temperature during operating: -30.0, -30.0°C
      • Construction type housing: Cuboid
      • Explosion safety category for dust: None, Brak
      • Explosion safety category for gas: None, Brak
      • Forced opening: Yes, Tak
      • Funkcja przełączająca: Styk migowy
      • Height of sensor: 101.8
      • Insulation class: 67
      • Length of sensor: 30, 30mm
      • Manufacturer Product ID: D4N 0063R
      • Material housing: Plastic, Tworzywo sztuczne
      • Number of contacts as normally closed contact: 1
      • Number of contacts as normally open contact: 1
      • Output electronic: No, Nie
      • Rated operation current Ie at AC-15, 125 V: 6, 6A
      • Rated operation current Ie at AC-15, 230 V: 3, 3A
      • Rated operation current Ie at DC-13, 125 V: 0.55, 0,55A
      • Rated operation current Ie at DC-13, 230 V: 0.27, 0,27A
      • Rodzaj konstrukcji obudowy: Prostopadłościan
      • Suitable for safety functions: Yes, Tak
      • Switching function: Quick-break switch
      • Switching function latching: No, Nie
      • Type of control element: Adjustable roller lever
      • Type of electric connection: Cable entry PG
      • Type of interface: None, Brak
      • Type of interface for safety communication: None, Brak
      • Width sensor: 31, 31mm
      • With status indication: No, Nie
      Omron
      D4N112G

      Data sheet

      Additional info
      Insulation class

      67
      67
      Housing material
      Plastic
      Tworzywo sztuczne
      Type of electric connection
      Cable entry PG
      Manufacturer Product ID
      D4N 0063R
      Switching function latching
      Nie
      No
      Type of control element
      Adjustable roller lever
      Rated operation current Ie at AC-15, 230 V
      3
      3A
      Number of contacts as normally closed contact
      1
      1
      Number of contacts as normally open contact
      1
      1
      Construction type housing
      Cuboid
      Number of contacts as change-over contact
      Suitable for safety functions
      Tak
      Yes
      With status indication
      Nie
      No
      Length of sensor
      30
      30mm
      Switching function
      Quick-break switch
      Styk migowy
      Explosion safety category for dust
      Brak
      None
      Explosion safety category for gas
      Brak
      None
      Ambient temperature during operating
      -30.0
      -30.0°C
      Width sensor
      31
      31mm
      Rodzaj konstrukcji obudowy
      Prostopadłościan
      Cable entry
      Forced opening
      Tak
      Yes
      Height of sensor
      101.8
      Output electronic
      Nie
      No
      Rated operation current Ie at AC-15, 125 V
      6
      6A
      Rated operation current Ie at DC-13, 125 V
      0,55A
      0.55
      Rated operation current Ie at DC-13, 230 V
      0,27A
      0.27
      Type of interface
      Brak
      None
      Type of interface for safety communication
      Brak
      None
      Alignment of the control element
      Popychacz z rolką równoległą
      Roller cam straight
      Number of safety auxiliary contacts
