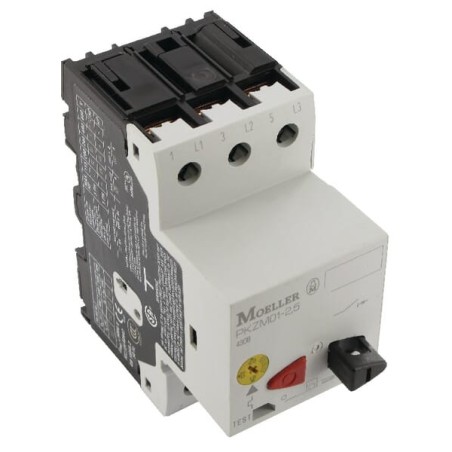

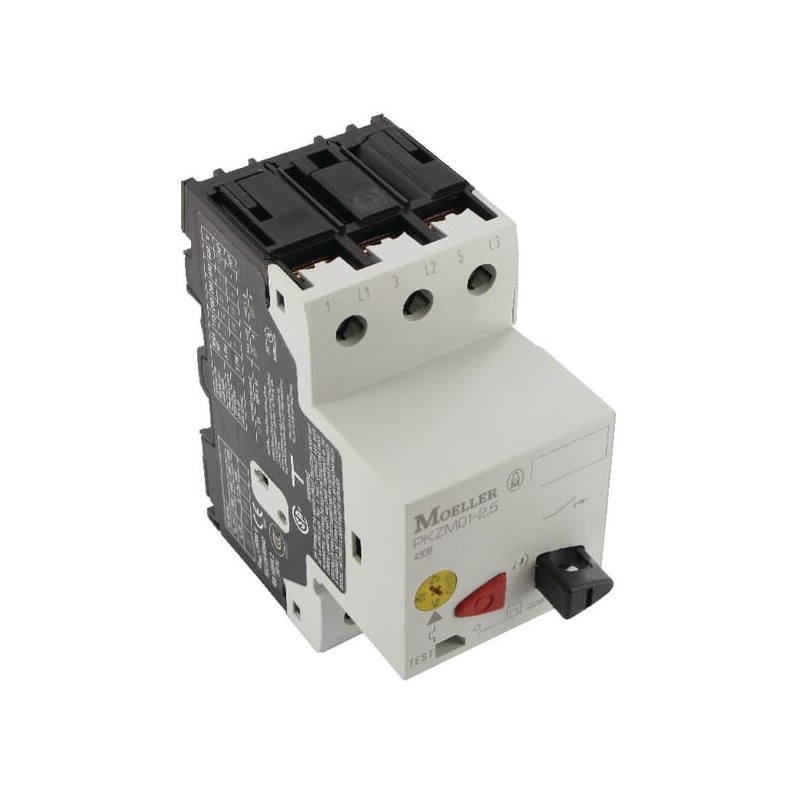

      Engine circuit breaker - PKZM0125
      Engine circuit breaker - PKZM0125

      Engine circuit breaker - PKZM0125

      Review (0)
      zł472.12
      Tax Included
      Return policy:14
      Last items in stock
      Engine circuit breaker - PKZM0125 - Adjustment range undelayed short-circuit release: 39-39; Depth: 93, 93mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Engine circuit breaker - PKZM0125

      Reference number: PKZM0125.

      Product parameters:

      • Adjustment range undelayed short-circuit release: 39-39
      • Depth: 93, 93mm
      • Device construction: Built-in device fixed built-in technique, Urządzenie mocowane na stałe
      • Height: 90, 90mm
      • Insulation class: 20
      • Manufacturer Product ID: 278481
      • Number of poles: 3
      • Overload release current setting: 1.6-2.5, 1.6-2.5A
      • Phase failure sensitive: Yes, Tak
      • Power loss: 5.2
      • Rated operating voltage: 690-690, 690.0-690.0V
      • Rated operation power at AC-3, 230 V: 0.4, 0,4kW
      • Rated operation power at AC-3, 400 V: 0.75, 0,75kW
      • Rated permanent current Iu: 2.5, 2,5A
      • Rated short-circuit breaking capacity lcu at 400 V, AC: 50kW, 50
      • Switch off technique: Thermomagnetic, Termomagnetyczny
      • Type of control element: Push button, Przycisk
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Width: 45, 45mm
      • With integrated auxiliary switch: No, Nie
      • With integrated under voltage release: No, Nie
      • With thermal overload protection: No, Nie
      Eaton
      PKZM0125
      2 Items

      Data sheet

      Width
      45
      45mm
      Height
      90
      90mm
      Depth
      93
      93mm
      Insulation class
      20
      20
      Manufacturer Product ID
      278481
      Type of control element
      Przycisk
      Push button
      Rated operation power at AC-3, 400 V
      0,75kW
      0.75
      Number of poles
      3
      3
      Device construction
      Built-in device fixed built-in technique
      Urządzenie mocowane na stałe
      Rated operating voltage
      690-690
      690.0-690.0V
      Rated permanent current Iu
      2,5A
      2.5
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Overload release current setting
      1.6-2.5
      1.6-2.5A
      Adjustment range undelayed short-circuit release
      39-39
      Phase failure sensitive
      Tak
      Yes
      Rated operation power at AC-3, 230 V
      0,4kW
      0.4
      Rated short-circuit breaking capacity lcu at 400 V, AC
      50
      50kW
      Switch off technique
      Termomagnetyczny
      Thermomagnetic
      With integrated auxiliary switch
      Nie
      No
      With integrated under voltage release
      Nie
      No
      With thermal overload protection
      Nie
      No
      Power loss
      5.2
