Data sheet

Manufacturer Product ID

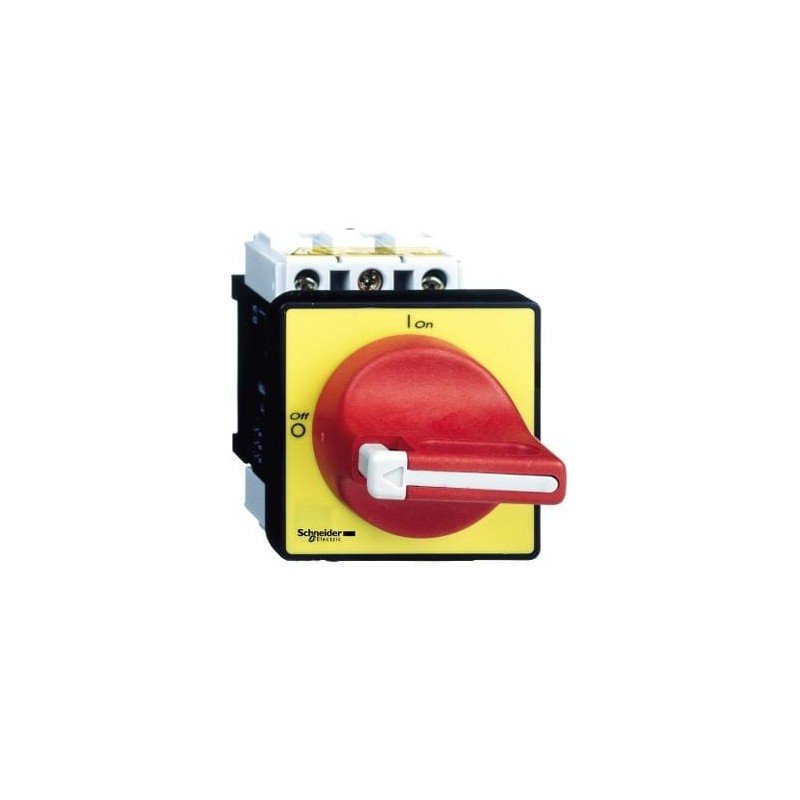

VCF0

Type of control element

Pokrętło
Turn button

Colour control element

Czerwony
Red

Rated operation power at AC-3, 400 V

5,5kW
5.5

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Number of poles

3
3

Degree of protection (IP), front side

65
65

Device construction

Built-in device fixed built-in technique
Urządzenie mocowane na stałe

Interlockable

Tak
Yes

Max. rated operation voltage Ue AC

690
690V

Motor drive integrated

Nie
No

Motor drive optional

Nie
No

Number of switches

1
1

Rated operating voltage

690-690
690.0-690.0V

Rated operation power at AC-23, 400 V

7,5kW
7.5

Rated permanent current at AC-21, 400 V

25
25A

Rated permanent current at AC-23, 400 V

14.5

Rated permanent current Iu

25
25A

Suitable for distribution board installation

Yes

Suitable for front mounting 4-hole

Tak
Yes

Suitable for front mounting centre

Nie
No

Suitable for intermediate mounting

Nie
No

Switching power at 400 V

15
15kA

Type of electrical connection of main circuit

Połączenie śrubowe
Screw connection

Version as emergency stop installation

Tak
Yes

Version as main switch

Tak
Yes

Version as maintenance-/service switch

Nie
No

Version as reversing switch

Nie
No

Version as safety switch

Nie
No

Voltage release optional

Nie
No

Conditioned rated short-circuit current Iq

10

Number of auxiliary contacts as change-over contact

Rated short-time withstand current lcw

0,3kA
0.3
