Data sheet

Width

65
65mm

Height

65
65mm

Depth

119
119mm

Manufacturer Product ID

041097

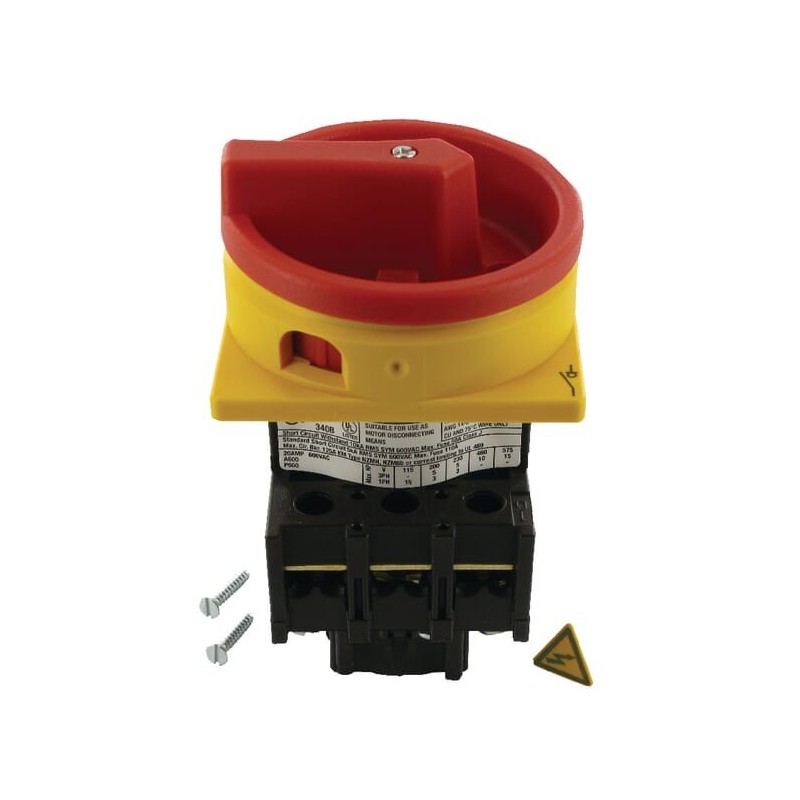

Type of control element

Door coupling rotary drive
Napęd obrotowy na drzwi

Colour control element

Czerwony
Red

Rated operation power at AC-3, 400 V

7,5kW
7.5

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Number of poles

3
3

Degree of protection (IP), front side

65
65

Device construction

Built-in device fixed built-in technique
Urządzenie mocowane na stałe

Interlockable

Tak
Yes

Max. rated operation voltage Ue AC

690
690V

Motor drive integrated

Nie
No

Motor drive optional

Nie
No

Number of switches

1
1

Rated operating voltage

690-690
690.0-690.0V

Rated operation power at AC-23, 400 V

13
13kW

Rated permanent current at AC-21, 400 V

25
25A

Rated permanent current at AC-23, 400 V

25
25A

Rated permanent current Iu

25
25A

Suitable for distribution board installation

Nie
No

Suitable for front mounting 4-hole

Tak
Yes

Suitable for front mounting centre

Nie
No

Suitable for intermediate mounting

Nie
No

Switching power at 400 V

13
13kA

Type of electrical connection of main circuit

Połączenie śrubowe
Screw connection

Version as emergency stop installation

Tak
Yes

Version as main switch

Tak
Yes

Version as maintenance-/service switch

Tak
Yes

Version as reversing switch

Nie
No

Version as safety switch

Nie
No

Voltage release optional

Nie
No

Conditioned rated short-circuit current Iq

80
80kA

Number of auxiliary contacts as change-over contact

Rated short-time withstand current lcw

0,6kA
0.6

With pre-assembled cabling

Nie
No
