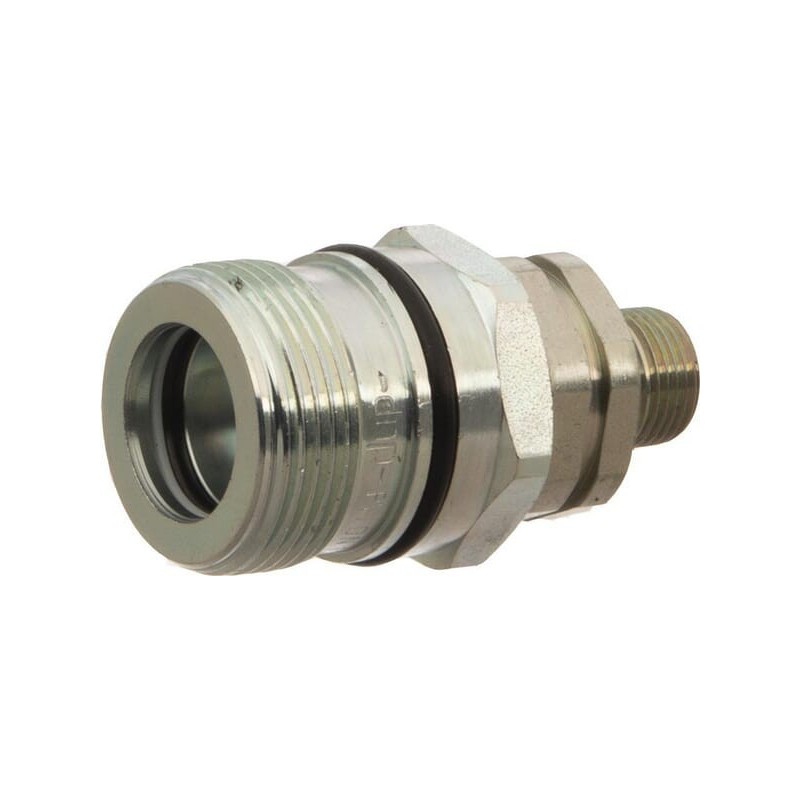

      Coupling - SKSF12A06
      Coupling - SKSF12A06
      Coupling - SKSF12A06
      Coupling - SKSF12A06

      Coupling - SKSF12A06

      Review (0)
      zł49.48
      Tax Included
      Return policy:14
      Coupling - SKSF12A06 - Connectable under pressure: Yes; Connection: 3/8" BSP.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Coupling - SKSF12A06

      Reference number: SKSF12A06.

      Product parameters:

      • Connectable under pressure: Yes
      • Connection: 3/8" BSP
      • Connection 1, thread pitch: 2.00
      • Connection 1, type - male/female: Male
      • Connection no 1 thread diameter: 36, 36mm
      • Connection no 1 type - male/female: Męskie
      • D1 dimensions: 22, 22mm
      • ISO standard: 14541
      • Length: 70, 70mm
      • Material: Stal, Steel
      • Material seals: NBR / PTFE
      • Max working pressure: 400, 400BAR
      • Max. flow rate: 80, 80l/min
      • Nominal pressure: 400, 400BAR
      • Size BG: 1/2
      • Skok gwintu przyłącza nr 1: 2.00mm
      • Suitable for original number: HS101AGF06
      • Surface treatment: White passivated, Biały, pasywowany
      • Temperature max.: +100, +100°C
      • Temperature min.: -30, -30°C
      • Thread length: 12, 12mm
      • Wrench/spanner size: 30, 30mm
      DNP
      SKSF12A06
      88 Items

      Data sheet

      Length
      70
      70mm
      Material
      Stal
      Steel
      Steel
      Steel
      Size
      1/2
      12.5
      Original number equivalent
      HS101AGF06
      Outside diameter
      30
      Total length
      66
      Wrench Spanner Size
      30
      30mm
      ISO standard

      14541
      14541
      Thread length
      12
      12mm
      Max working pressure
      400
      400BAR
      Burst pressure
      1500
      Max working temperature
      100
      Min working temperature
      -25
      Suitable for original number
      HS101AGF06
      Series
      SKS
      Connection no 1 type - male/female
      Męskie
      Flow rate at 2 bar
      45
      Max flow rate
      80
      80l/min
      90
      Skok gwintu przyłącza nr 1
      2.00mm
      Valve type
      Poppet
      Sealing material
      Nitrile rubber
      Surface treatment

      Biały, pasywowany
      Connection 2, thread length
      12
      Working pressure
      400
      Pipe diameter

      3/8" BSP
      Temperature max.
      +100
      +100°C
      Material seals
      NBR / PTFE
      NBR / PTFE
      Connection no 2 threads per inch.
      19
      Connectable under pressure
      Yes
      Yes
      Size code
      BG 3
      Nominal pressure
      400
      400BAR
      Outside diameter axial bearing
      22
      22mm
      Connection no 1 thread diameter
      36
      36mm
      Wrench width 1
      36
      Quick connection locking type
      Thread
      Quick connection working type
      Screw
      Quick disconnection working type
      Screw
      Size BG
      1/2
      1/2
      Temperature min.
      -30
      -30°C
      Connection 1, type
      Quick coupling
      Connection 1, type - male/female
      Female
      Male | Female
      Connection 2, type
      Thread
      Connection 2, type - male/female
      Male
      Connection 2, thread diameter
      3/8
      Connection 2, thread type
      BSPP
      Connection 1, thread pitch
      2.00
      Breakaway function
      No
      Male probe diameter (mm)
      22
      Decompression valve
      No
      Coupling interface thread diameter
      M36
      Coupling interface thread pitch (mm)
      2.00
      Coupling interface thread type
      Metric
      Coupling interface thread pitch
      2

      Specific References
