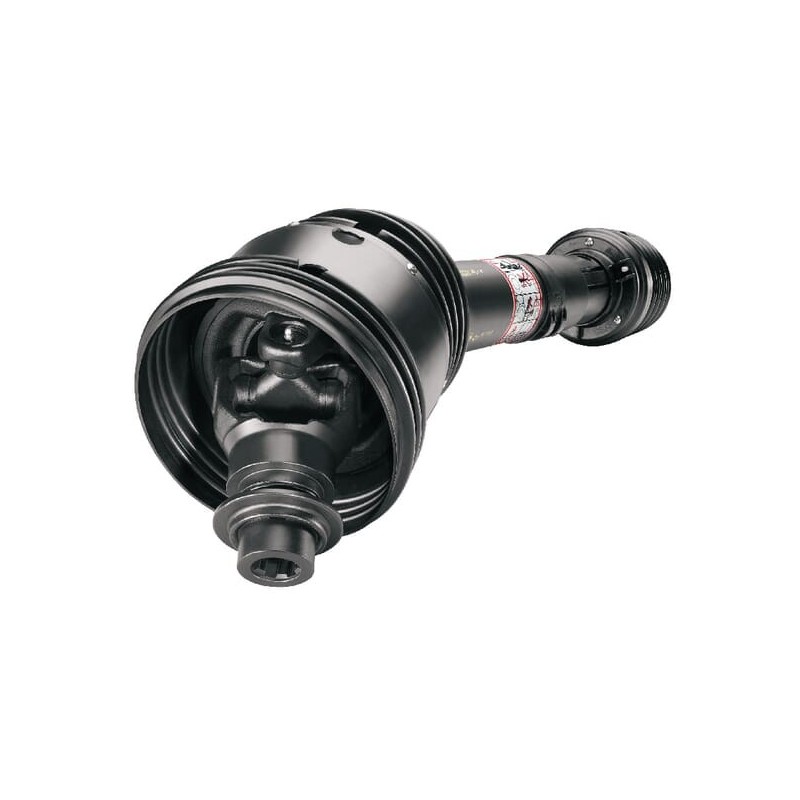

      Wide-angle shaft - 8G8R141CEWS7007
      Wide-angle shaft - 8G8R141CEWS7007

      Wide-angle shaft - 8G8R141CEWS7007

      Review (0)
      zł5,667.49
      Tax Included
      Return policy:14
      Wide-angle shaft - 8G8R141CEWS7007 - Attachment machine side: Widłak szybkozłączny; Attachment tractor side: Widłak szybkozłączny.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Wide-angle shaft - 8G8R141CEWS7007

      Reference number: 8G8R141CEWS7007.

      Product parameters:

      • Attachment machine side: Widłak szybkozłączny
      • Attachment tractor side: Widłak szybkozłączny
      • Connection number of splines/grooves machine side: 6
      • Connection number of splines/grooves tractor side: 6
      • Connection outside diameter by tractor side: 1-3/8cal
      • Connection outside diameter machine side: 1-3/8cal
      • Cross joint bush diameter by machine side: 34,9mm
      • Cross joint bush diameter by tractor side: 30,2mm
      • Cross joint length by machine side: 93,5mm
      • Cross joint length by tractor side: 106mm
      • Inner tube large outside diameter: 45,6mm
      • Inner tube wall thickness: 5,8mm
      • Length: 1410mm
      • Locking type by machine side: Kołek wciskany
      • Locking type by tractor side: Zasuwa kołnierzowa
      • Outer tube large outside diameter: 54mm
      • Outer tube wall thickness: 3,7mm
      • Profile tube shape: Trójkątny
      • Shaft size: G8
      Bondioli&Pavesi
      8G8R141CEWS7007

      Data sheet

      Length
      1410
      1410mm
      Shaft size
      G8
      G8
      Cross joint cap diameter tractor side
      30,2mm
      30.2
      Cross joint length by tractor side
      106
      106mm
      Cross joint cap diameter machine side
      34,9mm
      34.9
      Cross joint length by machine side
      93,5mm
      93.5
      Locking type by machine side
      Kołek wciskany
      Push pin
      Connection outside diameter tractor side
      1-3/8cal
      Connection number of splines/grooves tractor side
      6
      Connection outside diameter machine side
      1-3/8cal
      Connection number of splines/grooves machine side
      6
      Profile tube shape
      Triangular
      Trójkątny
      Locking type tractor side
      Collar lock
      Zasuwa kołnierzowa
      Attachment tractor side
      Quick disconnect yoke
      Widłak szybkozłączny
      Attachment machine side
      Quick disconnect yoke
      Widłak szybkozłączny
      Outer tube wall thickness
      3,7mm
      3.7
      Outer tube large outside diameter
      54
      54mm
      Inner tube wall thickness
      5,8mm
      5.8
      Inner tube large outside diameter
      45,6mm
      45.6
      Connection tractor side
      1.3/8-6
      Connection machine side
      1.3/8-6
