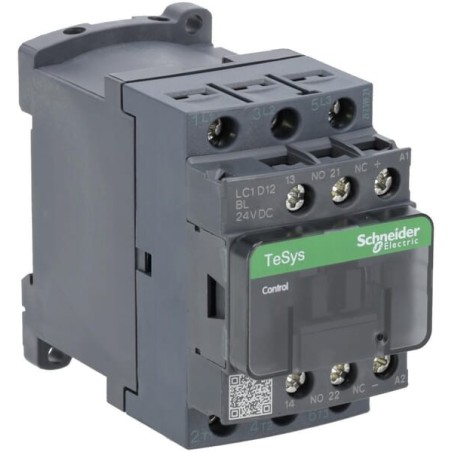

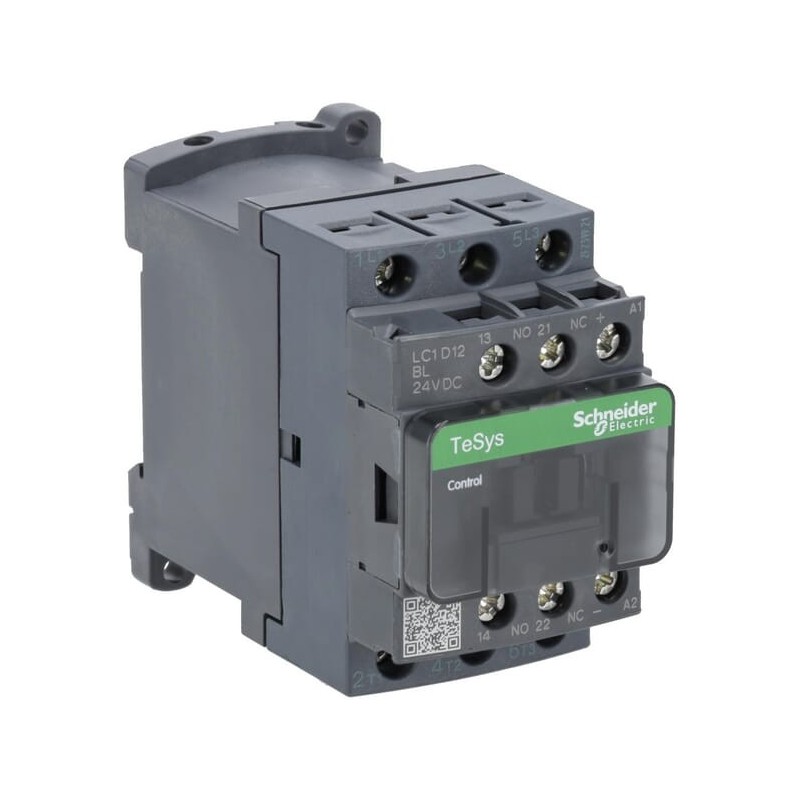

      Contacter 12A 5,5kW - LC1D12BL
      Contacter 12A 5,5kW - LC1D12BL
      Contacter 12A 5,5kW - LC1D12BL

      Contacter 12A 5,5kW - LC1D12BL

      Review (0)
      zł264.22
      Tax Included
      Return policy:14
      Contacter 12A 5,5kW - LC1D12BL - Depth: 86, 86mm; Height: 77, 77mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contacter 12A 5,5kW - LC1D12BL

      Reference number: LC1D12BL.

      Product parameters:

      • Depth: 86, 86mm
      • Height: 77, 77mm
      • Manufacturer Product ID: LC1D12BL
      • Modular version: No, Nie
      • Number of auxiliary contacts as normally closed contact: 1
      • Number of auxiliary contacts as normally open contact: 1
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 24-24, 24-24V
      • Rated control supply voltage Us at DC: 24-24, 24.0-24.0V
      • Rated operating current (Ie) at AC-1, 400 V: 25, 25A
      • Rated operating current (Ie) at AC-3, 400 V: 12, 12A
      • Rated operation current Ie at AC-4, 400 V: 7.5, 7,5A
      • Rated operation power at AC-3, 400 V: 5.5, 5,5kW
      • Rated operation power at AC-4, 400 V: 3, 3kW
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: DC
      • Width: 44, 44mm
      Schneider-Electric
      LC1D12BL

      Data sheet

      Width
      44
      44mm
      Height
      77
      77mm
      Depth
      86
      86mm
      Manufacturer Product ID
      LC1D12BL
      Operating voltage AC 50 Hz
      24-24
      24-24V
      Voltage type
      DC
      DC
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      25
      25A
      Rated operating current (Ie) at AC-3, 400 V
      12
      12A
      Rated operation power at AC-3, 400 V
      5,5kW
      5.5
      Rated operation current Ie at AC-4, 400 V
      7,5A
      7.5
      Rated operation power at AC-4, 400 V
      3
      3kW
      Number of auxiliary contacts as normally open contact
      1
      1
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      1
      1
      Rated control supply voltage Us at DC
      24-24
      24.0-24.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Number of normally closed contacts as main contact

      Specific References
