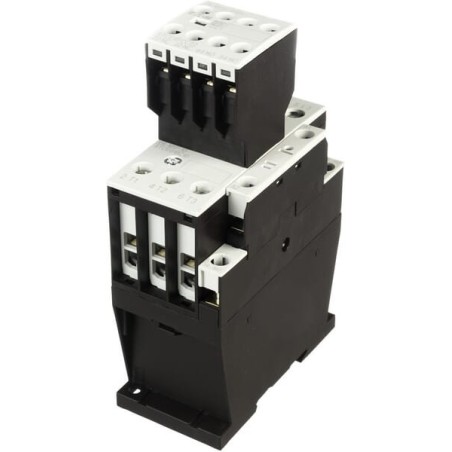

      Contactor 32A 15kW - DILM3232230VAC
      Contactor 32A 15kW - DILM3232230VAC
      Contactor 32A 15kW - DILM3232230VAC
      Contactor 32A 15kW - DILM3232230VAC
      Contactor 32A 15kW - DILM3232230VAC
      Contactor 32A 15kW - DILM3232230VAC
      Contactor 32A 15kW - DILM3232230VAC

      Contactor 32A 15kW - DILM3232230VAC

      Review (0)
      zł856.86
      Tax Included
      Return policy:14
      Contactor 32A 15kW - DILM3232230VAC - Depth: 138, 138mm; Height: 85, 85mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contactor 32A 15kW - DILM3232230VAC

      Reference number: DILM3232230VAC.

      Product parameters:

      • Depth: 138, 138mm
      • Height: 85, 85mm
      • Manufacturer Product ID: 277356
      • Modular version: No, Nie
      • Number of auxiliary contacts as normally closed contact: 2
      • Number of auxiliary contacts as normally open contact: 3
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 230-230, 230-230V
      • Operating voltage AC 60 Hz: 240-240, 240-240V
      • Rated control supply voltage Us at AC 50HZ: 230-230, 230.0-230.0V
      • Rated control supply voltage Us at AC 60HZ: 240-240, 240.0-240.0V
      • Rated control supply voltage Us at DC: 0-0, 0.0-0.0V
      • Rated operating current (Ie) at AC-1, 400 V: 45, 45A
      • Rated operating current (Ie) at AC-3, 400 V: 32, 32A
      • Rated operation current Ie at AC-4, 400 V: 15, 15A
      • Rated operation power at AC-3, 400 V: 15, 15kW
      • Rated operation power at AC-4, 400 V: 7, 7kW
      • Rated operation power NEMA: 14.9, 14,9kW
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: AC
      • Width: 45, 45mm
      Eaton
      DILM3232230VAC

      Data sheet

      Width
      45
      45mm
      Height
      85
      85mm
      Depth
      138
      138mm
      Manufacturer Product ID
      277356
      Operating voltage AC 50 Hz
      230-230
      230-230V
      Operating voltage AC 60 Hz
      240-240
      240-240V
      Voltage type
      AC
      AC
      Rated control supply voltage Us at AC 50HZ
      230-230
      230.0-230.0V
      Rated control supply voltage Us at AC 60HZ
      240-240
      240.0-240.0V
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      45
      45A
      Rated operating current (Ie) at AC-3, 400 V
      32
      32A
      Rated operation power at AC-3, 400 V
      15
      15kW
      Rated operation current Ie at AC-4, 400 V
      15
      15A
      Rated operation power at AC-4, 400 V
      7
      7kW
      Number of auxiliary contacts as normally open contact
      3
      3
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      2
      2
      Rated control supply voltage Us at DC
      0-0
      0.0-0.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      14,9kW
      14.9
      Number of normally closed contacts as main contact
