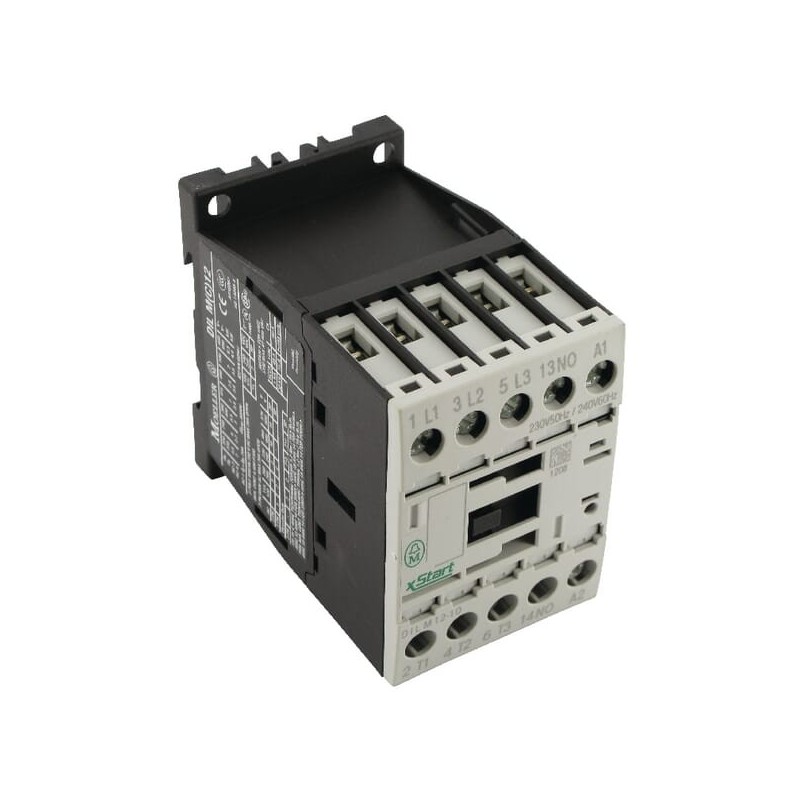

      Contacter 12A 5,5kW - DILM1210230VAC
      Contacter 12A 5,5kW - DILM1210230VAC

      Contacter 12A 5,5kW - DILM1210230VAC

      Review (0)
      zł295.72
      Tax Included
      Return policy:14
      Contacter 12A 5,5kW - DILM1210230VAC - Depth: 75, 75mm; Height: 68, 68mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contacter 12A 5,5kW - DILM1210230VAC

      Reference number: DILM1210230VAC.

      Product parameters:

      • Depth: 75, 75mm
      • Height: 68, 68mm
      • Manufacturer Product ID: 276830
      • Modular version: No, Nie
      • Number of auxiliary contacts as normally open contact: 1
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 230-230, 230-230V
      • Operating voltage AC 60 Hz: 24-690, 24.0-690.0V
      • Rated control supply voltage Us at AC 50HZ: 230-230, 230.0-230.0V
      • Rated control supply voltage Us at AC 60HZ: 240-240, 240.0-240.0V
      • Rated control supply voltage Us at DC: 0-0, 0.0-0.0V
      • Rated operating current (Ie) at AC-1, 400 V: 22, 22A
      • Rated operating current (Ie) at AC-3, 400 V: 12, 12A
      • Rated operation current Ie at AC-4, 400 V: 7, 7A
      • Rated operation power at AC-3, 400 V: 5.5, 5,5kW
      • Rated operation power at AC-4, 400 V: 3, 3kW
      • Rated operation power NEMA: 7.4, 7,4kW
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: AC
      • Width: 45, 45mm
      Eaton
      DILM1210230VAC
      9 Items

      Data sheet

      Width
      45
      45mm
      Height
      68
      68mm
      Depth
      75
      75mm
      Manufacturer Product ID
      276830
      Operating voltage AC 50 Hz
      230-230
      230-230V
      Operating voltage AC 60 Hz
      24-690
      24.0-690.0V
      Voltage type
      AC
      AC
      Rated control supply voltage Us at AC 50HZ
      230-230
      230.0-230.0V
      Rated control supply voltage Us at AC 60HZ
      240-240
      240.0-240.0V
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      22
      22A
      Rated operating current (Ie) at AC-3, 400 V
      12
      12A
      Rated operation power at AC-3, 400 V
      5,5kW
      5.5
      Rated operation current Ie at AC-4, 400 V
      7
      7A
      Rated operation power at AC-4, 400 V
      3
      3kW
      Number of auxiliary contacts as normally open contact
      1
      1
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      Rated control supply voltage Us at DC
      0-0
      0.0-0.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      7,4kW
      7.4
      Number of normally closed contacts as main contact
