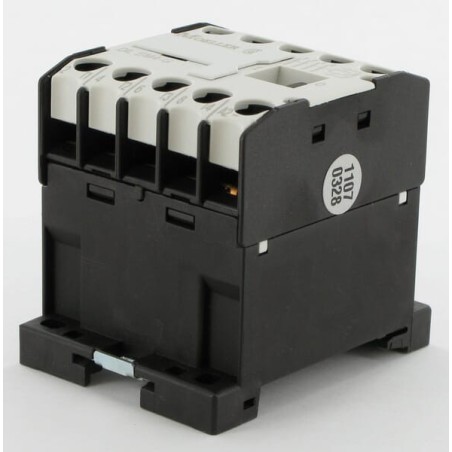

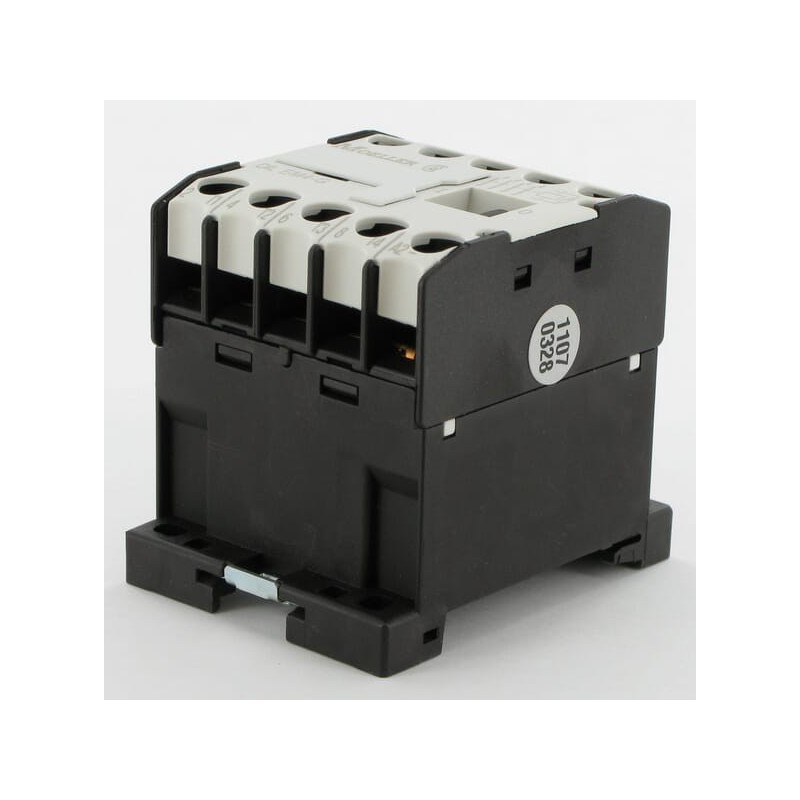

      Contactor - DILEM4G
      Contactor - DILEM4G
      Contactor - DILEM4G

      Contactor - DILEM4G

      Review (0)
      zł275.54
      Tax Included
      Return policy:14
      Contactor - DILEM4G - Depth: 54, 54mm; Height: 58, 58mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contactor - DILEM4G

      Reference number: DILEM4G.

      Product parameters:

      • Depth: 54, 54mm
      • Height: 58, 58mm
      • Manufacturer Product ID: 012701
      • Modular version: No, Nie
      • Number of normally open contacts as main contact: 4
      • Operating voltage AC 50 Hz: 24-24, 24-24V
      • Operating voltage AC 60 Hz: 24-690, 24.0-690.0V
      • Rated control supply voltage Us at AC 50HZ: 0-0, 0.0-0.0V
      • Rated control supply voltage Us at AC 60HZ: 0-0, 0.0-0.0V
      • Rated control supply voltage Us at DC: 24-24, 24.0-24.0V
      • Rated operating current (Ie) at AC-1, 400 V: 22, 22A
      • Rated operating current (Ie) at AC-3, 400 V: 9, 9A
      • Rated operation current Ie at AC-4, 400 V: 6.6, 6,6A
      • Rated operation power at AC-3, 400 V: 4, 4kW
      • Rated operation power at AC-4, 400 V: 3, 3kW
      • Rated operation power NEMA: 3.7, 3,7kW
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: DC
      • Width: 45, 45mm
      Eaton
      DILEM4G

      Data sheet

      Width
      45
      45mm
      Height
      58
      58mm
      Depth
      54
      54mm
      Manufacturer Product ID
      012701
      Operating voltage AC 50 Hz
      24-24
      24-24V
      Operating voltage AC 60 Hz
      24-690
      24.0-690.0V
      Voltage type
      DC
      DC
      Rated control supply voltage Us at AC 50HZ
      0-0
      0.0-0.0V
      Rated control supply voltage Us at AC 60HZ
      0-0
      0.0-0.0V
      Number of normally open contacts as main contact
      4
      4
      Rated operating current (Ie) at AC-1, 400 V
      22
      22A
      Rated operating current (Ie) at AC-3, 400 V
      9
      9A
      Rated operation power at AC-3, 400 V
      4
      4kW
      Rated operation current Ie at AC-4, 400 V
      6,6A
      6.6
      Rated operation power at AC-4, 400 V
      3
      3kW
      Number of auxiliary contacts as normally open contact
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      Rated control supply voltage Us at DC
      24-24
      24.0-24.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      3,7kW
      3.7
      Number of normally closed contacts as main contact
