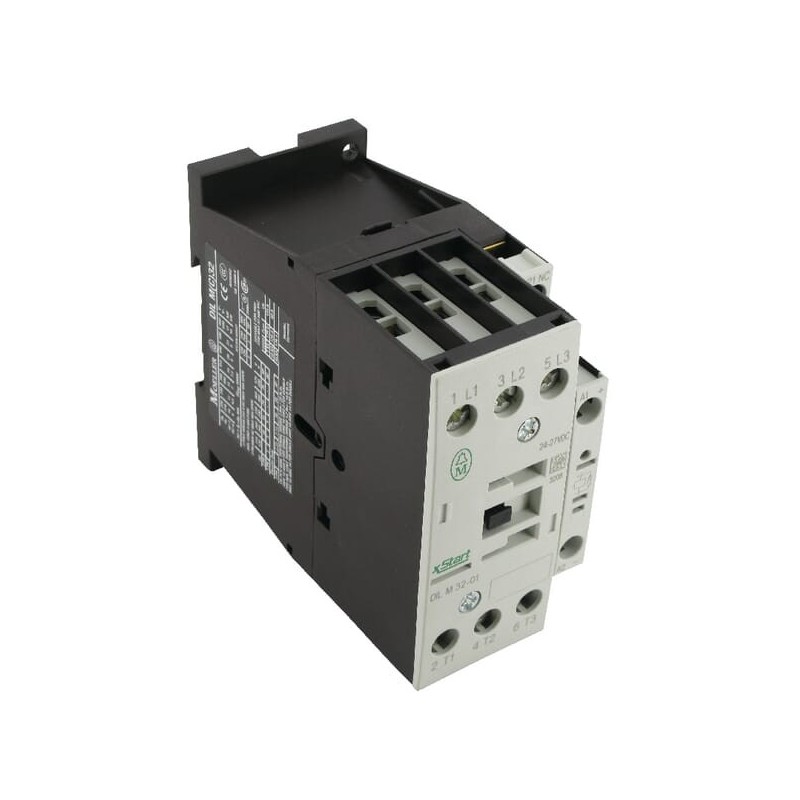

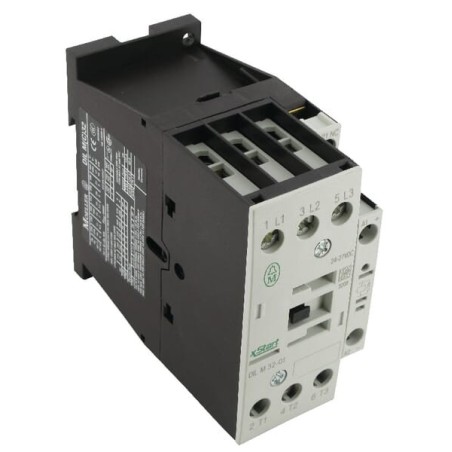

      Contactor 32A 15kW - DILM3201RDC24
      Contactor 32A 15kW - DILM3201RDC24

      Contactor 32A 15kW - DILM3201RDC24

      Review (0)
      zł1,224.16
      Tax Included
      Return policy:14
      Contactor 32A 15kW - DILM3201RDC24 - Depth: 97, 97mm; Height: 85, 85mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contactor 32A 15kW - DILM3201RDC24

      Reference number: DILM3201RDC24.

      Product parameters:

      • Depth: 97, 97mm
      • Height: 85, 85mm
      • Manufacturer Product ID: 277306
      • Modular version: No, Nie
      • Number of auxiliary contacts as normally closed contact: 1
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 24-24, 24-24V
      • Operating voltage AC 60 Hz: 24-690, 24.0-690.0V
      • Rated control supply voltage Us at AC 50HZ: 0-0, 0.0-0.0V
      • Rated control supply voltage Us at AC 60HZ: 0-0, 0.0-0.0V
      • Rated control supply voltage Us at DC: 24-27, 24.0-27.0V
      • Rated operating current (Ie) at AC-1, 400 V: 45, 45A
      • Rated operating current (Ie) at AC-3, 400 V: 32, 32A
      • Rated operation current Ie at AC-4, 400 V: 15, 15A
      • Rated operation power at AC-3, 400 V: 15, 15kW
      • Rated operation power at AC-4, 400 V: 7, 7kW
      • Rated operation power NEMA: 14.9, 14,9kW
      • Technical information: - zaciski śrubowe
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: DC
      • Width: 45, 45mm
      Eaton
      DILM3201RDC24

      Data sheet

      Width
      45
      45mm
      Height
      85
      85mm
      Technical information
      - zaciski śrubowe
      Depth
      97
      97mm
      Manufacturer Product ID
      277306
      Operating voltage AC 50 Hz
      24-24
      24-24V
      Operating voltage AC 60 Hz
      24-690
      24.0-690.0V
      Voltage type
      DC
      DC
      Rated control supply voltage Us at AC 50HZ
      0-0
      0.0-0.0V
      Rated control supply voltage Us at AC 60HZ
      0-0
      0.0-0.0V
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      45
      45A
      Rated operating current (Ie) at AC-3, 400 V
      32
      32A
      Rated operation power at AC-3, 400 V
      15
      15kW
      Rated operation current Ie at AC-4, 400 V
      15
      15A
      Rated operation power at AC-4, 400 V
      7
      7kW
      Number of auxiliary contacts as normally open contact
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      1
      1
      Rated control supply voltage Us at DC
      24-27
      24.0-27.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      14,9kW
      14.9
      Number of normally closed contacts as main contact
