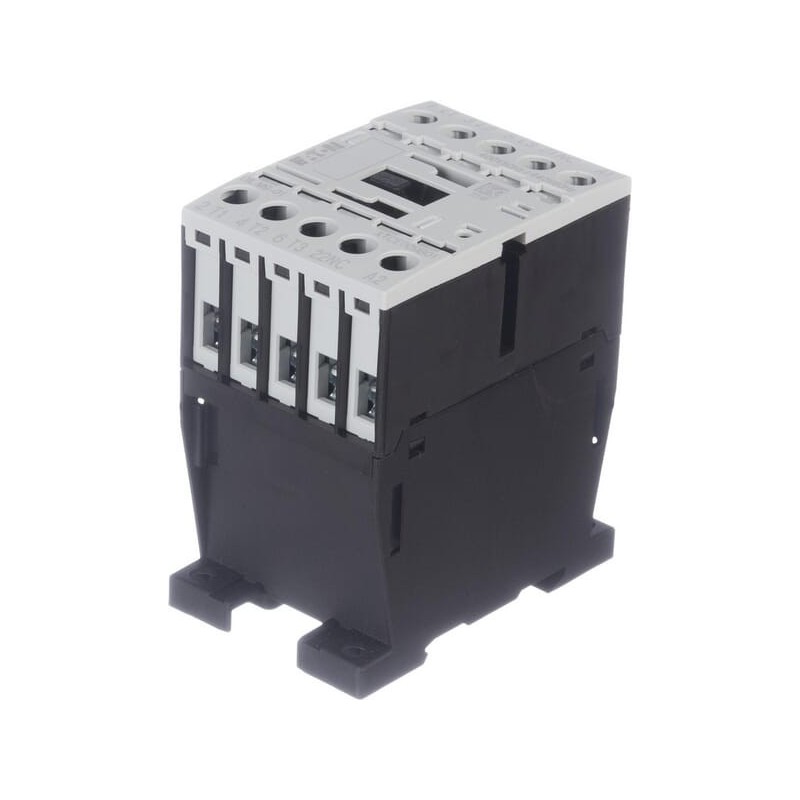

      Contacter 9A 4kW - DILM901400440VAC
      Contacter 9A 4kW - DILM901400440VAC
      Contacter 9A 4kW - DILM901400440VAC

      Contacter 9A 4kW - DILM901400440VAC

      Review (0)
      zł252.20
      Tax Included
      Return policy:14
      Contacter 9A 4kW - DILM901400440VAC - Depth: 75, 75mm; Height: 68, 68mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contacter 9A 4kW - DILM901400440VAC

      Reference number: DILM901400440VAC.

      Product parameters:

      • Depth: 75, 75mm
      • Height: 68, 68mm
      • Manufacturer Product ID: 276727
      • Modular version: No, Nie
      • Number of auxiliary contacts as normally closed contact: 1
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 400-400, 400-400V
      • Operating voltage AC 60 Hz: 440-440, 440-440V
      • Rated control supply voltage Us at AC 50HZ: 400-400, 400.0-400.0V
      • Rated control supply voltage Us at AC 60HZ: 440-440, 440.0-440.0V
      • Rated control supply voltage Us at DC: 0-0, 0.0-0.0V
      • Rated operating current (Ie) at AC-1, 400 V: 22, 22A
      • Rated operating current (Ie) at AC-3, 400 V: 9, 9A
      • Rated operation current Ie at AC-4, 400 V: 6, 6A
      • Rated operation power at AC-3, 400 V: 4, 4kW
      • Rated operation power at AC-4, 400 V: 2.5, 2,5kW
      • Rated operation power NEMA: 3.7, 3,7kW
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: AC
      • Width: 45, 45mm
      Eaton
      DILM901400440VAC

      Data sheet

      Width
      45
      45mm
      Height
      68
      68mm
      Depth
      75
      75mm
      Manufacturer Product ID
      276727
      Operating voltage AC 50 Hz
      400-400
      400-400V
      Operating voltage AC 60 Hz
      440-440
      440-440V
      Voltage type
      AC
      AC
      Rated control supply voltage Us at AC 50HZ
      400-400
      400.0-400.0V
      Rated control supply voltage Us at AC 60HZ
      440-440
      440.0-440.0V
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      22
      22A
      Rated operating current (Ie) at AC-3, 400 V
      9
      9A
      Rated operation power at AC-3, 400 V
      4
      4kW
      Rated operation current Ie at AC-4, 400 V
      6
      6A
      Rated operation power at AC-4, 400 V
      2,5kW
      2.5
      Number of auxiliary contacts as normally open contact
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      1
      1
      Rated control supply voltage Us at DC
      0-0
      0.0-0.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      3,7kW
      3.7
      Number of normally closed contacts as main contact
