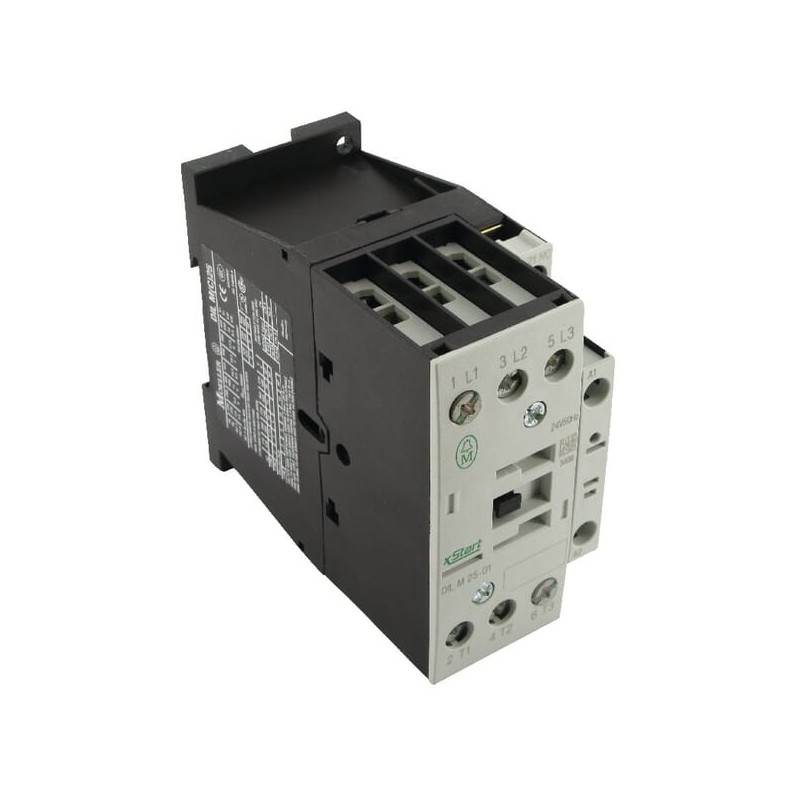

      Contactor 25A 11kW - DILM2501110VAC
      Contactor 25A 11kW - DILM2501110VAC
      Contactor 25A 11kW - DILM2501110VAC
      Contactor 25A 11kW - DILM2501110VAC
      Contactor 25A 11kW - DILM2501110VAC
      Contactor 25A 11kW - DILM2501110VAC
      Contactor 25A 11kW - DILM2501110VAC

      Contactor 25A 11kW - DILM2501110VAC

      Review (0)
      zł527.84
      Tax Included
      Return policy:14
      Contactor 25A 11kW - DILM2501110VAC - Depth: 97, 97mm; Height: 85, 85mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contactor 25A 11kW - DILM2501110VAC

      Reference number: DILM2501110VAC.

      Product parameters:

      • Depth: 97, 97mm
      • Height: 85, 85mm
      • Manufacturer Product ID: 277170
      • Modular version: No, Nie
      • Number of auxiliary contacts as normally closed contact: 1
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 110-110, 110-110V
      • Operating voltage AC 60 Hz: 24-690, 24.0-690.0V
      • Rated control supply voltage Us at AC 50HZ: 110-110, 110.0-110.0V
      • Rated control supply voltage Us at AC 60HZ: 110-110, 110.0-110.0V
      • Rated control supply voltage Us at DC: 0-0, 0.0-0.0V
      • Rated operating current (Ie) at AC-1, 400 V: 45, 45A
      • Rated operating current (Ie) at AC-3, 400 V: 25, 25A
      • Rated operation current Ie at AC-4, 400 V: 13, 13A
      • Rated operation power at AC-3, 400 V: 11, 11kW
      • Rated operation power at AC-4, 400 V: 6, 6kW
      • Rated operation power NEMA: 11, 11kW
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: AC
      • Width: 45, 45mm
      Eaton
      DILM2501110VAC

      Data sheet

      Width
      45
      45mm
      Height
      85
      85mm
      Depth
      97
      97mm
      Manufacturer Product ID
      277170
      Operating voltage AC 50 Hz
      110-110
      110-110V
      Operating voltage AC 60 Hz
      24-690
      24.0-690.0V
      Voltage type
      AC
      AC
      Rated control supply voltage Us at AC 50HZ
      110-110
      110.0-110.0V
      Rated control supply voltage Us at AC 60HZ
      110-110
      110.0-110.0V
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      45
      45A
      Rated operating current (Ie) at AC-3, 400 V
      25
      25A
      Rated operation power at AC-3, 400 V
      11
      11kW
      Rated operation current Ie at AC-4, 400 V
      13
      13A
      Rated operation power at AC-4, 400 V
      6
      6kW
      Number of auxiliary contacts as normally open contact
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      1
      1
      Rated control supply voltage Us at DC
      0-0
      0.0-0.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      11
      11kW
      Number of normally closed contacts as main contact
