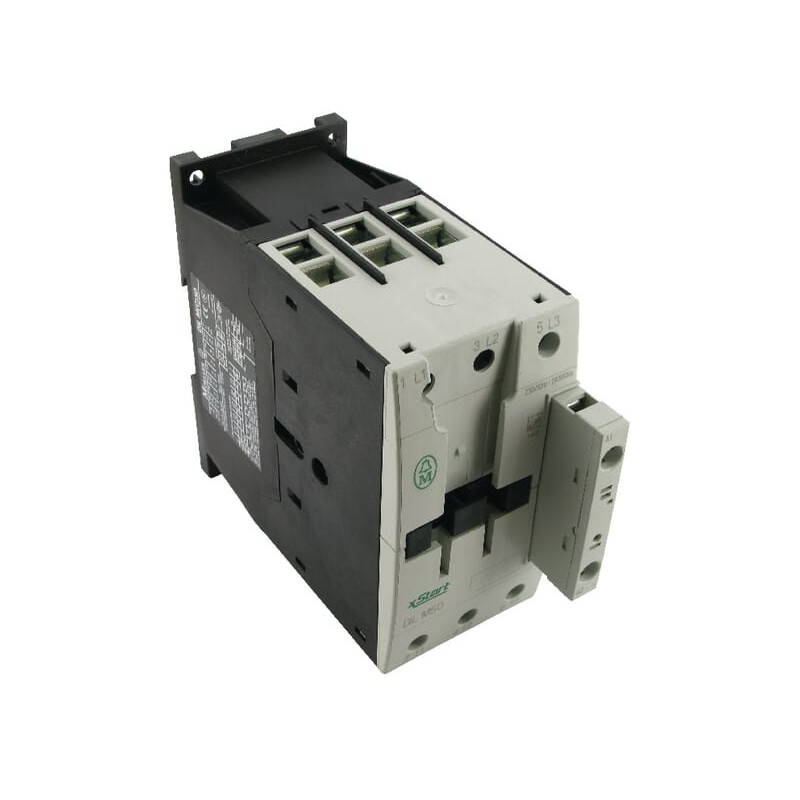

      Contactor 50A 22kW - DILM50RDC24
      Contactor 50A 22kW - DILM50RDC24

      Contactor 50A 22kW - DILM50RDC24

      Review (0)
      zł1,625.61
      Tax Included
      Return policy:14
      Contactor 50A 22kW - DILM50RDC24 - Depth: 132.1, 132,1mm; Height: 115, 115mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contactor 50A 22kW - DILM50RDC24

      Reference number: DILM50RDC24.

      Product parameters:

      • Depth: 132.1, 132,1mm
      • Height: 115, 115mm
      • Manufacturer Product ID: 277844
      • Modular version: No, Nie
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 24-24, 24-24V
      • Rated control supply voltage Us at AC 50HZ: 0-0, 0.0-0.0V
      • Rated control supply voltage Us at AC 60HZ: 0-0, 0.0-0.0V
      • Rated control supply voltage Us at DC: 24-27, 24.0-27.0V
      • Rated operating current (Ie) at AC-1, 400 V: 80
      • Rated operating current (Ie) at AC-3, 400 V: 50
      • Rated operation current Ie at AC-4, 400 V: 21
      • Rated operation power at AC-3, 400 V: 22
      • Rated operation power at AC-4, 400 V: 10
      • Rated operation power NEMA: 29.8
      • Technical information: - zaciski śrubowe
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: DC
      • Width: 55, 55mm
      Eaton
      DILM50RDC24

      Data sheet

      Width
      55
      55mm
      Height
      115
      115mm
      Technical information
      - zaciski śrubowe
      Depth
      132,1mm
      132.1
      Manufacturer Product ID
      277844
      Operating voltage AC 50 Hz
      24-24
      24-24V
      Voltage type
      DC
      DC
      Rated control supply voltage Us at AC 50HZ
      0-0
      0.0-0.0V
      Rated control supply voltage Us at AC 60HZ
      0-0
      0.0-0.0V
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      80
      Rated operating current (Ie) at AC-3, 400 V
      50
      Rated operation power at AC-3, 400 V
      22
      Rated operation current Ie at AC-4, 400 V
      21
      Rated operation power at AC-4, 400 V
      10
      Number of auxiliary contacts as normally open contact
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      Rated control supply voltage Us at DC
      24-27
      24.0-27.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      29.8
      Number of normally closed contacts as main contact
