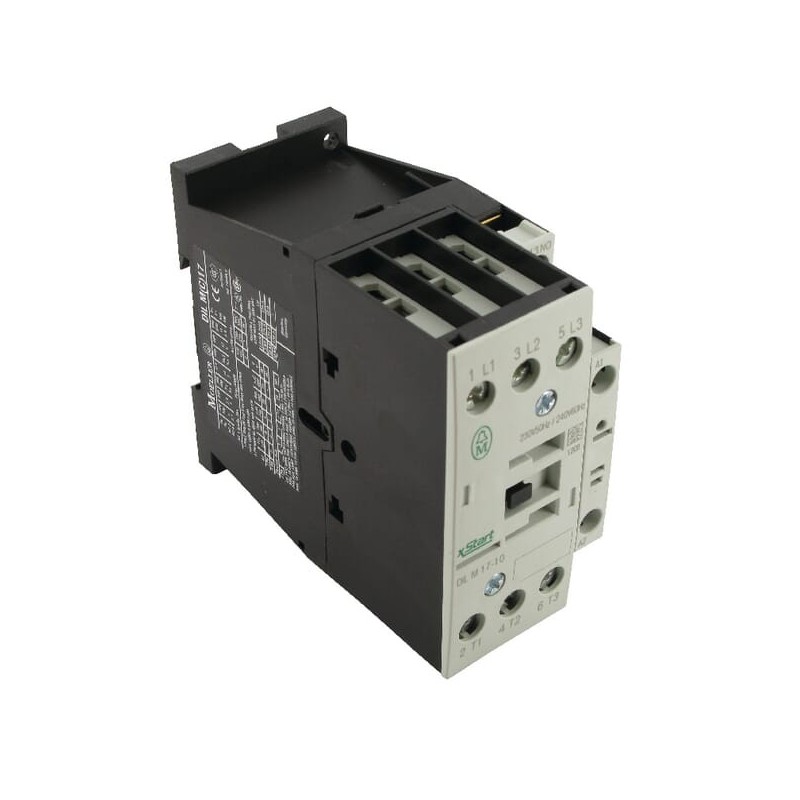

      Contactor 17A 7.5kW - DILM1710230VAC
      Contactor 17A 7.5kW - DILM1710230VAC

      Contactor 17A 7.5kW - DILM1710230VAC

      Review (0)
      zł351.53
      Tax Included
      Return policy:14
      Contactor 17A 7.5kW - DILM1710230VAC - Depth: 97, 97mm; Height: 85, 85mm.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Contactor 17A 7.5kW - DILM1710230VAC

      Reference number: DILM1710230VAC.

      Product parameters:

      • Depth: 97, 97mm
      • Height: 85, 85mm
      • Manufacturer Product ID: 277004
      • Modular version: No, Nie
      • Number of auxiliary contacts as normally open contact: 1
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 230-230, 230-230V
      • Operating voltage AC 60 Hz: 24-690, 24.0-690.0V
      • Rated control supply voltage Us at AC 50HZ: 230-230, 230.0-230.0V
      • Rated control supply voltage Us at AC 60HZ: 240-240, 240.0-240.0V
      • Rated control supply voltage Us at DC: 0-0, 0.0-0.0V
      • Rated operating current (Ie) at AC-1, 400 V: 40, 40A
      • Rated operating current (Ie) at AC-3, 400 V: 17, 17A
      • Rated operation current Ie at AC-4, 400 V: 10, 10A
      • Rated operation power at AC-3, 400 V: 7.5, 7,5kW
      • Rated operation power at AC-4, 400 V: 4.5, 4,5kW
      • Rated operation power NEMA: 7.4, 7,4kW
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: AC
      • Width: 45, 45mm
      Eaton
      DILM1710230VAC

      Data sheet

      Width
      45
      45mm
      Height
      85
      85mm
      Depth
      97
      97mm
      Manufacturer Product ID
      277004
      Operating voltage AC 50 Hz
      230-230
      230-230V
      Operating voltage AC 60 Hz
      24-690
      24.0-690.0V
      Voltage type
      AC
      AC
      Rated control supply voltage Us at AC 50HZ
      230-230
      230.0-230.0V
      Rated control supply voltage Us at AC 60HZ
      240-240
      240.0-240.0V
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      40
      40A
      Rated operating current (Ie) at AC-3, 400 V
      17
      17A
      Rated operation power at AC-3, 400 V
      7,5kW
      7.5
      Rated operation current Ie at AC-4, 400 V
      10
      10A
      Rated operation power at AC-4, 400 V
      4,5kW
      4.5
      Number of auxiliary contacts as normally open contact
      1
      1
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      Rated control supply voltage Us at DC
      0-0
      0.0-0.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      7,4kW
      7.4
      Number of normally closed contacts as main contact
