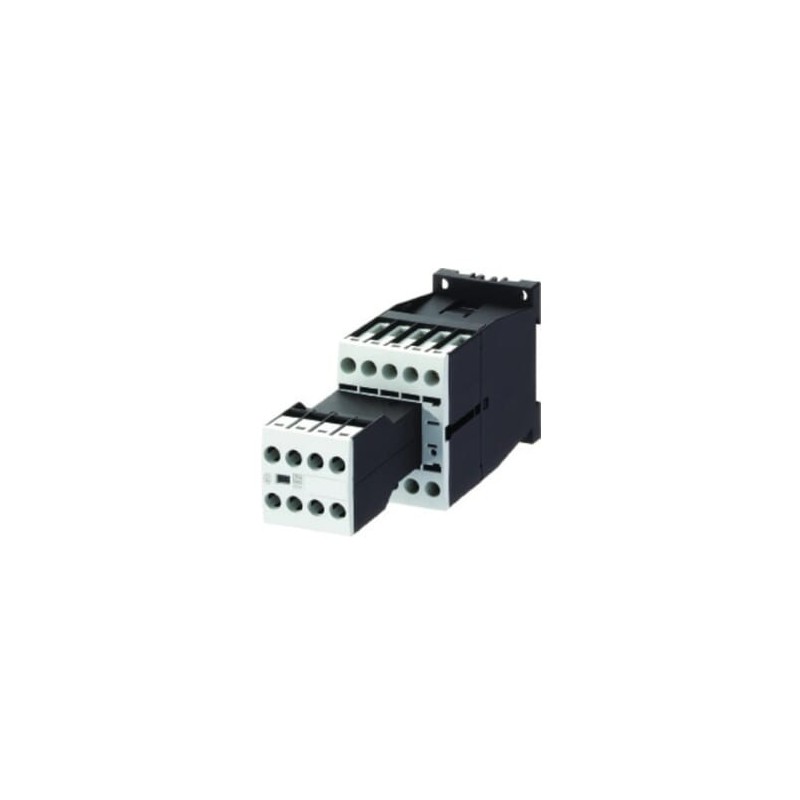

      Contacter 9A 4kW - DILM92124VDC

      Reference number: DILM92124VDC.

      Product parameters:

      • Depth: 117
      • Height: 68, 68mm
      • Manufacturer Product ID: 276775
      • Modular version: No, Nie
      • Number of auxiliary contacts as normally closed contact: 1
      • Number of auxiliary contacts as normally open contact: 2
      • Number of normally open contacts as main contact: 3
      • Operating voltage AC 50 Hz: 24-24, 24-24V
      • Operating voltage AC 60 Hz: 24-690, 24.0-690.0V
      • Rated control supply voltage Us at AC 50HZ: 0-0, 0.0-0.0V
      • Rated control supply voltage Us at AC 60HZ: 0-0, 0.0-0.0V
      • Rated control supply voltage Us at DC: 24-24, 24.0-24.0V
      • Rated operating current (Ie) at AC-1, 400 V: 22, 22A
      • Rated operating current (Ie) at AC-3, 400 V: 9, 9A
      • Rated operation current Ie at AC-4, 400 V: 6, 6A
      • Rated operation power at AC-3, 400 V: 4, 4kW
      • Rated operation power at AC-4, 400 V: 2.5, 2,5kW
      • Rated operation power NEMA: 3.7, 3,7kW
      • Technical information: - zaciski śrubowe
      • Type of electrical connection of main circuit: Screw connection, Połączenie śrubowe
      • Voltage type: DC
      • Width: 45, 45mm
      Eaton
      DILM92124VDC

      Data sheet

      Width
      45
      45mm
      Height
      68
      68mm
      Technical information
      - zaciski śrubowe
      Depth
      117
      Manufacturer Product ID
      276775
      Operating voltage AC 50 Hz
      24-24
      24-24V
      Operating voltage AC 60 Hz
      24-690
      24.0-690.0V
      Voltage type
      DC
      DC
      Rated control supply voltage Us at AC 50HZ
      0-0
      0.0-0.0V
      Rated control supply voltage Us at AC 60HZ
      0-0
      0.0-0.0V
      Number of normally open contacts as main contact
      3
      3
      Rated operating current (Ie) at AC-1, 400 V
      22
      22A
      Rated operating current (Ie) at AC-3, 400 V
      9
      9A
      Rated operation power at AC-3, 400 V
      4
      4kW
      Rated operation current Ie at AC-4, 400 V
      6
      6A
      Rated operation power at AC-4, 400 V
      2,5kW
      2.5
      Number of auxiliary contacts as normally open contact
      2
      2
      Modular version
      Nie
      No
      Number of auxiliary contacts as normally closed contact
      1
      1
      Rated control supply voltage Us at DC
      24-24
      24.0-24.0V
      Type of electrical connection of main circuit
      Połączenie śrubowe
      Screw connection
      Rated operation power NEMA
      3,7kW
      3.7
      Number of normally closed contacts as main contact
