Data sheet

Width

30
30mm

Height

48
48mm

Depth

77
77mm

Manufacturer Product ID

215352

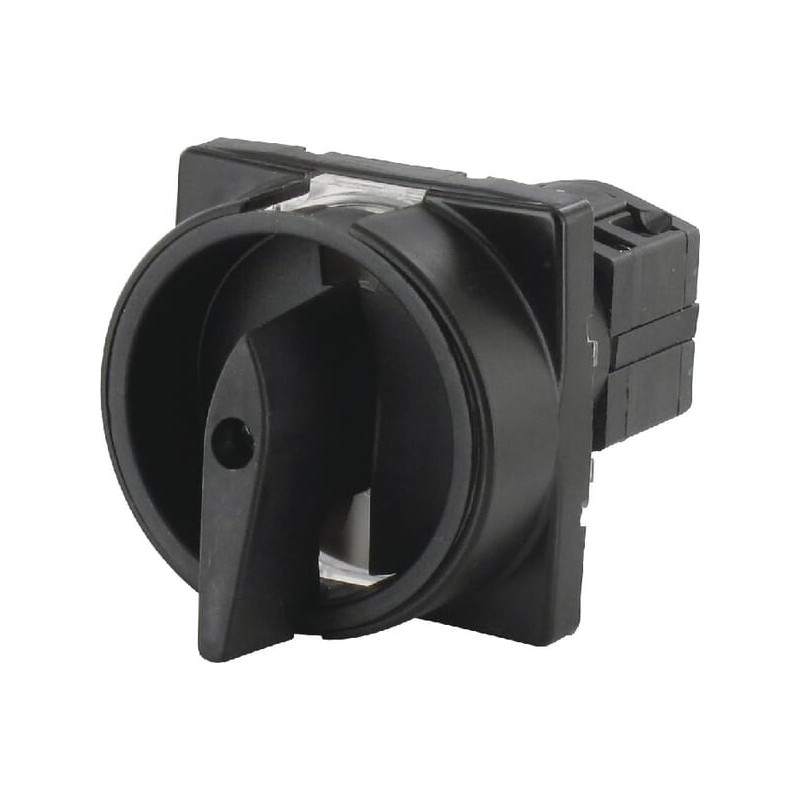

Type of control element

Door coupling rotary drive
Napęd obrotowy na drzwi

Colour control element

Black
Czarny

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Number of poles

2
2

Degree of protection (IP), front side

65
65

Device construction

Built-in device fixed built-in technique
Urządzenie mocowane na stałe

Interlockable

Tak
Yes

Max. rated operation voltage Ue AC

500

Motor drive integrated

Nie
No

Motor drive optional

Nie
No

Number of switches

1
1

Rated operating voltage

690-690
690.0-690.0V

Rated operation power at AC-23, 400 V

3

Rated permanent current at AC-23, 400 V

6.6

Rated permanent current Iu

10
10A

Suitable for distribution board installation

Nie
No

Suitable for front mounting 4-hole

Tak
Yes

Suitable for front mounting centre

Nie
No

Suitable for intermediate mounting

Nie
No

Type of electrical connection of main circuit

Połączenie śrubowe
Screw connection

Version as emergency stop installation

Nie
No

Version as main switch

Tak
Yes

Version as maintenance-/service switch

Nie
No

Version as reversing switch

Nie
No

Version as safety switch

Nie
No

Voltage release optional

Nie
No

Number of auxiliary contacts as change-over contact

With pre-assembled cabling

Nie
No
