Data sheet

Insulation class

65
65

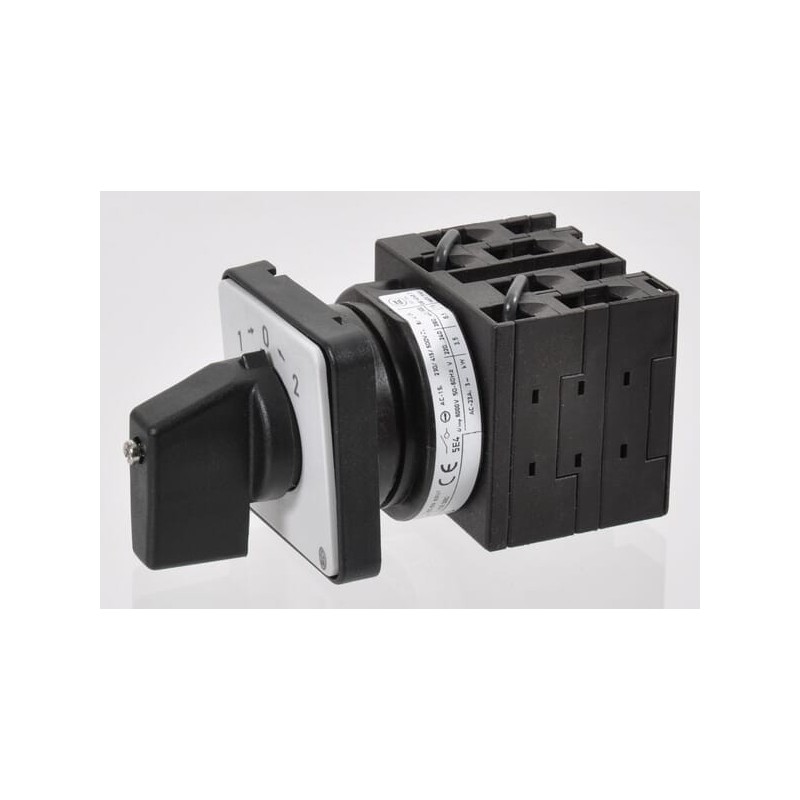

Model

Reversing switch

Housing material

Plastic
Tworzywo sztuczne

Type of electric connection

Połączenie śrubowe
Screw connection

Manufacturer Product ID

015112

Spring-return

Tak
Yes

Type of control element

Short thumb-grip

With retraction in 0-position

Yes

Number of contacts as normally closed contact

Number of contacts as normally open contact

Rated current

20
20A

Number of contacts

3
3

Number of contacts as change-over contact

Rated operating current (Ie) at AC-3, 400 V

11.5

Rated operation power at AC-3, 400 V

4

Number of auxiliary contacts as normally open contact

Number of auxiliary contacts as normally closed contact

Number of poles

3

Degree of protection (IP), front side

65

Rated permanent current Iu

20

Suitable for distribution board installation

No

Suitable for intermediate mounting

No

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as change-over contact

Complete device in housing

No

With zero (off) position

Yes
