      Relay 2-P 24V/AC - 553480240054 - 1-phase motor load, AC3 mode [230 V AC]: 0,37kW; Coil voltage: 24V.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

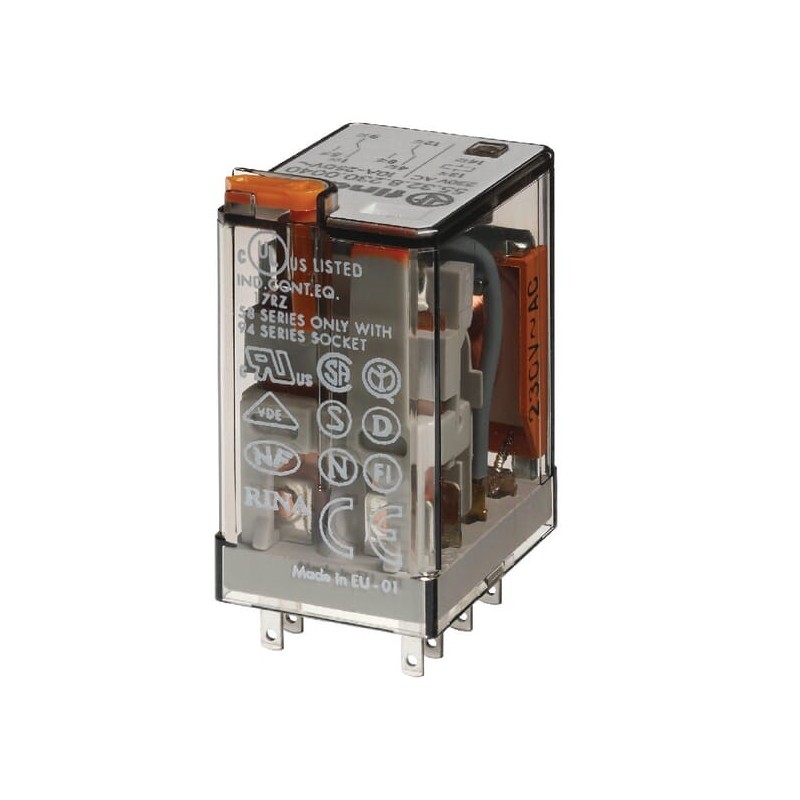

      Relay 2-P 24V/AC - 553480240054

      Reference number: 553480240054.

      Product parameters:

      • 1-phase motor load, AC3 mode [230 V AC]: 0,37kW
      • Coil voltage: 24V
      • Complete with socket: Nie
      • Contact surface: AgNi
      • Contact type: Pojedynczy
      • Depth: 27,7mm
      • Drive, polarization: Niespolaryzowany
      • Drive, switching attitude: Monostabilny
      • Height: 37,2mm
      • Manufacturer Product ID: 55.34.8.024.0054
      • Material contact body: Stop srebra i niklu (AgNi)
      • Max. starting current: 15A
      • Max. switching current DC1: 30/110/230 V: 10/0,25/0,12A
      • Max. switching power AC1: 2500W
      • Max. switching power AC15: 500W
      • Max. voltage: 400V
      • Min. switching power (mW) (V/mA): 300 (5/5)
      • Nominal current: 7A
      • Number of contacts: 2
      • Number of contacts as change-over contact: 4
      • Operate/release time (ms): 9/3mls
      • Operating current: 10A
      • Operating voltage AC 50 Hz: 19.2-26.4V
      • Operating voltage AC 60 Hz: 19.2-26.4V
      • Protection class: RT I
      • Rated control supply voltage Us at AC 50HZ: 24.0-24.0V
      • Rated control supply voltage Us at AC 60HZ: 24.0-24.0V
      • Relay technology category according to IEC 61810-7: RT I
      • Type of electric connection: Złącze wtykowe
      • Voltage type: AC
      • Voltage type (operating voltage): AC
      • Voltage type for actuating: AC
      • Width: 20,7mm
      • With detachable clamps: Nie
      • With forced-guided contacts: Nie
      • With LED indication: Tak
      Finder
      553480240054

      Data sheet

      Width (mm)
      20,7mm
      20.7
      Height
      37,2mm
      37.2
      Depth
      27,7mm
      27.7
      Operating current
      10A
      Type of electric connection
      Plug-in connection
      Złącze wtykowe
      With detachable clamps
      Nie
      No
      Manufacturer Product ID
      55.34.8.024.0054
      Operating voltage AC 50 Hz
      19.2-26.4
      19.2-26.4V
      Operating voltage AC 60 Hz
      19.2-26.4
      19.2-26.4V
      Voltage type
      AC
      Number of contacts as normally closed contact
      Number of contacts as normally open contact
      Number of contacts as change-over contact
      4
      4
      Rated control supply voltage Us at AC 50HZ
      24-24
      24.0-24.0
      24.0-24.0V
      Rated control supply voltage Us at AC 60HZ
      24-24
      24.0-24.0
      24.0-24.0V
      With LED indication
      Tak
      Yes
      Material contact
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Type of switch contact
      Pojedynczy
      Single contact
      Coil voltage
      24V
      Max. starting current
      15
      15A
      Complete with socket
      Nie
      No
      Voltage type for actuating
      AC
      AC
      Drive, polarization
      Niespolaryzowany
      Polarity free
      Drive, switching attitude
      Monostabilny
      Mono stable
      With forced-guided contacts
      Nie
      No
      Voltage type (operating voltage)
      AC
      AC
      Nominal current
      7
      7A
      Breaking capacity DC1: 30/110/230V
      10/0,25/0,12A
      Max. voltage (V)
      400V
      Min. switching load MW (V / mA)
      300 (5/5)
      Operate/release time (ms)
      9/3mls
      Protection class
      RT I
      Rated load AC1
      2500W
      Relay technology category according to IEC 61810-7
      RT I
      RT I
      Contact surface
      AgNi
      Rated load AC15
      500W
      Number of contacts
      2
      1-phase motor load, AC3 mode [230 V AC]
      0,37kW
