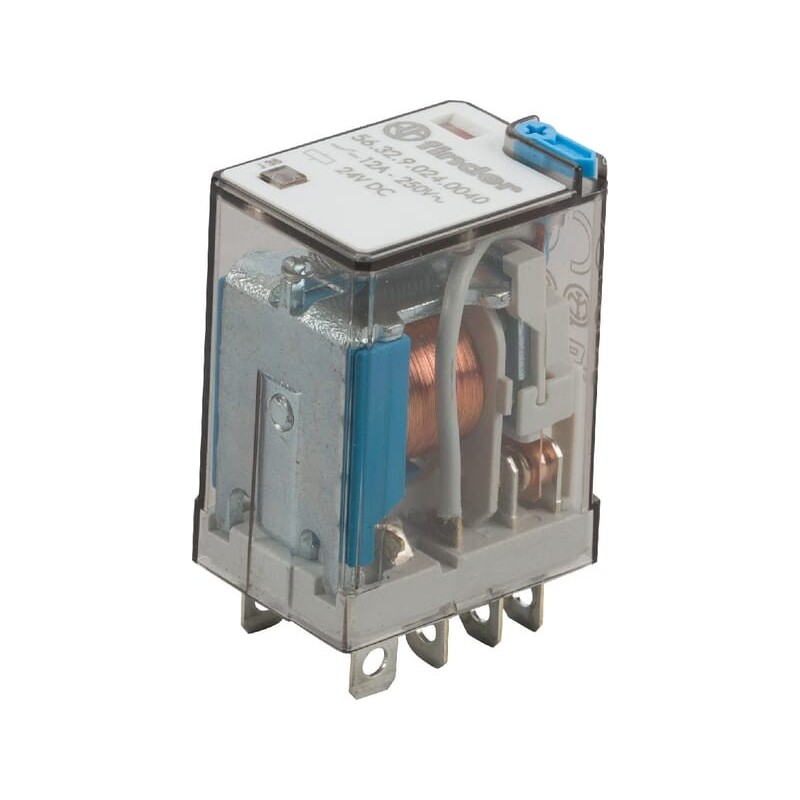

      Relay 2CO 12A 24VDC - 563290240040
      Relay 2CO 12A 24VDC - 563290240040
      Relay 2CO 12A 24VDC - 563290240040

      Relay 2CO 12A 24VDC - 563290240040

      Review (0)
      zł78.00
      Tax Included
      Return policy:14
      Relay 2CO 12A 24VDC - 563290240040 - Complete with socket: No, Nie; Contact type: Single contact, Pojedynczy.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Relay 2CO 12A 24VDC - 563290240040

      Reference number: 563290240040.

      Product parameters:

      • Complete with socket: No, Nie
      • Contact type: Single contact, Pojedynczy
      • Depth: 27.7, 27,7mm
      • Drive, polarization: Polarity free, Niespolaryzowany
      • Drive, switching attitude: Mono stable, Monostabilny
      • Height: 36.8, 36,8mm
      • Manufacturer Product ID: 56.32.9.024.0040
      • Material contact body: Silver tin oxide (AgSnO2), Stop srebra i dwutlenku cyny (AgSnO2)
      • Max. starting current: 20, 20A
      • Nominal current: 12, 12A
      • Number of contacts as change-over contact: 2
      • Operating voltage DC: 19.2-26.4, 19.2-26.4V
      • Rated control supply voltage Us at DC: 24.0-24.0, 24.0-24.0V
      • Relay technology category according to IEC 61810-7: RT I
      • Type of electric connection: Plug-in connection, Złącze wtykowe
      • Voltage type (operating voltage): DC
      • Voltage type for actuating: DC
      • Width: 20.7, 20,7mm
      • With detachable clamps: No, Nie
      • With forced-guided contacts: No, Nie
      • With LED indication: No, Nie
      Finder
      563290240040

      Data sheet

      Width
      20,7mm
      20.7
      Height
      36,8mm
      36.8
      Depth
      27,7mm
      27.7
      Type of electric connection
      Plug-in connection
      Złącze wtykowe
      With detachable clamps
      Nie
      No
      Manufacturer Product ID
      56.32.9.024.0040
      Operating voltage DC
      19.2-26.4
      19.2-26.4V
      Number of contacts as normally closed contact
      Number of contacts as normally open contact
      Number of contacts as change-over contact
      2
      2
      With LED indication
      Nie
      No
      Material contact
      Silver tin oxide (AgSnO2)
      Stop srebra i dwutlenku cyny (AgSnO2)
      Type of switch contact
      Pojedynczy
      Single contact
      Max. starting current
      20
      20A
      Complete with socket
      Nie
      No
      Rated control supply voltage Us at DC
      24.0-24.0
      24.0-24.0V
      Voltage type for actuating
      DC
      DC
      Drive, polarization
      Niespolaryzowany
      Polarity free
      Drive, switching attitude
      Monostabilny
      Mono stable
      With forced-guided contacts
      Nie
      No
      Voltage type (operating voltage)
      DC
      DC
      Nominal current
      12
      12A
      Relay technology category according to IEC 61810-7
      RT I
      RT I
