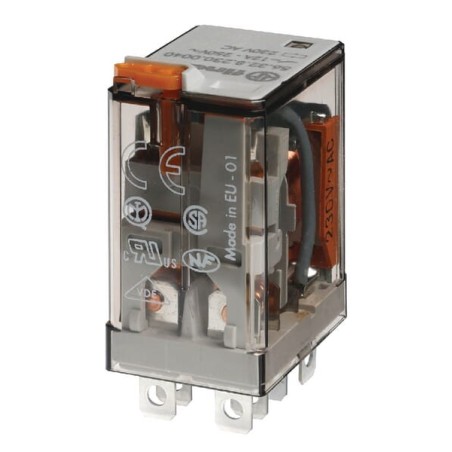

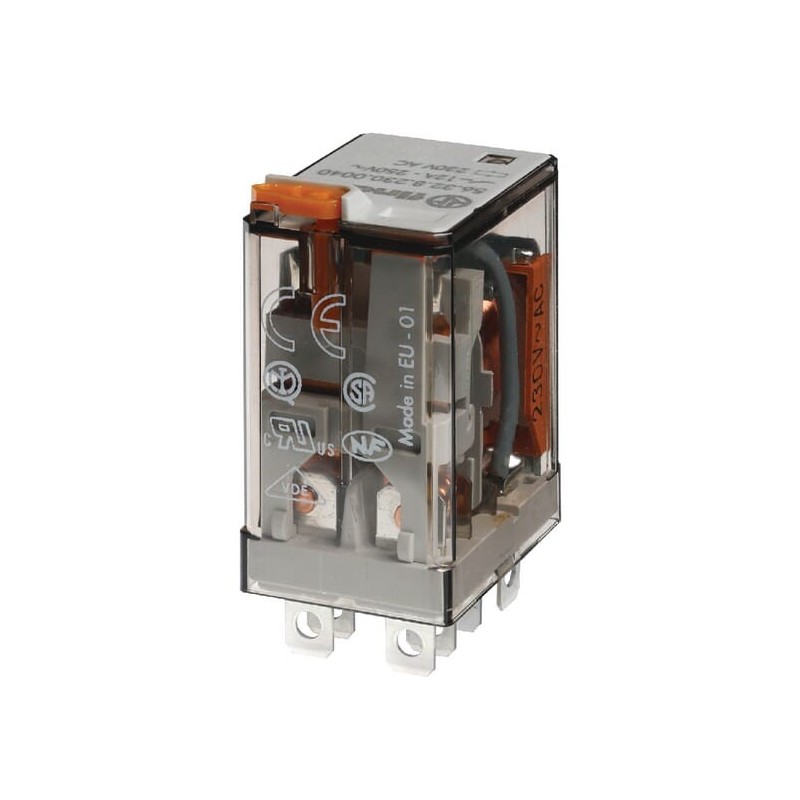

      Relay 2-P 24V/AC - 563280240050
      Relay 2-P 24V/AC - 563280240050
      Relay 2-P 24V/AC - 563280240050
      Relay 2-P 24V/AC - 563280240050
      Relay 2-P 24V/AC - 563280240050

      Relay 2-P 24V/AC - 563280240050

      Review (0)
      zł98.35
      Tax Included
      Return policy:14
      Relay 2-P 24V/AC - 563280240050 - Complete with socket: No, Nie; Contact type: Single contact, Pojedynczy.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Relay 2-P 24V/AC - 563280240050

      Reference number: 563280240050.

      Product parameters:

      • Complete with socket: No, Nie
      • Contact type: Single contact, Pojedynczy
      • Depth: 27.7, 27,7mm
      • Drive, polarization: Polarity free, Niespolaryzowany
      • Drive, switching attitude: Mono stable, Monostabilny
      • Height: 36.8
      • Manufacturer Product ID: 56.32.8.024.0050
      • Material contact body: Silver nickel (AgNi), Stop srebra i niklu (AgNi)
      • Material of contact surface: Silver nickel (AgNi), Stop srebra i niklu (AgNi)
      • Max. starting current: 20, 20A
      • Nominal current: 12
      • Number of contacts as change-over contact: 2
      • Number of contacts as normally closed contact: 2
      • Number of contacts as normally open contact: 2
      • Operating voltage AC 50 Hz: 19.2-26.4, 19.2-26.4V
      • Operating voltage AC 60 Hz: 19.2-26.4, 19.2-26.4V
      • Rated control supply voltage Us at AC 50HZ: 24.0-24.0, 24.0-24.0V
      • Rated control supply voltage Us at AC 60HZ: 24.0-24.0, 24.0-24.0V
      • Relay technology category according to IEC 61810-7: RT I
      • Type of electric connection: Plug-in connection, Złącze wtykowe
      • Voltage type (operating voltage): AC
      • Voltage type for actuating: AC
      • Width: 20.7, 20,7mm
      • With detachable clamps: No, Nie
      • With forced-guided contacts: No, Nie
      • With LED indication: Yes, Tak
      Finder
      563280240050
      14 Items

      Data sheet

      Width
      20,7mm
      20.7
      Height
      36.8
      Depth
      27,7mm
      27.7
      Type of electric connection
      Plug-in connection
      Złącze wtykowe
      With detachable clamps
      Nie
      No
      Manufacturer Product ID
      56.32.8.024.0050
      Operating voltage AC 50 Hz
      19.2-26.4
      19.2-26.4V
      Operating voltage AC 60 Hz
      19.2-26.4
      19.2-26.4V
      Number of contacts as normally closed contact
      2
      2
      Number of contacts as normally open contact
      2
      2
      Number of contacts as change-over contact
      2
      2
      Rated control supply voltage Us at AC 50HZ
      24.0-24.0
      24.0-24.0V
      Rated control supply voltage Us at AC 60HZ
      24.0-24.0
      24.0-24.0V
      With LED indication
      Tak
      Yes
      Material contact
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Material of contact surface
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Type of switch contact
      Pojedynczy
      Single contact
      Max. starting current
      20
      20A
      Complete with socket
      Nie
      No
      Voltage type for actuating
      AC
      AC
      Drive, polarization
      Niespolaryzowany
      Polarity free
      Drive, switching attitude
      Monostabilny
      Mono stable
      With forced-guided contacts
      Nie
      No
      Voltage type (operating voltage)
      AC
      AC
      Nominal current
      12
      Relay technology category according to IEC 61810-7
      RT I
      RT I
      Contact surface
