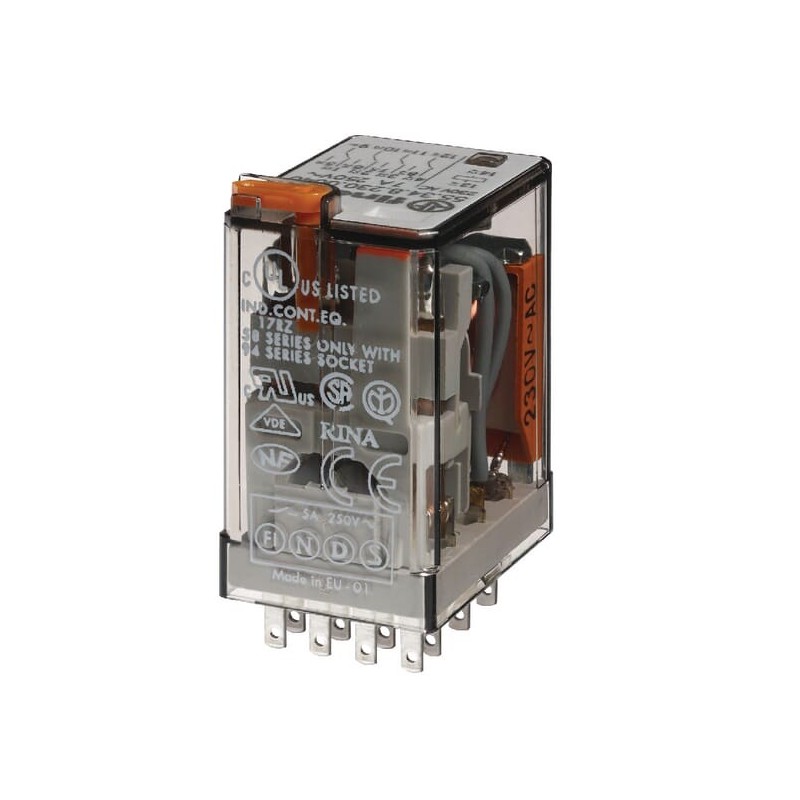

      Relay, 4-pole, 24V DC - 553490240090
      Relay, 4-pole, 24V DC - 553490240090
      Relay, 4-pole, 24V DC - 553490240090
      Relay, 4-pole, 24V DC - 553490240090
      Relay, 4-pole, 24V DC - 553490240090

      Relay, 4-pole, 24V DC - 553490240090

      Review (0)
      zł50.78
      Tax Included
      Return policy:14
      Relay, 4-pole, 24V DC - 553490240090 - Complete with socket: No, Nie; Contact type: Single contact, Pojedynczy.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Relay, 4-pole, 24V DC - 553490240090

      Reference number: 553490240090.

      Product parameters:

      • Complete with socket: No, Nie
      • Contact type: Single contact, Pojedynczy
      • Depth: 27.7, 27,7mm
      • Drive, polarization: Polarized, Spolaryzowany
      • Drive, switching attitude: Mono stable, Monostabilny
      • Height: 37.2, 37,2mm
      • Manufacturer Product ID: 55.34.9.024.0090
      • Material contact body: Silver nickel (AgNi), Stop srebra i niklu (AgNi)
      • Material of contact surface: Silver nickel (AgNi), Stop srebra i niklu (AgNi)
      • Max. starting current: 15, 15A
      • Nominal current: 7, 7A
      • Number of contacts as change-over contact: 4
      • Number of contacts as normally closed contact: 4
      • Number of contacts as normally open contact: 4
      • Operating voltage DC: 19.2-26.4, 19.2-26.4V
      • Rated control supply voltage Us at DC: 24.0-24.0, 24.0-24.0V
      • Relay technology category according to IEC 61810-7: RT I
      • Type of electric connection: Plug-in connection, Złącze wtykowe
      • Voltage type (operating voltage): DC
      • Voltage type for actuating: DC
      • Width: 20.7, 20,7mm
      • With detachable clamps: No, Nie
      • With forced-guided contacts: No, Nie
      • With LED indication: Yes, Tak
      Finder
      553490240090

      Data sheet

      Width
      20,7mm
      20.7
      Height
      37,2mm
      37.2
      Depth
      27,7mm
      27.7
      Type of electric connection
      Plug-in connection
      Złącze wtykowe
      With detachable clamps
      Nie
      No
      Manufacturer Product ID
      55.34.9.024.0090
      Operating voltage DC
      19.2-26.4
      19.2-26.4V
      Number of contacts as normally closed contact
      4
      4
      Number of contacts as normally open contact
      4
      4
      Number of contacts as change-over contact
      4
      4
      With LED indication
      Tak
      Yes
      Material contact
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Material of contact surface
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Type of switch contact
      Pojedynczy
      Single contact
      Max. starting current
      15
      15A
      Complete with socket
      Nie
      No
      Rated control supply voltage Us at DC
      24.0-24.0
      24.0-24.0V
      Voltage type for actuating
      DC
      DC
      Drive, polarization
      Polarized
      Spolaryzowany
      Drive, switching attitude
      Monostabilny
      Mono stable
      With forced-guided contacts
      Nie
      No
      Voltage type (operating voltage)
      DC
      DC
      Nominal current
      7
      7A
      Relay technology category according to IEC 61810-7
      RT I
      RT I
      Contact surface
