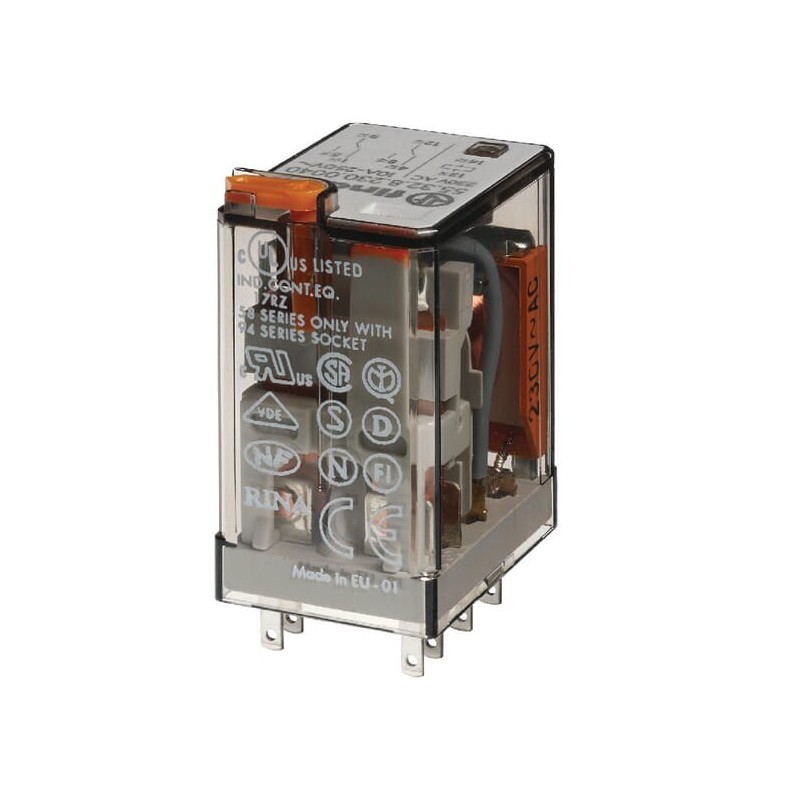

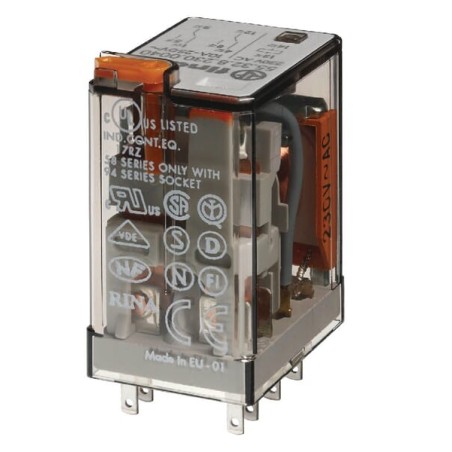

      Relay 2-pole, 12V DC - 553290120040
      Relay 2-pole, 12V DC - 553290120040
      Relay 2-pole, 12V DC - 553290120040
      Relay 2-pole, 12V DC - 553290120040

      Relay 2-pole, 12V DC - 553290120040

      Review (0)
      zł48.29
      Tax Included
      Return policy:14
      Relay 2-pole, 12V DC - 553290120040 - Complete with socket: No, Nie; Contact type: Single contact, Pojedynczy.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Relay 2-pole, 12V DC - 553290120040

      Reference number: 553290120040.

      Product parameters:

      • Complete with socket: No, Nie
      • Contact type: Single contact, Pojedynczy
      • Depth: 27.7
      • Drive, polarization: Polarity free, Niespolaryzowany
      • Drive, switching attitude: Mono stable, Monostabilny
      • Height: 37.2
      • Manufacturer Product ID: 55.32.9.012.0040
      • Material contact body: Silver nickel (AgNi), Stop srebra i niklu (AgNi)
      • Material of contact surface: Silver nickel (AgNi), Stop srebra i niklu (AgNi)
      • Max. starting current: 20, 20A
      • Nominal current: 10, 10A
      • Number of contacts as change-over contact: 2
      • Number of contacts as normally closed contact: 2
      • Number of contacts as normally open contact: 2
      • Operating voltage DC: 9.6-13.2, 9.6-13.2V
      • Rated control supply voltage Us at DC: 12.0-12.0, 12.0-12.0V
      • Relay technology category according to IEC 61810-7: RT I
      • Type of electric connection: Plug-in connection, Złącze wtykowe
      • Voltage type (operating voltage): DC
      • Voltage type for actuating: DC
      • Width: 20.7
      • With detachable clamps: No, Nie
      • With forced-guided contacts: No, Nie
      • With LED indication: No, Nie
      Finder
      553290120040
      46 Items

      Data sheet

      Width
      20.7
      Height
      37.2
      Depth
      27.7
      Type of electric connection
      Plug-in connection
      Złącze wtykowe
      With detachable clamps
      Nie
      No
      Manufacturer Product ID
      55.32.9.012.0040
      Operating voltage DC
      9.6-13.2
      9.6-13.2V
      Number of contacts as normally closed contact
      2
      2
      Number of contacts as normally open contact
      2
      2
      Number of contacts as change-over contact
      2
      2
      With LED indication
      Nie
      No
      Material contact
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Material of contact surface
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Type of switch contact
      Pojedynczy
      Single contact
      Max. starting current
      20
      20A
      Complete with socket
      Nie
      No
      Rated control supply voltage Us at DC
      12.0-12.0
      12.0-12.0V
      Voltage type for actuating
      DC
      DC
      Drive, polarization
      Niespolaryzowany
      Polarity free
      Drive, switching attitude
      Monostabilny
      Mono stable
      With forced-guided contacts
      Nie
      No
      Voltage type (operating voltage)
      DC
      DC
      Nominal current
      10
      10A
      Relay technology category according to IEC 61810-7
      RT I
