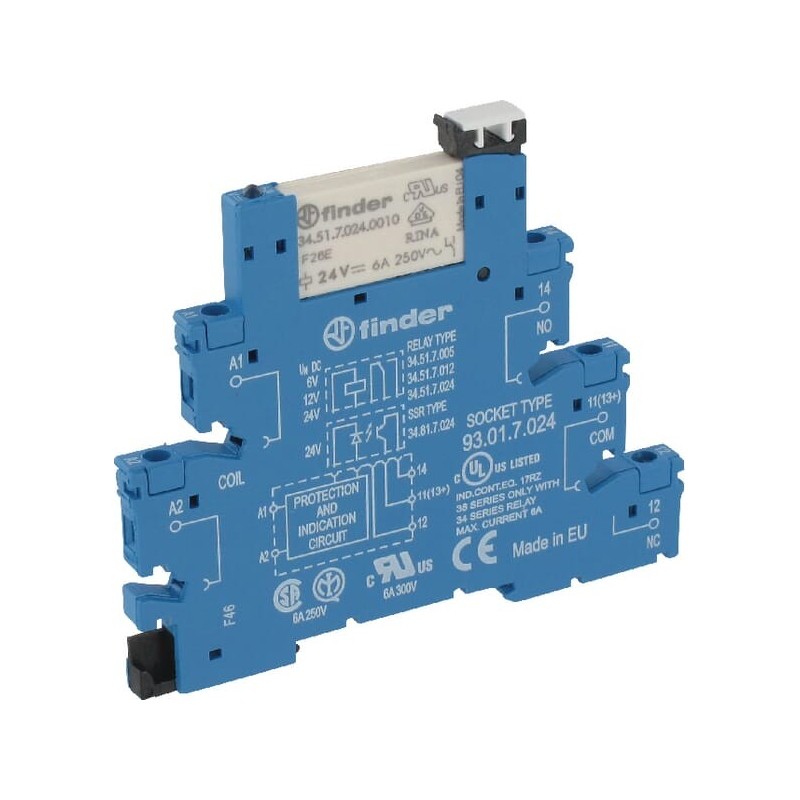

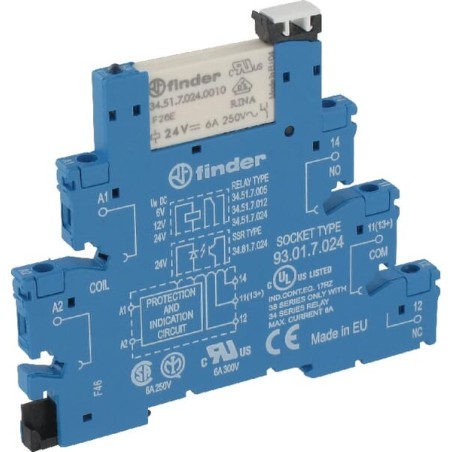

      Interface relay - 380170240050
      Interface relay - 380170240050

      Interface relay - 380170240050

      Review (0)
      zł134.82
      Tax Included
      Return policy:14
      Interface relay - 380170240050 - Complete with socket: Yes; Depth: 88.4.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Interface relay - 380170240050

      Reference number: 380170240050.

      Product parameters:

      • Complete with socket: Yes
      • Depth: 88.4
      • Drive, polarization: Polarized
      • Drive, switching attitude: Mono stable
      • Height: 74.9
      • Insulation class: 20
      • Manufacturer Product ID: 38.01.7.024.0050
      • Material contact body: Silver nickel (AgNi)
      • Max. starting current: 10
      • Nominal current: 16
      • Number of contacts as change-over contact: 2
      • Operating voltage DC: 19.2-28.8
      • Rated control supply voltage Us at DC: 24.0-24.0
      • Type of electric connection: Screw connection
      • Voltage type (operating voltage): DC
      • Voltage type for actuating: DC
      • Width: 14.3
      • With detachable clamps: No
      • With forced-guided contacts: No
      • With LED indication: Yes
      Finder
      380170240050

      Data sheet

      Width
      14.3
      Height
      74.9
      Depth
      88.4
      Insulation class
      20
      Type of electric connection
      Screw connection
      With detachable clamps
      No
      Manufacturer Product ID
      38.01.7.024.0050
      Operating voltage DC
      19.2-28.8
      Number of contacts as normally closed contact
      Number of contacts as normally open contact
      Number of contacts as change-over contact
      2
      With LED indication
      Yes
      Material contact
      Silver nickel (AgNi)
      Max. starting current
      10
      Complete with socket
      Yes
      Rated control supply voltage Us at DC
      24.0-24.0
      Voltage type for actuating
      DC
      Drive, polarization
      Polarized
      Drive, switching attitude
      Mono stable
      With forced-guided contacts
      No
      Voltage type (operating voltage)
      DC
      Nominal current
      16
