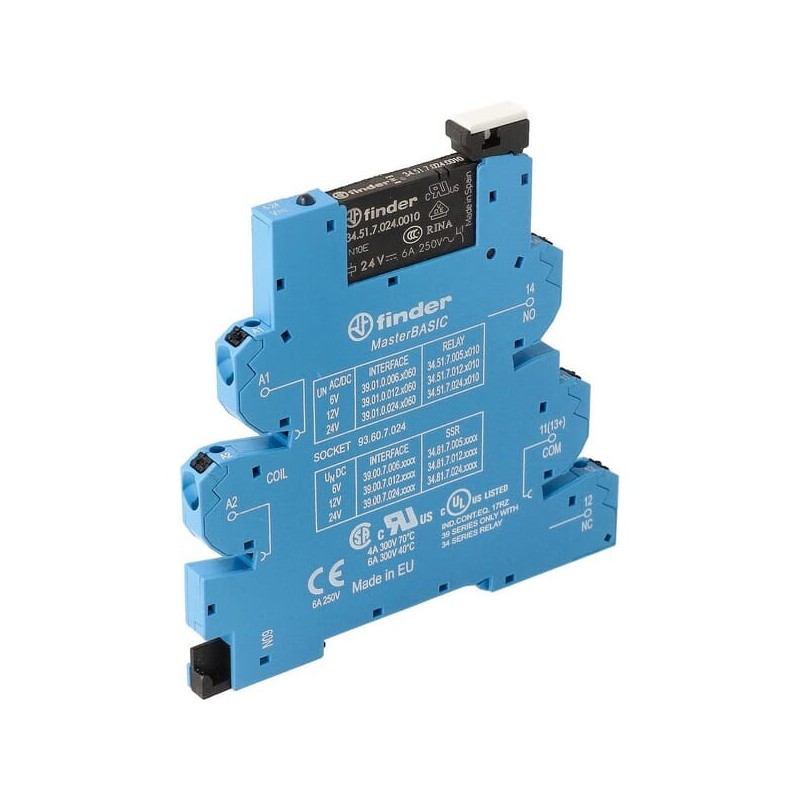

      Relay interface Mod. EMRMasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi - 390100240060
      Relay interface Mod. EMRMasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi - 390100240060
      Relay interface Mod. EMRMasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi - 390100240060
      Relay interface Mod. EMRMasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi - 390100240060
      Relay interface Mod. EMRMasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi - 390100240060

      Relay interface Mod. EMRMasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi - 390100240060

      Review (0)
      zł89.76
      Tax Included
      Return policy:14
      Relay interface Mod. EMRMasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi - 390100240060 - Complete with socket: Yes, Tak; Contact type: Single contact
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Relay interface Mod. EMRMasterBASIC push-in.6,2mm.1CO 6A/24V UC/AgNi - 390100240060

      Reference number: 390100240060.

      Product parameters:

      • Complete with socket: Yes, Tak
      • Contact type: Single contact, Pojedynczy
      • Depth: 87, 87mm
      • Drive, polarization: Polarity free, Niespolaryzowany
      • Drive, switching attitude: Mono stable, Monostabilny
      • Height: 90.7, 90,7mm
      • Insulation class: 20
      • Manufacturer Product ID: 39.01.0.024.0060
      • Material contact body: Silver nickel (AgNi), Stop srebra i niklu (AgNi)
      • Max. starting current: 10, 10A
      • Nominal current: 6, 6A
      • Number of contacts as change-over contact: 1
      • Operating voltage AC 50 Hz: 19.2-26.4, 19.2-26.4V
      • Operating voltage AC 60 Hz: 19.2-26.4, 19.2-26.4V
      • Operating voltage DC: 19.2-26.4, 19.2-26.4V
      • Rated control supply voltage Us at AC 50HZ: 24.0-24.0, 24.0-24.0V
      • Rated control supply voltage Us at AC 60HZ: 24.0-24.0, 24.0-24.0V
      • Rated control supply voltage Us at DC: 24.0-24.0, 24.0-24.0V
      • Type of electric connection: Plug-in connection, Złącze wtykowe
      • Voltage type (operating voltage): AC | DC, AC|DC
      • Voltage type for actuating: AC | DC, AC|DC
      • Width: 6.2, 6,2mm
      • With detachable clamps: No, Nie
      • With forced-guided contacts: No, Nie
      • With LED indication: Yes, Tak
      Finder
      390100240060

      Data sheet

      Width
      6,2mm
      6.2
      Height
      90,7mm
      90.7
      Depth
      87
      87mm
      Insulation class
      20
      20
      Type of electric connection
      Plug-in connection
      Złącze wtykowe
      With detachable clamps
      Nie
      No
      Manufacturer Product ID
      39.01.0.024.0060
      Operating voltage AC 50 Hz
      19.2-26.4
      19.2-26.4V
      Operating voltage AC 60 Hz
      19.2-26.4
      19.2-26.4V
      Operating voltage DC
      19.2-26.4
      19.2-26.4V
      Number of contacts as normally closed contact
      Number of contacts as normally open contact
      Number of contacts as change-over contact
      1
      1
      Rated control supply voltage Us at AC 50HZ
      24.0-24.0
      24.0-24.0V
      Rated control supply voltage Us at AC 60HZ
      24.0-24.0
      24.0-24.0V
      With LED indication
      Tak
      Yes
      Material contact
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Type of switch contact
      Pojedynczy
      Single contact
      Max. starting current
      10
      10A
      Complete with socket
      Tak
      Yes
      Rated control supply voltage Us at DC
      24.0-24.0
      24.0-24.0V
      Voltage type for actuating
      AC | DC
      AC|DC
      Drive, polarization
      Niespolaryzowany
      Polarity free
      Drive, switching attitude
      Monostabilny
      Mono stable
      With forced-guided contacts
      Nie
      No
      Voltage type (operating voltage)
      AC | DC
      AC|DC
      Nominal current
      6
      6A

      Specific References
