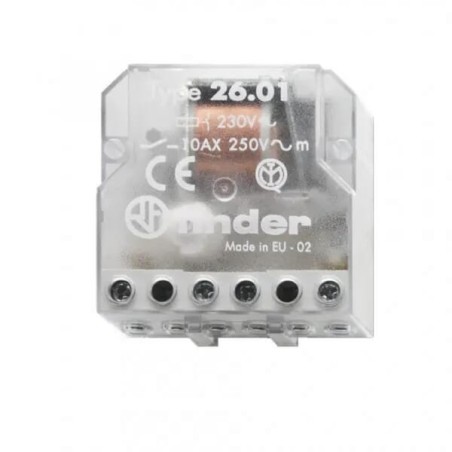

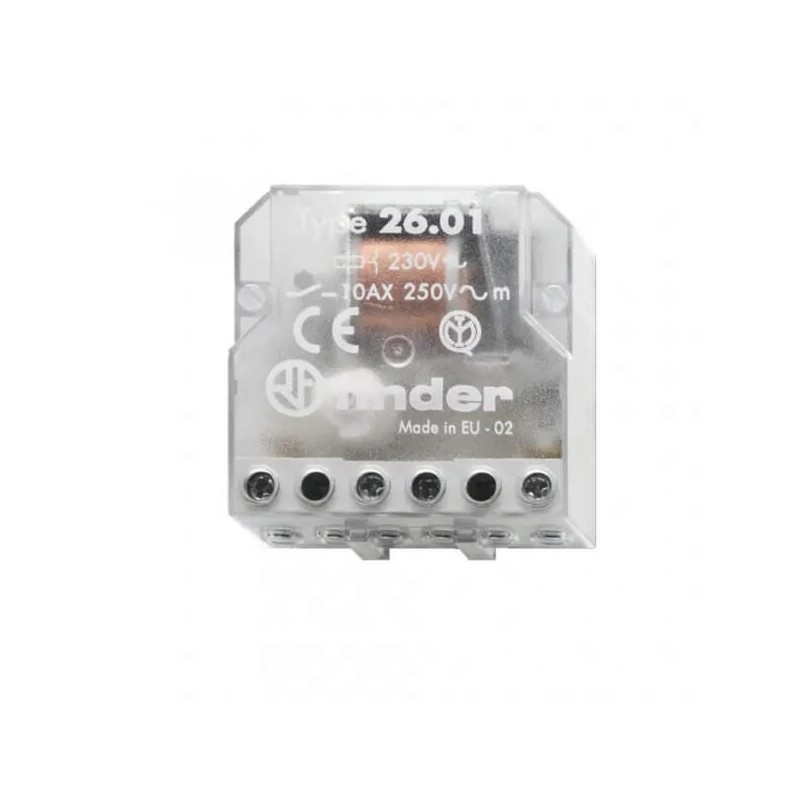

      Impulse relay - 260180240000
      Impulse relay - 260180240000

      Impulse relay - 260180240000

      Review (0)
      zł66.33
      Tax Included
      Return policy:14
      Impulse relay - 260180240000 - Built in depth: 22, 22mm; Frequency control voltage 1: 50.0-60.0, 50.0-60.0Hz.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Impulse relay - 260180240000

      Reference number: 260180240000.

      Product parameters:

      • Built in depth: 22, 22mm
      • Frequency control voltage 1: 50.0-60.0, 50.0-60.0Hz
      • Function: Mechanical switch, Przełącznik mechaniczny
      • Manufacturer Product ID: 26.01.8.024.0000
      • Max. incandescent lamp load: 2000, 2000W
      • Max. load fluorescent lamp: 500, 500VA
      • Max. load fluorescent lamp (Duo circuit): 360, 360VA
      • Max. load fluorescent lamp (parallel compensated): 360, 360VA
      • Max. prąd załączania (cos φ - 0.6): 12A
      • Number of contacts as normally open contact: 1
      • Rated switch current: 10, 10A
      • Suitable for manual operation: Nie
      • Supply voltage: 24.0-24.0, 24.0-24.0V
      • Type of control voltage 1: AC, 19.2-26.4
      • Voltage type of supply voltage: AC
      Finder
      260180240000

      Data sheet

      Function
      Mechanical switch
      Przełącznik mechaniczny
      Manufacturer Product ID
      26.01.8.024.0000
      Number of contacts as normally closed contact
      Number of contacts as normally open contact
      1
      1
      Number of contacts as change-over contact
      Supply voltage
      24-24
      24.0-24.0
      24.0-24.0V
      Voltage type of supply voltage
      AC
      AC
      Suitable for manual operation
      Nie
      Built-in depth
      22
      22mm
      Type of control voltage 1
      19.2-26.4
      AC
      AC
      Frequency control voltage 1
      50-60
      50.0-60.0
      50.0-60.0Hz
      Rated switch current
      10
      10A
      Max. incandescent lamp load
      2000
      2000W
      Max. load fluorescent lamp
      500
      500VA
      Max. load fluorescent lamp (Duo circuit)
      360
      360VA
      Max. load fluorescent lamp (parallel compensated)
      360
      360VA
      Max. switching current (cos φ - 0.6)
      12A
