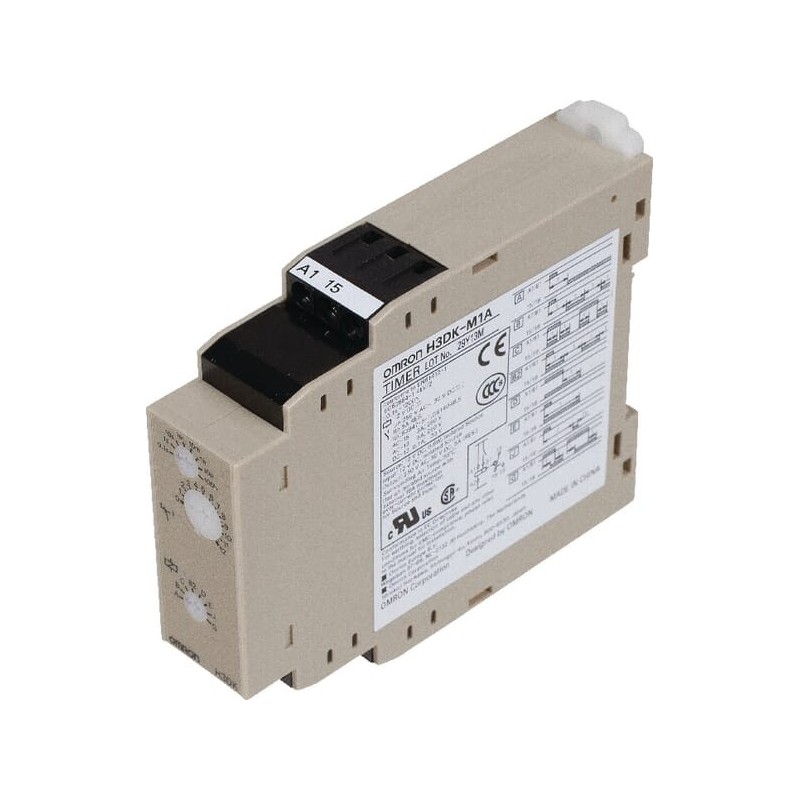

      Multifunc timer, 12 VDC, SPDT - H3DKM1A12VDC
      Multifunc timer, 12 VDC, SPDT - H3DKM1A12VDC

      Multifunc timer, 12 VDC, SPDT - H3DKM1A12VDC

      Review (0)
      zł597.80
      Tax Included
      Return policy:14
      Multifunc timer, 12 VDC, SPDT - H3DKM1A12VDC - Clock function, starting with pause, variable: No, Nie; Clock function, starting with pulse, variable:
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Multifunc timer, 12 VDC, SPDT - H3DKM1A12VDC

      Reference number: H3DKM1A12VDC.

      Product parameters:

      • Clock function, starting with pause, variable: No, Nie
      • Clock function, starting with pulse, variable: Yes, Tak
      • Complete with socket: No, Nie
      • Depth: 100, 100mm
      • Function delay on de-energization: Yes, Tak
      • Function delay-on energization: Yes, Tak
      • Function flashing, starting with pulse, fixed time: Yes, Tak
      • Function floating contact on de-energization: Yes, Tak
      • Function floating contact on energization: Yes, Tak
      • Function pulse shaping: No, Nie
      • Function star-delta: No, Nie
      • Height: 79, 79mm
      • Insulation class: 20
      • Manufacturer Product ID: H3DK6014M
      • Material of contact surface: Gold
      • Nominal current: 5, 5A
      • Number of outputs, delayed, change-over contact: 1
      • Outputs, reversible delayed/undelayed: No, Nie
      • Pluggable on auxiliary contact block: No, Nie
      • Rated control supply voltage Us at DC: 12-12
      • Relay technology category according to IEC 61810-7: RT I
      • Remote operation possible: No, Nie
      • Suitable for DIN rail (top hat rail) mounting: Yes
      • Suitable for front mounting: No
      • Suitable for remote control: No, Nie
      • Time range: 0.1-4320000.0
      • Type of electric connection: Screw connection, Połączenie śrubowe
      • Voltage type (operating voltage): DC
      • Voltage type for actuating: DC
      • Width: 22.5, 22,5mm
      • With semiconductor output: No, Nie
      Omron
      H3DKM1A12VDC

      Data sheet

      Width
      22,5mm
      22.5
      Height
      79
      79mm
      Depth
      100
      100mm
      Insulation class
      20
      20
      Type of electric connection
      Połączenie śrubowe
      Screw connection
      Manufacturer Product ID
      H3DK6014M
      Material of contact surface
      Gold
      Complete with socket
      Nie
      No
      Rated control supply voltage Us at DC
      12-12
      Voltage type for actuating
      DC
      DC
      Voltage type (operating voltage)
      DC
      DC
      Nominal current
      5
      5A
      Relay technology category according to IEC 61810-7
      RT I
      RT I
      Clock function, starting with pause, variable
      Nie
      No
      Clock function, starting with pulse, variable
      Tak
      Yes
      Function delay on de-energization
      Tak
      Yes
      Function delay-on energization
      Tak
      Yes
      Function flashing, starting with pulse, fixed time
      Tak
      Yes
      Function floating contact on de-energization
      Tak
      Yes
      Function floating contact on energization
      Tak
      Yes
      Function pulse shaping
      Nie
      No
      Function star-delta
      Nie
      No
      Number of outputs, delayed, change-over contact
      1
      1
      Outputs, reversible delayed/undelayed
      Nie
      No
      Pluggable on auxiliary contact block
      Nie
      No
      Remote operation possible
      Nie
      No
      Suitable for DIN rail (top hat rail) mounting
      Yes
      Suitable for remote control
      Nie
      No
      Time range
      0.1-4320000.0
      With semiconductor output
      Nie
      No
      Number of outputs, delayed, normally open contact
      Number of outputs, undelayed, change-over contact
      Number of outputs, undelayed, normally open contact
      Suitable for front mounting
      No
