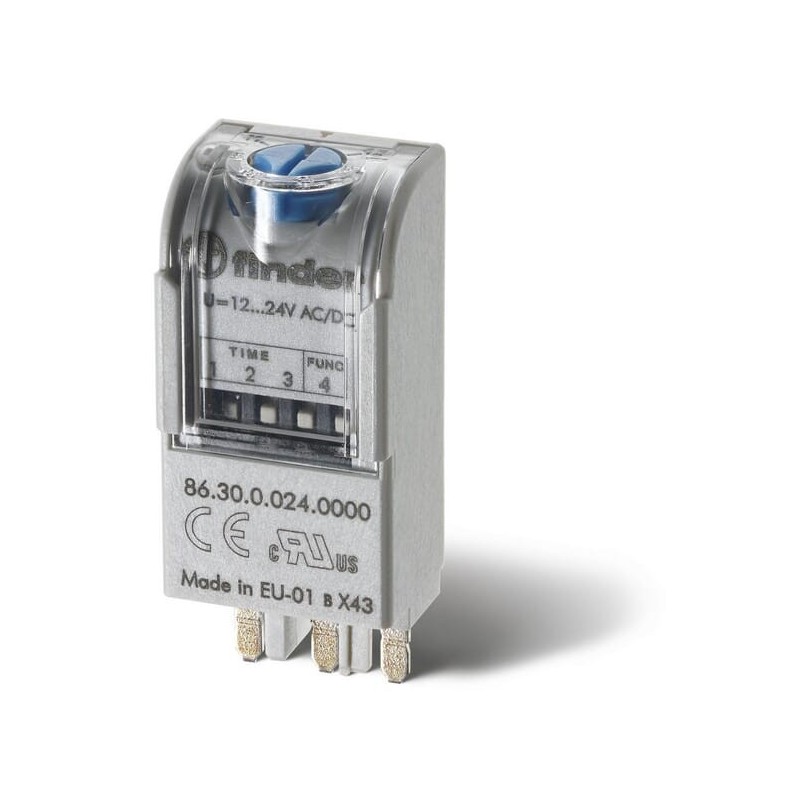

      Timer modul 1224V AC - 863000240000
      Timer modul 1224V AC - 863000240000
      Timer modul 1224V AC - 863000240000

      Timer modul 1224V AC - 863000240000

      Review (0)
      zł190.28
      Tax Included
      Return policy:14
      Last items in stock
      Timer modul 1224V AC - 863000240000 - Clock function, starting with pause, variable: No, Nie; Clock function, starting with pulse, variable: No, Nie.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Timer modul 1224V AC - 863000240000

      Reference number: 863000240000.

      Product parameters:

      • Clock function, starting with pause, variable: No, Nie
      • Clock function, starting with pulse, variable: No, Nie
      • Complete with socket: No, Nie
      • Depth: 10.5
      • Function delay on de-energization: No, Nie
      • Function delay-on energization: Yes, Tak
      • Function flashing, starting with pulse, fixed time: No, Nie
      • Function floating contact on de-energization: No, Nie
      • Function floating contact on energization: Yes, Tak
      • Function pulse shaping: No, Nie
      • Function star-delta: No, Nie
      • Height: 34, 34mm
      • Insulation class: 20
      • Manufacturer Product ID: 86.30.0.024.0000
      • Nominal current: 16, 16A
      • Operating voltage AC 50 Hz: 9.6-33.6
      • Operating voltage AC 60 Hz: 9.6-33.6
      • Operating voltage DC: 9.6-33.6
      • Outputs, reversible delayed/undelayed: No, Nie
      • Pluggable on auxiliary contact block: No, Nie
      • Rated control supply voltage Us at AC 50HZ: 12.0-24.0, 12.0-24.0V
      • Rated control supply voltage Us at AC 60HZ: 12.0-24.0, 12.0-24.0V
      • Rated control supply voltage Us at DC: 12.0-24.0, 12.0-24.0V
      • Remote operation possible: No, Nie
      • Suitable for DIN rail (top hat rail) mounting: No, Nie
      • Suitable for front mounting: No
      • Suitable for remote control: No, Nie
      • Technical information: - Dotyczy podstawy przekaźnika 9002, 9003, 9203 i 9604||- Nie dotyczy przekaźnika typu 62.3x.x.012.x300 lub / x600
      • Time range: 0.050-360000.0, 0.050-360000.0s
      • Type of electric connection: Screw connection, Połączenie śrubowe
      • Voltage type (operating voltage): AC | DC, AC|DC
      • Voltage type for actuating: AC | DC, AC|DC
      • Width: 15.8, 15,8mm
      • With semiconductor output: Yes, Tak
      Finder
      863000240000
      1 Item

      Data sheet

      Width
      15,8mm
      15.8
      Height
      34
      34mm
      Technical information
      - Dotyczy podstawy przekaźnika 9002, 9003, 9203 i 9604||- Nie dotyczy przekaźnika typu 62.3x.x.012.x300 lub / x600
      Depth
      10.5
      Insulation class
      20
      20
      Type of electric connection
      Połączenie śrubowe
      Screw connection
      Manufacturer Product ID
      86.30.0.024.0000
      Operating voltage AC 50 Hz
      9.6-33.6
      Operating voltage AC 60 Hz
      9.6-33.6
      Operating voltage DC
      9.6-33.6
      Rated control supply voltage Us at AC 50HZ
      12.0-24.0
      12.0-24.0V
      Rated control supply voltage Us at AC 60HZ
      12.0-24.0
      12.0-24.0V
      Complete with socket
      Nie
      No
      Rated control supply voltage Us at DC
      12.0-24.0
      12.0-24.0V
      Voltage type for actuating
      AC | DC
      AC|DC
      Voltage type (operating voltage)
      AC | DC
      AC|DC
      Nominal current
      16
      16A
      Clock function, starting with pause, variable
      Nie
      No
      Clock function, starting with pulse, variable
      Nie
      No
      Function delay on de-energization
      Nie
      No
      Function delay-on energization
      Tak
      Yes
      Function flashing, starting with pulse, fixed time
      Nie
      No
      Function floating contact on de-energization
      Nie
      No
      Function floating contact on energization
      Tak
      Yes
      Function pulse shaping
      Nie
      No
      Function star-delta
      Nie
      No
      Number of outputs, delayed, change-over contact
      Outputs, reversible delayed/undelayed
      Nie
      No
      Pluggable on auxiliary contact block
      Nie
      No
      Remote operation possible
      Nie
      No
      Suitable for DIN rail (top hat rail) mounting
      Nie
      No
      Suitable for remote control
      Nie
      No
      Time range
      0.050-360000.0
      0.050-360000.0s
      With semiconductor output
      Tak
      Yes
      Number of outputs, delayed, normally open contact
      Number of outputs, undelayed, change-over contact
      Number of outputs, undelayed, normally open contact
      Suitable for front mounting
      No
