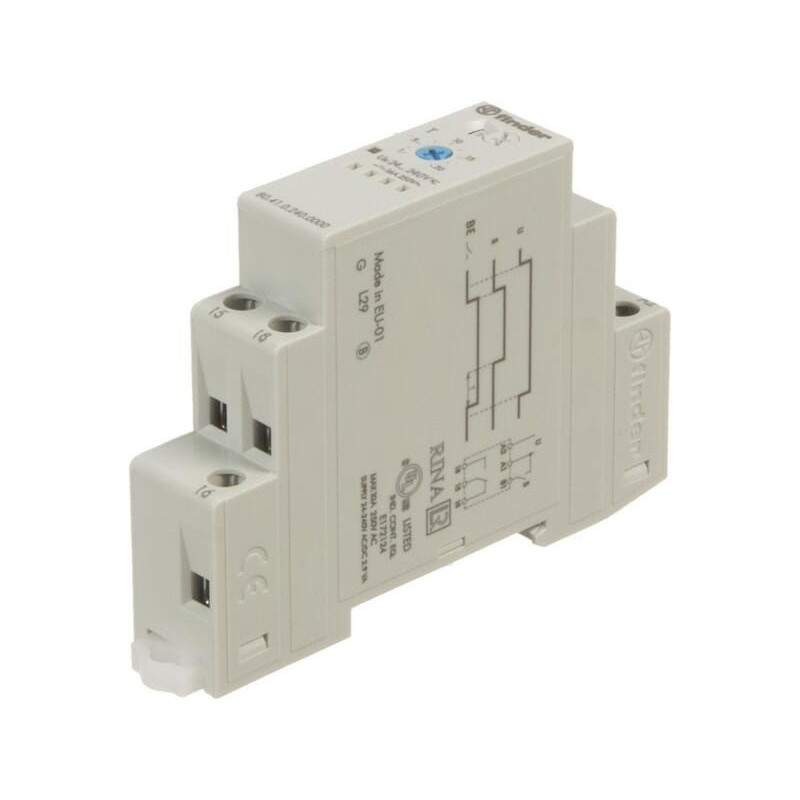

      Timer relay delayed - 804102400000
      Timer relay delayed - 804102400000
      Timer relay delayed - 804102400000

      Timer relay delayed - 804102400000

      Review (0)
      zł303.81
      Tax Included
      Return policy:14
      Timer relay delayed - 804102400000 - Clock function, starting with pause, variable: No, Nie; Clock function, starting with pulse, variable: No, Nie.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Timer relay delayed - 804102400000

      Reference number: 804102400000.

      Product parameters:

      • Clock function, starting with pause, variable: No, Nie
      • Clock function, starting with pulse, variable: No, Nie
      • Complete with socket: No, Nie
      • Depth: 84, 84mm
      • Function delay on de-energization: Yes, Tak
      • Function delay-on energization: No
      • Function flashing, starting with pulse, fixed time: No
      • Function floating contact on de-energization: No, Nie
      • Function floating contact on energization: No
      • Function pulse shaping: No
      • Function star-delta: No, Nie
      • Height: 56.5, 56,5mm
      • Insulation class: 20
      • Korzyści: - Dowolność zastosowania i konfiguracji||- 1 typ do wszystkich napięć aż do 240V DC/AC
      • Manufacturer Product ID: 80.41.0.240.0000
      • Material contact body: Silver nickel (AgNi), Stop srebra i niklu (AgNi)
      • Max. starting current: 30, 30A
      • Nominal current: 16, 16A
      • Number of outputs, delayed, change-over contact: 1
      • Operating voltage AC 50 Hz: 16.8-265.0
      • Operating voltage AC 60 Hz: 16.8-265.0
      • Operating voltage DC: 16.8-265.0
      • Outputs, reversible delayed/undelayed: No, Nie
      • Pluggable on auxiliary contact block: No, Nie
      • Rated control supply voltage Us at AC 50HZ: 24.0-240.0, 24.0-240.0V
      • Rated control supply voltage Us at AC 60HZ: 24.0-240.0, 24.0-240.0V
      • Rated control supply voltage Us at DC: 24.0-240.0, 24.0-240.0V
      • Remote operation possible: No, Nie
      • Specyfikacje: - Przekaźnik czasowy wielo- lub jednofunkcyjny||- Obsługa wielu różnych napięć
      • Suitable for DIN rail (top hat rail) mounting: Yes, Tak
      • Suitable for front mounting: No
      • Suitable for remote control: No, Nie
      • Time range: 0.1-86400.0, 0.1-86400.0s
      • Type of electric connection: Screw connection, Połączenie śrubowe
      • Voltage type (operating voltage): AC | DC, AC|DC
      • Voltage type for actuating: AC | DC, AC|DC
      • Width: 17.5, 17,5mm
      • With semiconductor output: No, Nie
      Finder
      804102400000
      16 Items

      Data sheet

      Width
      17,5mm
      17.5
      Height
      56,5mm
      56.5
      Depth
      84
      84mm
      Specyfikacje
      - Przekaźnik czasowy wielo- lub jednofunkcyjny||- Obsługa wielu różnych napięć
      Benefits
      - Dowolność zastosowania i konfiguracji||- 1 typ do wszystkich napięć aż do 240V DC/AC
      Insulation class
      20
      20
      Type of electric connection
      Połączenie śrubowe
      Screw connection
      Manufacturer Product ID
      80.41.0.240.0000
      Operating voltage AC 50 Hz
      16.8-265.0
      Operating voltage AC 60 Hz
      16.8-265.0
      Operating voltage DC
      16.8-265.0
      Rated control supply voltage Us at AC 50HZ
      24.0-240.0
      24.0-240.0V
      Rated control supply voltage Us at AC 60HZ
      24.0-240.0
      24.0-240.0V
      Material contact
      Silver nickel (AgNi)
      Stop srebra i niklu (AgNi)
      Max. starting current
      30
      30A
      Complete with socket
      Nie
      No
      Rated control supply voltage Us at DC
      24.0-240.0
      24.0-240.0V
      Voltage type for actuating
      AC | DC
      AC|DC
      Voltage type (operating voltage)
      AC | DC
      AC|DC
      Nominal current
      16
      16A
      Clock function, starting with pause, variable
      Nie
      No
      Clock function, starting with pulse, variable
      Nie
      No
      Function delay on de-energization
      Tak
      Yes
      Function delay-on energization
      No
      Function flashing, starting with pulse, fixed time
      No
      Function floating contact on de-energization
      Nie
      No
      Function floating contact on energization
      No
      Function pulse shaping
      No
      Function star-delta
      Nie
      No
      Number of outputs, delayed, change-over contact
      1
      1
      Outputs, reversible delayed/undelayed
      Nie
      No
      Pluggable on auxiliary contact block
      Nie
      No
      Remote operation possible
      Nie
      No
      Suitable for DIN rail (top hat rail) mounting
      Tak
      Yes
      Suitable for remote control
      Nie
      No
      Time range
      0.1-86400.0
      0.1-86400.0s
      With semiconductor output
      Nie
      No
      Number of outputs, delayed, normally open contact
      Number of outputs, undelayed, change-over contact
      Number of outputs, undelayed, normally open contact
      Suitable for front mounting
      No
