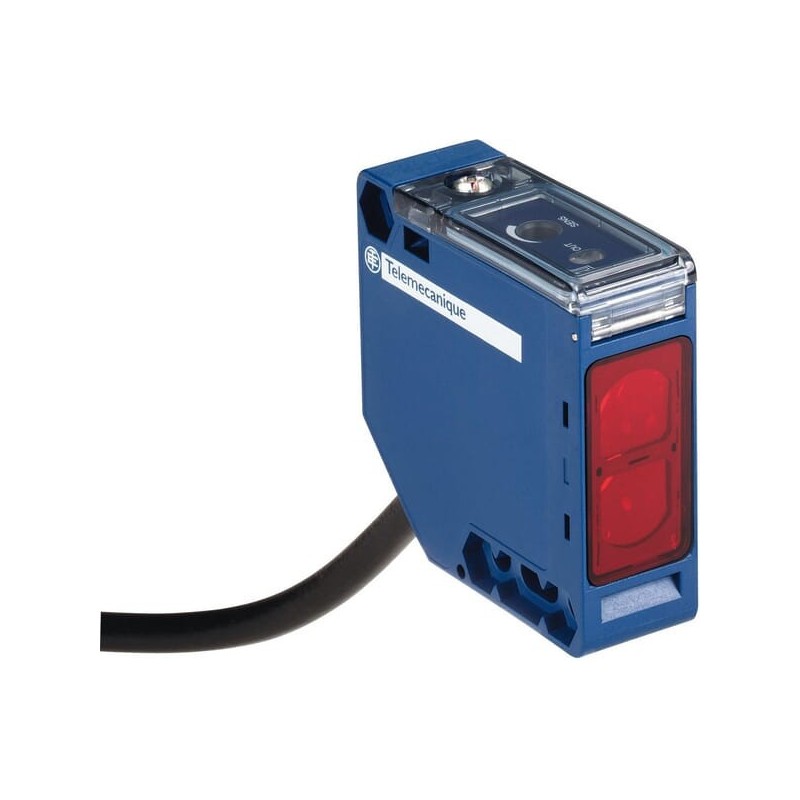

      Light sensor cell, universal - XUK0ARCTL2
      Light sensor cell, universal - XUK0ARCTL2

      Light sensor cell, universal - XUK0ARCTL2

      Review (0)
      zł740.46
      Tax Included
      Return policy:14
      Last items in stock
      Light sensor cell, universal - XUK0ARCTL2 - Height: 50mm; Insulation class: 65.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Light sensor cell, universal - XUK0ARCTL2

      Reference number: XUK0ARCTL2.

      Product parameters:

      • Height: 50mm
      • Insulation class: 65
      • Length of sensor: 50mm
      • Length of the preassembled cable: 2m
      • Max. output current: 3000mA
      • Rated switching distance: 30000mm
      • Rodzaj funkcji przełączania: Programowalny/konfigurowalny
      • Rodzaj konstrukcji obudowy: Sześcienny
      • Supply voltage: 24-240V
      • Switching frequency: 20Hz
      • Type of electric connection: Przewód
      • Voltage type: DC
      • Width sensor: 18mm
      Telemecanique
      XUK0ARCTL2
      3 Items

      Data sheet

      Height
      50
      50mm
      Insulation class
      65
      65
      Housing material
      Plastic
      Type of electric connection
      Cable
      Przewód
      Manufacturer Product ID
      XUK0ARCTL2
      Voltage type
      DC
      DC
      Light type
      Infrared light
      Suitable for safety functions
      No
      Rated control supply voltage Us at AC 50HZ
      24-240
      Rated control supply voltage Us at AC 60HZ
      24-240
      Supply voltage
      24-240
      24-240V
      Rated control supply voltage Us at DC
      24-240
      Length of the preassembled cable
      2
      2m
      Length of sensor
      50
      50mm
      Number of semiconductor outputs with signalling function
      Response time
      25
      Ambient temperature
      -25-55
      Max. output current
      3000
      3000mA
      Rated switching distance
      30000
      30000mm
      Type of switching output
      Relay contact
      Rodzaj funkcji przełączania
      Programowalny/konfigurowalny
      Switching frequency
      20
      20Hz
      Width sensor
      18
      18mm
      Rodzaj konstrukcji obudowy
      Sześcienny
      Operation agent-safety class
      Safety class 0
      Height of sensor
      50
      With communication interface RS-485
      No
      With communication interface RS-232
      No
      Type of safety according to IEC 61496-1
      1
      Protection class IP
      65
      Number of contact energized outputs with signalling function
      1
      With restart blockage
      No
      Material of optical surface
      Plastic
      Analogue output 0 V ... 10 V
      No
      Analogue output 0 mA ... 20 mA
      No
      Analogue output 4 mA ... 20 mA
      No
      Analogue output -10 V ... +10 V
      No
      Max. switching distance
      35000
      Number of protected contact energized outputs
      Number of protected semiconductor outputs
      Pre failure notice
      No
      Scope of delivery of the one-way system
      Receiver
      Sensing mode
      Dark switching
      With communication interface RS-422
      No
      With communication interface analogue
      No
      With communication interface AS-Interface
      No
      With communication interface CANOpen
      No
      With communication interface DeviceNet
      No
      With communication interface Ethernet
      No
      With communication interface INTERBUS
      No
      With communication interface PROFIBUS
      No
      With communication interface SSD
      No
      With communication interface SSI
      No
      With monitoring function downstream switching devices
      No
      With other analogue output
      No
      With time function
      No
