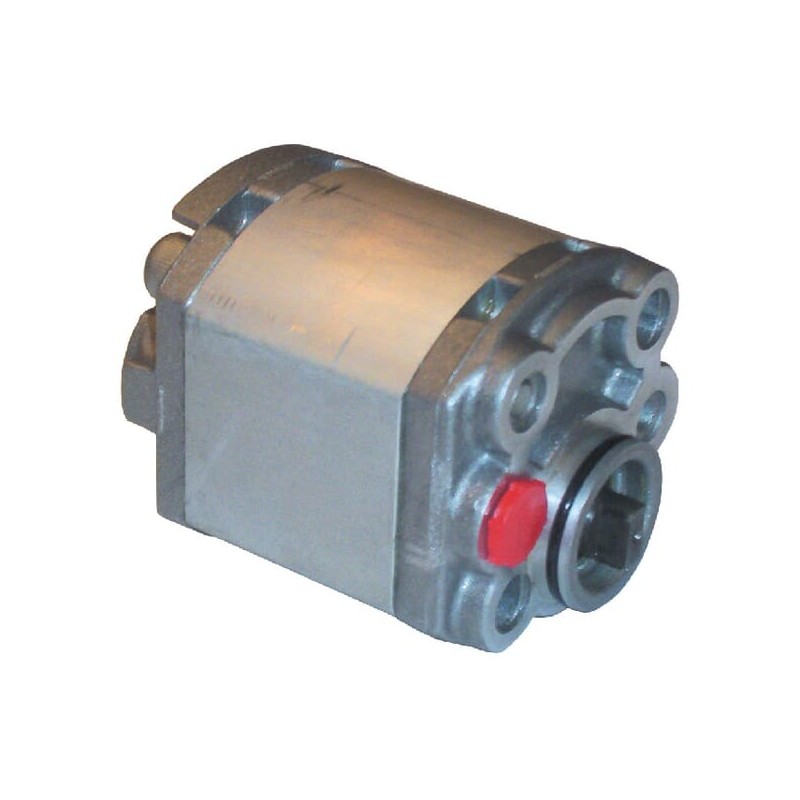

MPP Pump 3,7cc - MPP37D

Reference number: MPP37D.

Product parameters:

• Direction of rotation: Clockwise (CW)
• Displacement: 3.8
• Flange and back cover material: Aluminium
• Flange code: -, n/a
• Flange type norm: n/a, nie dotyczy
• Housing length: 72
• Housing length without front and back covers: 44
• Housing material: Aluminium
• Housing total length: 78
• Long description: Pompy zębate prawo obrotowe dla jednostek MPP.
• Main port thread diameter: 1/4, 1/4cal
• Main port thread type: BSP
• Max continous working pressure: 250, 250BAR
• Max intermittend working pressure: 280, 280BAR
• Max rotation speed: 2800, 2800obr/min
• Max working pressure: 250, 250BAR
• Min rotation speed: 1500, 1500obr/min
• Mounting diameter: 32, 32mm
• Noise level: 62dB, 62
• Port position: Rear | Front, Tylne|Przód
• Preferowany kierunek obrotów: W kierunku zgodnym z ruchem wskazówek zegara
• Pressure port thread diameter: M5.8
• Pressure port thread type: Metric, Metryczny
• Pump group code: 1
• Sealing type: Standard, Standardowe
• Shaft cone size code: n/a
• Shaft type: Deutz pin, Sworzeń Deutz
• Szczegóły produktu: - Pompy zębate prawo obrotowe||- Dla agregatów hydraulicznych Mini Power Pack
