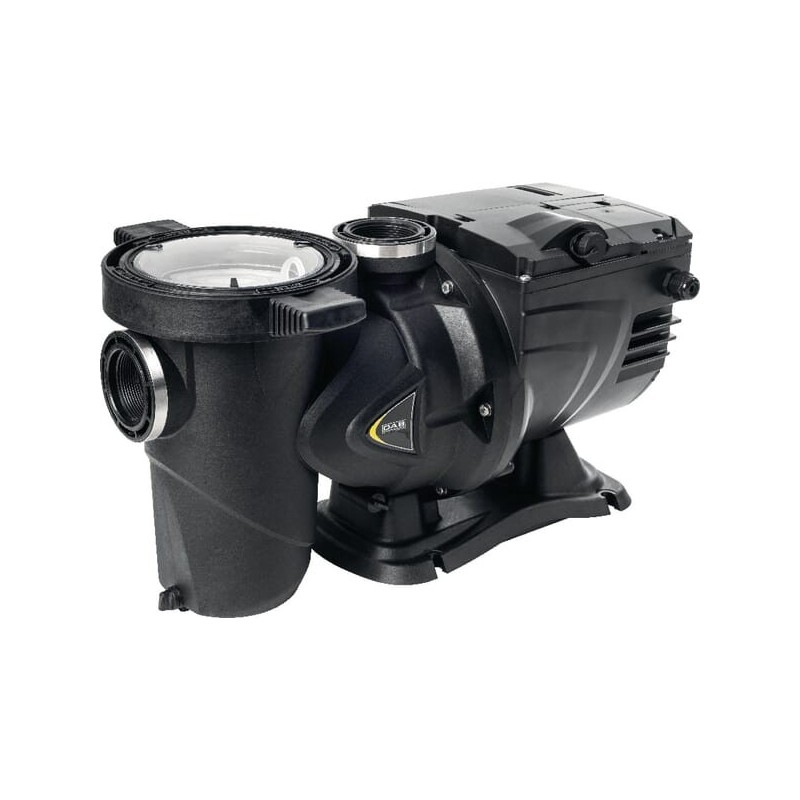

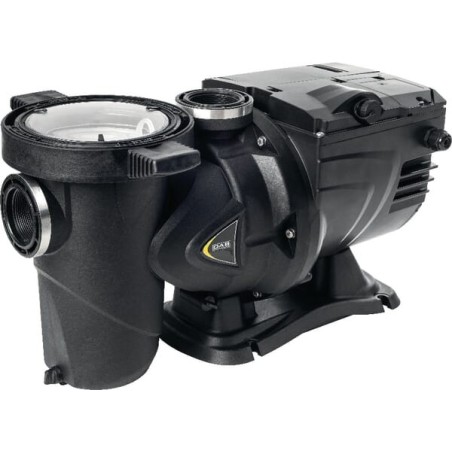

      Pompa E.SWIM 150 - DAB60172658
      Pompa E.SWIM 150 - DAB60172658
      Pompa E.SWIM 150 - DAB60172658
      Pompa E.SWIM 150 - DAB60172658
      Pompa E.SWIM 150 - DAB60172658

      Pompa E.SWIM 150 - DAB60172658

      Review (0)
      zł9,367.45
      Tax Included
      Return policy:14
      Pompa E.SWIM 150 - DAB60172658 - Ambient temperature: 50-50°C; Discharge head at nom. flow rate: 125kPa.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Pompa E.SWIM 150 - DAB60172658

      Reference number: DAB60172658.

      Product parameters:

      • Ambient temperature: 50-50°C
      • Discharge head at nom. flow rate: 125kPa
      • Drive type: Elektryczny
      • Electrical connection: Zaciski
      • Frequency: 50Hz
      • Height: 316mm
      • Height of pressure end: 316mm
      • Height of suction end: 217mm
      • Insulation class: 55
      • Insulation class according to IEC: F dimensions
      • Length of centre pressure/suction connection: 259mm
      • Manufacturer Product ID: 60194426
      • Material pump casing: Tworzywo sztuczne wzmocnione włóknem
      • Max continous working pressure: 2,5BAR
      • Max delivery height: 15,4m
      • Max. medium temperature (continuous): 60°C
      • Max. suction height: 8m
      • Max. volume flow rate: 30m³/h
      • Medium temperature (continuous): 0-50°C
      • Motor power input (P1) per motor: 1,3kW
      • Motor power output (P2): 11,25kW
      • Motor speed control: Wbudowany
      • Noise level: 45dB
      • Nominal current: 5,6A
      • Nominal diameter connection inlet side: DN 50
      • Nominal diameter connection outlet side: DN 50
      • Nominal volume flow rate: 24m³/h
      • Number of phases: 1
      • Original number equivalent: 60194426
      • Rated voltage: 220-240V
      • Rotational speed: 4500obr/min
      • Thread diameter of suction side connection: 2cal
      • Thread type of suction side connection: BSP
      • Total length: 550mm
      • Typ kontroli prędkości silnika: Bezstopniowo
      • Weight: 19kg
      • With automatic start/stop: Nie
      • With pressure tank: Nie
      DAB
      DAB60172658

      Data sheet

      Height
      316
      316mm
      Weight
      19
      19kg
      Original number equivalent
      60194426
      Total length
      550
      550mm
      Thread diameter of suction side connection
      2
      2cal
      Max continous working pressure
      2,5BAR
      2.5
      Nominal volume flow rate
      24l/min
      24m³/h
      Ref rotation speed
      4500
      4500obr/min
      Rated voltage
      220-240
      220-240V
      Max delivery height
      15,4m
      15,4m
      Insulation class
      55
      55
      Max flow rate
      30
      30m³/h
      Manufacturer Product ID
      60194426
      Frequency
      50
      50Hz
      Max. medium temperature (continuous)
      60°C
      Thread type of suction side connection
      BSP
      BSP
      Number of phases
      1
      1
      Noise level
      45dB
      Insulation class according to IEC
      F
      F dimensions
      Electrical connection
      Terminals
      Zaciski
      Motor power output (P2)
      11,25kW
      Drive type
      Electrical
      Elektryczny
      Nominal current
      5,6A
      5,6A
      Max. suction height
      8
      8m
      Nominal diameter connection inlet side
      DN 50
      Nominal diameter connection outlet side
      DN 50
      Ambient temperature
      50-50°C
      Medium temperature (continuous)
      0-50°C
      Discharge head at nom. flow rate
      125kPa
      Motor power input (P1) per motor
      1,3kW
      Material pump casing
      Tworzywo sztuczne wzmocnione włóknem
      Tworzywo sztuczne wzmocnione włóknem
      Motor speed control
      Built-in (integrated)
      Wbudowany
      Type of speed control
      Bezstopniowo
      Continuously variable
      With pressure tank
      Nie
      No
      Height of pressure end
      316mm
      Height of suction end
      217mm
      Length of centre pressure/suction connection
      259mm
      With automatic start/stop
      Nie
      No
