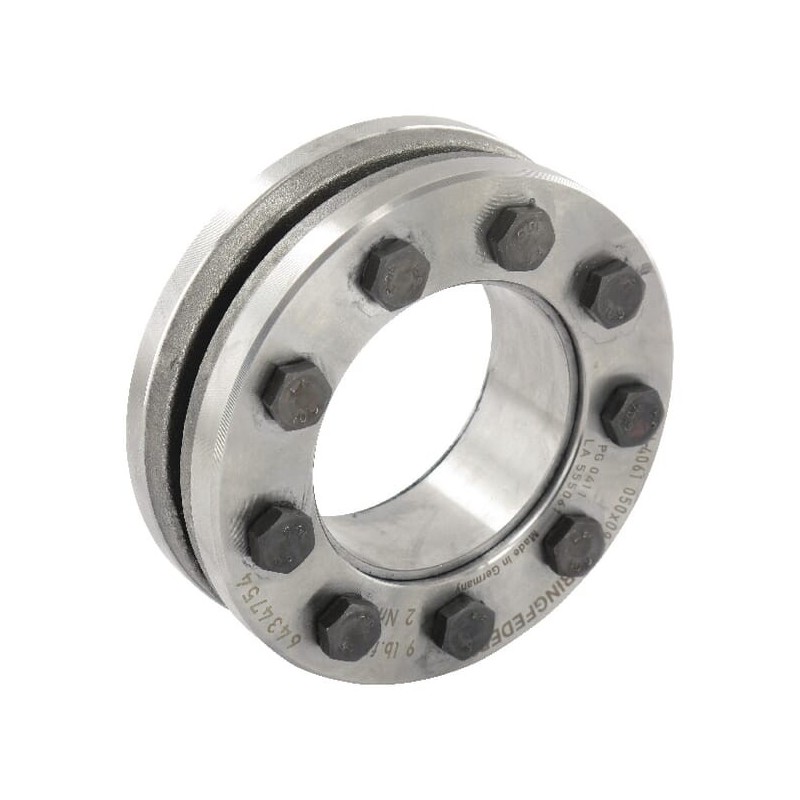

      Shrink disk - RFN406136
      Shrink disk - RFN406136
      Shrink disk - RFN406136
      Shrink disk - RFN406136
      Shrink disk - RFN406136

      Shrink disk - RFN406136

      Review (0)
      zł306.78
      Tax Included
      Return policy:14
      Shrink disk - RFN406136 - D1 dimensions: 36, 36mm; Dg (Clamping thread): M6.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Shrink disk - RFN406136

      Reference number: RFN406136.

      Product parameters:

      • D1 dimensions: 36, 36mm
      • Dg (Clamping thread): M6
      • dw solid shaft diameter: 28
      • F ax (Transmissible axial force): 53
      • Inside diameter: 52, 52mm
      • L4: -mm
      • Length: 27.5, 27.5mm
      • Length L1: 23.5
      • Length L2: 10, 10mm
      • Length L3: 18, 18mm
      • Minimum required outer hub diameter at Rp0,2-200 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-300 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-400 N/mm²: -mm
      • Number of bolts: 5
      • Outside diameter: 72, 72mm
      • pN (Hub pressure at given TA): -N/mm²
      • pW (Shaft pressure at given TA): 303
      • T (Transmissible tork at given TA): 590
      • TA (Locking torque): 12, 12N·m
      • Tmax (Maximum transmissible torque: 730
      • Wrench size X: -mm
      Ringfeder
      RFN406136

      Data sheet

      Length
      27.5
      27.5mm
      Inside diameter
      52
      52mm
      Consists of
      Outside diameter
      72
      72mm
      Outside diameter axial bearing
      36
      36mm
      Length L1
      23.5
      Length L2
      10
      10mm
      Length L3
      18
      18mm
      T
      590
      Number_of_bolts
      5
      5
      Distance underside to center 2nd shaft
      -mm
      PN (bar)
      -N/mm²
      l4
      -mm
      Dg (Clamping thread)
      M6
      M6
      F ax (Transmissible axial force)
      53
      Minimum required outer hub diameter at Rp0,2-200 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-400 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-300 N/mm²
      -mm
      TA (Locking torque)
      12
      12N·m
      Tmax (Maximum transmissible torque
      730
      dw solid shaft diameter
      28
      pW (Shaft pressure at given TA)
      303

      Specific References
