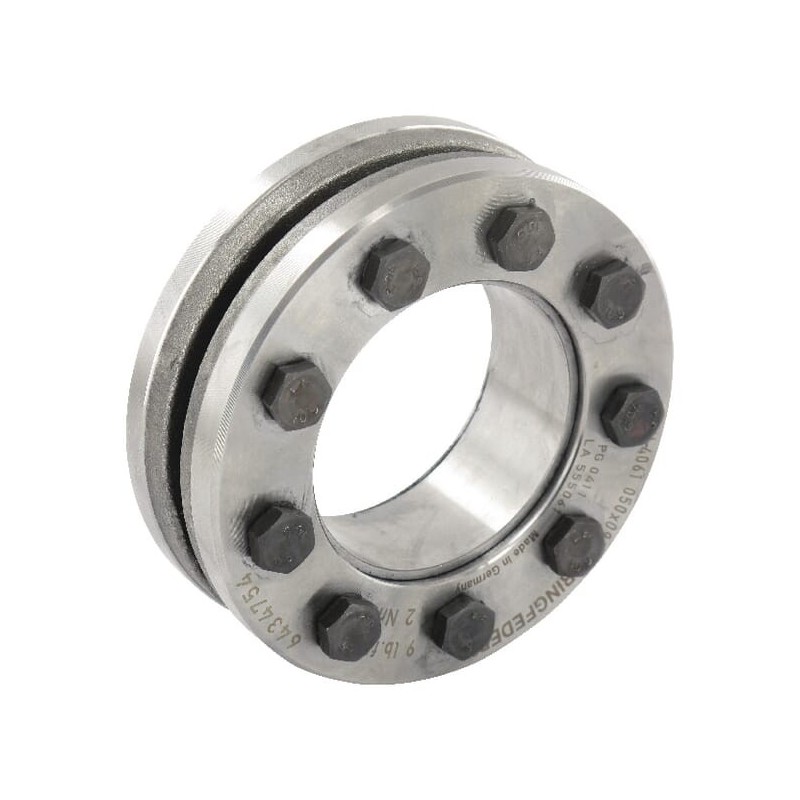

      Shrink disk - RFN406124
      Shrink disk - RFN406124
      Shrink disk - RFN406124
      Shrink disk - RFN406124
      Shrink disk - RFN406124

      Shrink disk - RFN406124

      Review (0)
      zł240.03
      Tax Included
      Return policy:14
      Shrink disk - RFN406124 - D1 dimensions: 24, 24mm; Dg (Clamping thread): M5.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Shrink disk - RFN406124

      Reference number: RFN406124.

      Product parameters:

      • D1 dimensions: 24, 24mm
      • Dg (Clamping thread): M5
      • dw solid shaft diameter: 19
      • F ax (Transmissible axial force): 32, 32kN
      • Inside diameter: 36, 36mm
      • L4: -mm
      • Length: 22.5, 22.5mm
      • Length L1: 19
      • Length L2: 8
      • Length L3: 15
      • Minimum required outer hub diameter at Rp0,2-200 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-300 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-400 N/mm²: -mm
      • Number of bolts: 6
      • Outside diameter: 50, 50mm
      • pN (Hub pressure at given TA): -N/mm²
      • pW (Shaft pressure at given TA): 336
      • T (Transmissible tork at given TA): 240
      • TA (Locking torque): 5, 5N·m
      • Tmax (Maximum transmissible torque: 300
      • Wrench size X: -mm
      Ringfeder
      RFN406124

      Data sheet

      Length
      22.5
      22.5mm
      Inside diameter
      36
      36mm
      Consists of
      Outside diameter
      50
      50mm
      Outside diameter axial bearing
      24
      24mm
      Length L1
      19
      Length L2
      8
      Length L3
      15
      T
      240
      Number_of_bolts
      6
      6
      Distance underside to center 2nd shaft
      -mm
      PN (bar)
      -N/mm²
      l4
      -mm
      Dg (Clamping thread)
      M5
      M5
      F ax (Transmissible axial force)
      32
      32kN
      Minimum required outer hub diameter at Rp0,2-200 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-400 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-300 N/mm²
      -mm
      TA (Locking torque)
      5
      5N·m
      Tmax (Maximum transmissible torque
      300
      dw solid shaft diameter
      19
      pW (Shaft pressure at given TA)
      336
