      Shrink disk - RFN406162 - D1 dimensions: 62; Dg (Clamping thread): M6.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

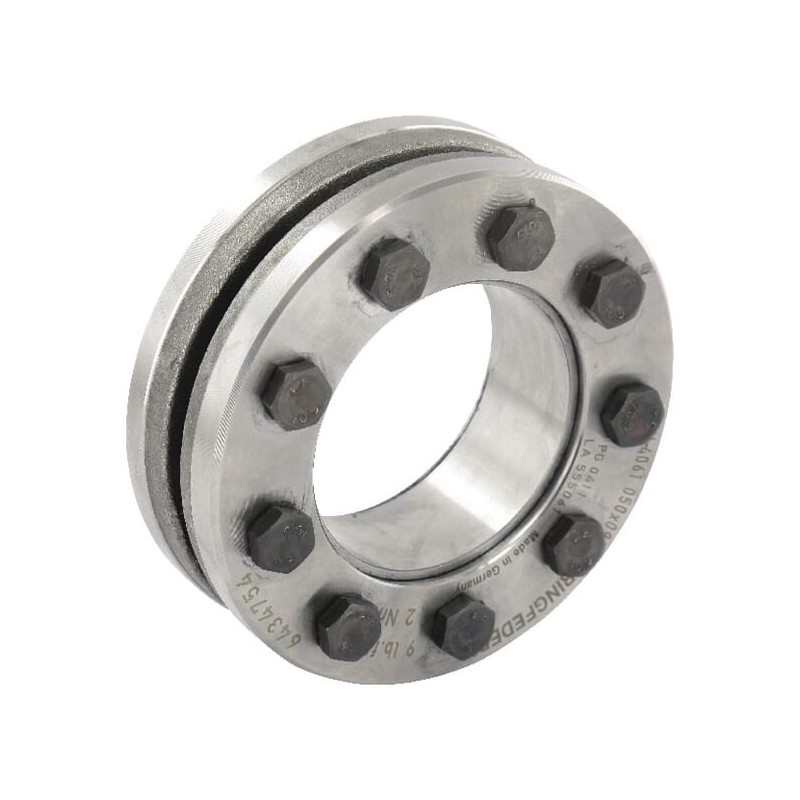

      Shrink disk - RFN406162

      Reference number: RFN406162.

      Product parameters:

      • D1 dimensions: 62
      • Dg (Clamping thread): M6
      • dw solid shaft diameter: 48
      • F ax (Transmissible axial force): 126
      • Inside diameter: 86, 86mm
      • L4: -mm
      • Length: 34.5, 34.5mm
      • Length L1: 30.5
      • Length L2: 13
      • Length L3: 23
      • Minimum required outer hub diameter at Rp0,2-200 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-300 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-400 N/mm²: -mm
      • Number of bolts: 12
      • Outside diameter: 110, 110mm
      • pN (Hub pressure at given TA): -N/mm²
      • pW (Shaft pressure at given TA): 330
      • T (Transmissible tork at given TA): 2400
      • TA (Locking torque): 12, 12N·m
      • Tmax (Maximum transmissible torque: 3000
      • Wrench size X: -mm
      Ringfeder
      RFN406162

      Data sheet

      Length
      34.5
      34.5mm
      Inside diameter
      86
      86mm
      Consists of
      Outside diameter
      110
      110mm
      Outside diameter axial bearing
      62
      Length L1
      30.5
      Length L2
      13
      Length L3
      23
      Height mountingplate
      2400
      Number_of_bolts
      12
      12
      Distance underside to center 2nd shaft
      -mm
      PN (bar)
      -N/mm²
      l4
      -mm
      Dg (Clamping thread)
      M6
      M6
      F ax (Transmissible axial force)
      126
      Minimum required outer hub diameter at Rp0,2-200 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-400 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-300 N/mm²
      -mm
      TA (Locking torque)
      12
      12N·m
      Tmax (Maximum transmissible torque
      3000
      dw solid shaft diameter
      48
      pW (Shaft pressure at given TA)
      330
