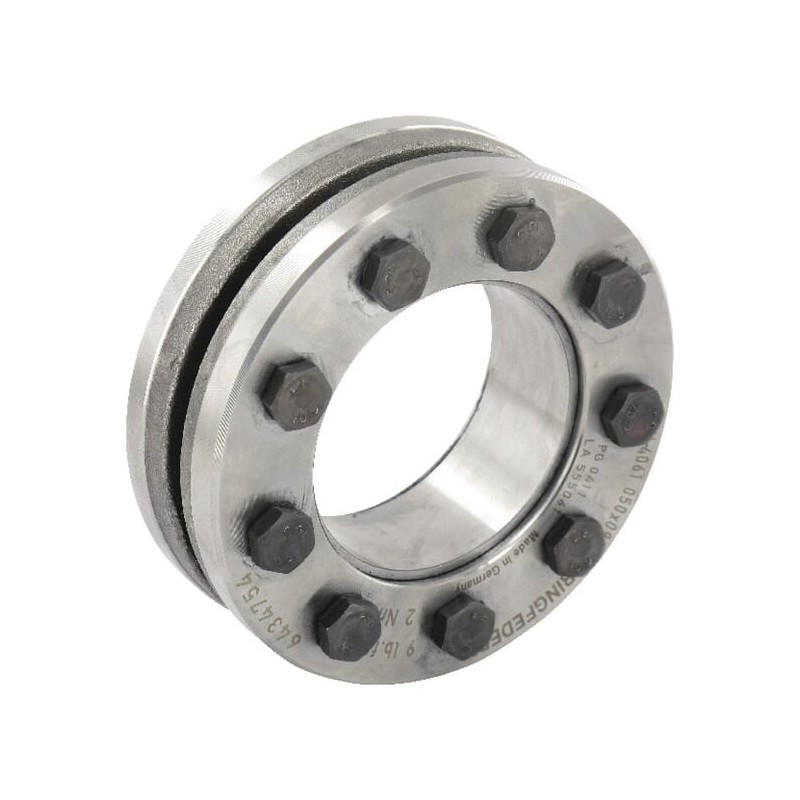

      Shrink disk - RFN406150
      Shrink disk - RFN406150
      Shrink disk - RFN406150
      Shrink disk - RFN406150
      Shrink disk - RFN406150

      Shrink disk - RFN406150

      Review (0)
      zł443.45
      Tax Included
      Return policy:14
      Shrink disk - RFN406150 - D1 dimensions: 50, 50mm; Dg (Clamping thread): M6.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Shrink disk - RFN406150

      Reference number: RFN406150.

      Product parameters:

      • D1 dimensions: 50, 50mm
      • Dg (Clamping thread): M6
      • dw solid shaft diameter: 38
      • F ax (Transmissible axial force): 89
      • Inside diameter: 70, 70mm
      • L4: -mm
      • Length: 31.5, 31.5mm
      • Length L1: 27.5
      • Length L2: 12
      • Length L3: 22.5
      • Minimum required outer hub diameter at Rp0,2-200 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-300 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-400 N/mm²: -mm
      • Number of bolts: 9
      • Outside diameter: 90, 90mm
      • pN (Hub pressure at given TA): -N/mm²
      • pW (Shaft pressure at given TA): 314
      • T (Transmissible tork at given TA): 1350
      • TA (Locking torque): 12, 12N·m
      • Tmax (Maximum transmissible torque: 1650
      • Wrench size X: -mm
      Ringfeder
      RFN406150

      Data sheet

      Length
      31.5
      31.5mm
      Inside diameter
      70
      70mm
      Consists of
      Outside diameter
      90
      90mm
      Outside diameter axial bearing
      50
      50mm
      Length L1
      27.5
      Length L2
      12
      Length L3
      22.5
      T
      1350
      Number_of_bolts
      9
      9
      Distance underside to center 2nd shaft
      -mm
      PN (bar)
      -N/mm²
      l4
      -mm
      Dg (Clamping thread)
      M6
      M6
      F ax (Transmissible axial force)
      89
      Minimum required outer hub diameter at Rp0,2-200 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-400 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-300 N/mm²
      -mm
      TA (Locking torque)
      12
      12N·m
      Tmax (Maximum transmissible torque
      1650
      dw solid shaft diameter
      38
      pW (Shaft pressure at given TA)
      314
