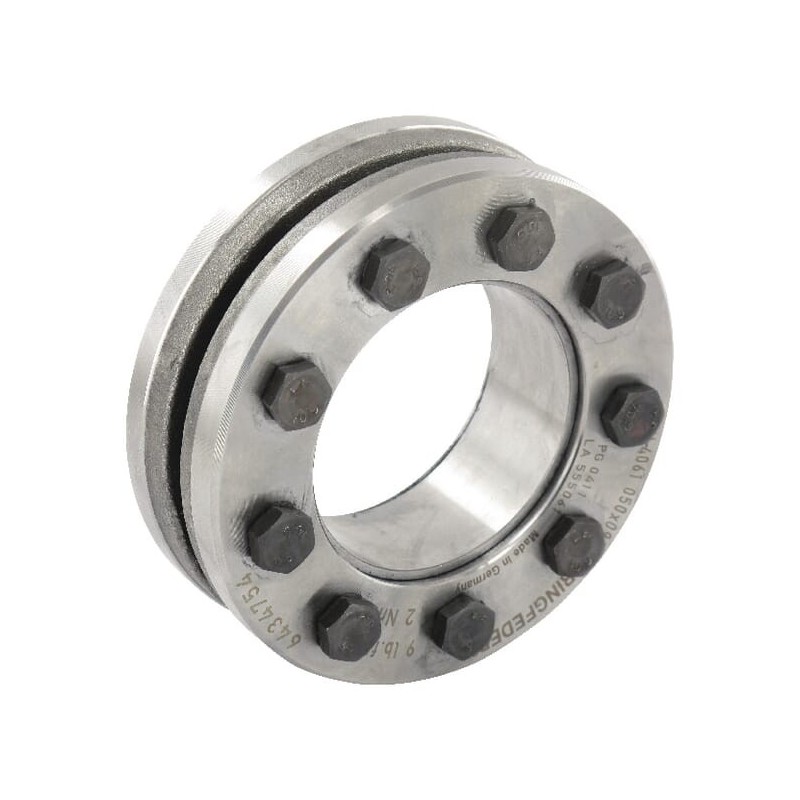

      Shrink disk - RFN406130
      Shrink disk - RFN406130
      Shrink disk - RFN406130
      Shrink disk - RFN406130
      Shrink disk - RFN406130

      Shrink disk - RFN406130

      Review (0)
      zł274.37
      Tax Included
      Return policy:14
      Shrink disk - RFN406130 - D1 dimensions: 30; Dg (Clamping thread): M5.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Shrink disk - RFN406130

      Reference number: RFN406130.

      Product parameters:

      • D1 dimensions: 30
      • Dg (Clamping thread): M5
      • dw solid shaft diameter: 24
      • F ax (Transmissible axial force): 38
      • Inside diameter: 41.5
      • L4: -mm
      • Length: 26, 26mm
      • Length L1: 22.5
      • Length L2: 9.5
      • Length L3: 18
      • Minimum required outer hub diameter at Rp0,2-200 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-300 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-400 N/mm²: -mm
      • Number of bolts: 7
      • Outside diameter: 52, 52mm
      • pN (Hub pressure at given TA): -N/mm²
      • pW (Shaft pressure at given TA): 261
      • T (Transmissible tork at given TA): 350
      • TA (Locking torque): 5
      • Tmax (Maximum transmissible torque: 450
      • Wrench size X: -mm
      Ringfeder
      RFN406130

      Data sheet

      Length
      26
      26mm
      Inside diameter
      41.5
      Consists of
      Outside diameter
      52
      52mm
      Outside diameter axial bearing
      30
      Length L1
      22.5
      Length L2
      9.5
      Length L3
      18
      Height mountingplate
      350
      Number_of_bolts
      7
      7
      Distance underside to center 2nd shaft
      -mm
      PN (bar)
      -N/mm²
      l4
      -mm
      Dg (Clamping thread)
      M5
      F ax (Transmissible axial force)
      38
      Minimum required outer hub diameter at Rp0,2-200 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-400 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-300 N/mm²
      -mm
      TA (Locking torque)
      5
      Tmax (Maximum transmissible torque
      450
      dw solid shaft diameter
      24
      pW (Shaft pressure at given TA)
      261
