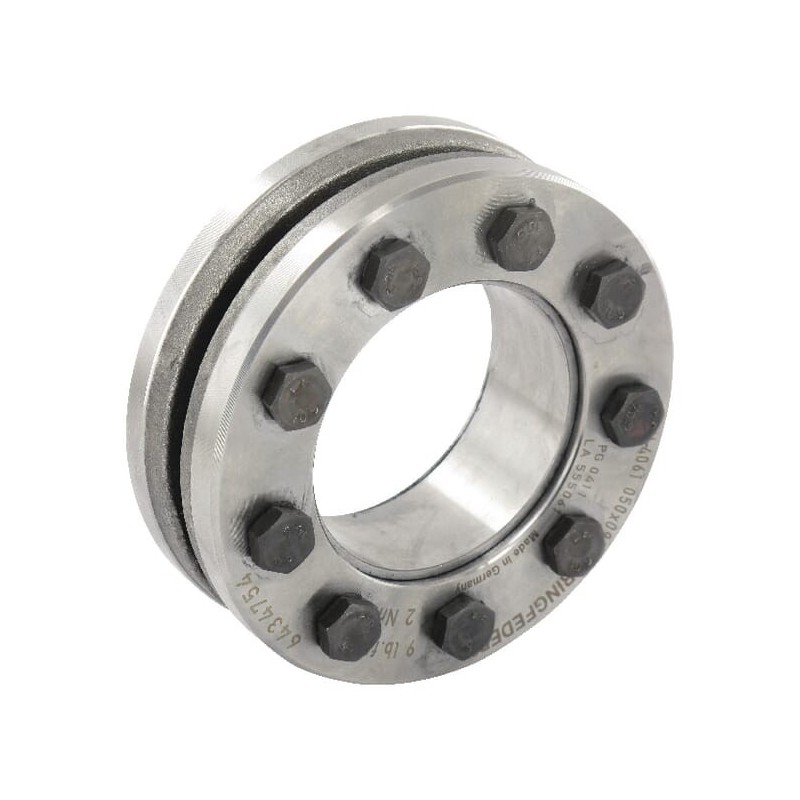

      Shrink disk - RFN406144
      Shrink disk - RFN406144
      Shrink disk - RFN406144
      Shrink disk - RFN406144
      Shrink disk - RFN406144

      Shrink disk - RFN406144

      Review (0)
      zł387.45
      Tax Included
      Return policy:14
      Shrink disk - RFN406144 - D1 dimensions: 44; Dg (Clamping thread): M6.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Shrink disk - RFN406144

      Reference number: RFN406144.

      Product parameters:

      • D1 dimensions: 44
      • Dg (Clamping thread): M6
      • dw solid shaft diameter: 32
      • F ax (Transmissible axial force): 63
      • Inside diameter: 63mm, 63
      • L4: -mm
      • Length: 30, 30mm
      • Length L1: 26
      • Length L2: 11
      • Length L3: 20
      • Minimum required outer hub diameter at Rp0,2-200 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-300 N/mm²: -mm
      • Minimum required outer hub diameter at Rp0,2-400 N/mm²: -mm
      • Number of bolts: 7
      • Outside diameter: 80, 80mm
      • pN (Hub pressure at given TA): -N/mm²
      • pW (Shaft pressure at given TA): 312
      • T (Transmissible tork at given TA): 800
      • TA (Locking torque): 12
      • Tmax (Maximum transmissible torque: 1000
      • Wrench size X: -mm
      Ringfeder
      RFN406144

      Data sheet

      Length
      30
      30mm
      Inside diameter
      63
      63mm
      Consists of
      Outside diameter
      80
      80mm
      Outside diameter axial bearing
      44
      Length L1
      26
      Length L2
      11
      Length L3
      20
      T
      800
      Number_of_bolts
      7
      Distance underside to center 2nd shaft
      -mm
      PN (bar)
      -N/mm²
      l4
      -mm
      Dg (Clamping thread)
      M6
      F ax (Transmissible axial force)
      63
      Minimum required outer hub diameter at Rp0,2-200 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-400 N/mm²
      -mm
      Minimum required outer hub diameter at Rp0,2-300 N/mm²
      -mm
      TA (Locking torque)
      12
      Tmax (Maximum transmissible torque
      1000
      dw solid shaft diameter
      32
      pW (Shaft pressure at given TA)
      312
