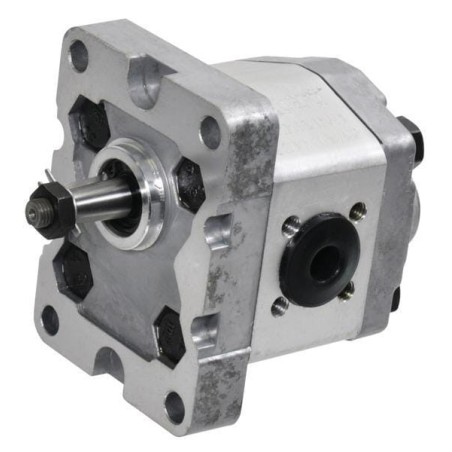

Gear pump Gr1 5cc S C18E - GP105S3030C18EGP

Reference number: GP105S3030C18EGP.

Product parameters:

• Connection: dB
• Connection port to flange distance: 41
• Displacement: 4.8
• Flange and back cover material: Aluminium
• Flange code: E1
• Flange type norm: European, Europejska
• Housing length: 89, 89mm
• Main port size code: 1GQ08
• Material housing: Aluminium
• Max continous working pressure: 160, 160BAR
• Max pressure peak: 2610, 180BAR
• Max rotation speed: 4000, 4000obr/min
• Mounting diameter: 25.4, 25,4mm
• Mounting holes horizontal distance: 52, 52mm
• Mounting holes vertical distance: 72, 72mm
• Number of mounting holes: 4
• Port position: Side, Boczne
• Preferowany kierunek obrotów: W kierunku przeciwnym do ruchu wskazówek zegara
• Pressure port bolts circle diameter: 30, 30mm
• Pressure port size code: 1GQ06
• Pump group code: 1
• Rotation direction: Counter-clockwise (CCW)
• Sealing type: Standard, Standardowe
• Shaft cone size code: 1:8
• Shaft diameter: 9.35, 9,35mm
• Shaft thread diameter: M7
• Shaft thread pitch: 1.00
• Shaft thread type: Metric, Metryczny
• Shaft type: Tapered 1:8, Stożkowy 1:8, Wał stożkowy 1 : 8
• Shaft type code: 81
• Skok gwintu wałka: 1.00mm
• Suction port bolts circle diameter: 30, 30mm
