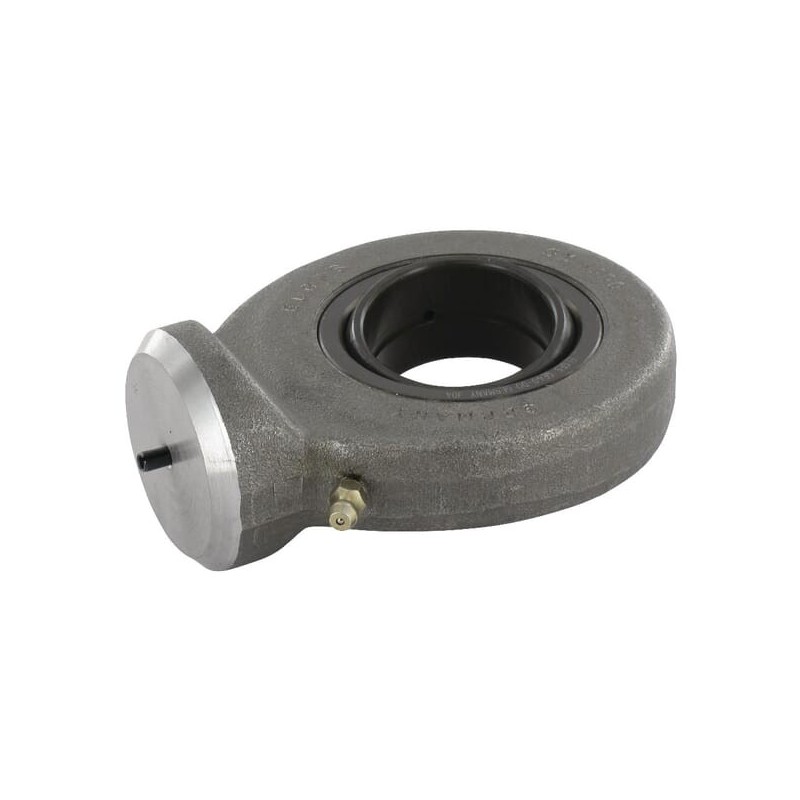

      Ball end - GK30DOINA
      Ball end - GK30DOINA
      Ball end - GK30DOINA
      Ball end - GK30DOINA

      Ball end - GK30DOINA

      Review (0)
      zł273.61
      Tax Included
      Return policy:14
      Ball end - GK30DOINA - Ball outside diameter: 40.7; Basic radial load dynamic: 62300, 62300N.
      Quantity :
      • Polityka bezpieczeństwaPolityka bezpieczeństwa
      • Zasady dostawyZasady dostawy
      • Zasady zwrotuZasady zwrotu

      Ball end - GK30DOINA

      Reference number: GK30DOINA.

      Product parameters:

      • Ball outside diameter: 40.7
      • Basic radial load dynamic: 62300, 62300N
      • Basic radial load static: 95700
      • Bearing inner ring width: 22
      • Bearing outside diameter: 47, 47mm
      • Bore diameter: 30, 30mm
      • Bore length: 22, 22mm
      • Center pin diameter: 4, 4mm
      • Edge angle: 7, 7°
      • Head outside diameter: 73mm, 73
      • Head width (hole length): 19mm, 19
      • Hole centre to bottom distance: 51, 51mm
      • Manufacturer: Schaeffler
      • Original number equivalent: GK30-DO
      • Outside diameter of inner ring: 34.2, 34,2mm
      • Shaft diameter: 40, 40mm
      • Shaft to center distance: 37, 37mm
      • Total height: 87.5, 87,5mm
      • Total length: 87.5, 87,5mm
      • Weight: 0.635, 0,635kg
      INA
      GK30DOINA
      55 Items

      Data sheet

      Manufacturer
      Schaeffler
      Weight
      0,635kg
      0.635
      Total height
      87,5mm
      87.5
      Additional info
      Original number equivalent
      GK30-DO
      Hole length
      22
      22mm
      Total length
      87,5mm
      87.5
      Bore diameter
      30
      30mm
      Bearing outside diameter
      47
      47mm
      Basic radial load static
      95700
      Basic radial load dynamic
      62300
      62300N
      Shaft diameter
      40
      40mm
      Head width (hole length)
      19
      19mm
      Head outside diameter
      73
      73mm
      Outside diameter of inner ring
      34,2mm
      34.2
      Bearing inner ring width
      22
      Hole centre to bottom distance
      51
      51mm
      Ball outside diameter
      40.7
      Edge angle
      7
      7°
      Shaft to center distance
      37
      37mm
      Center pin diameter
      4
      4mm
